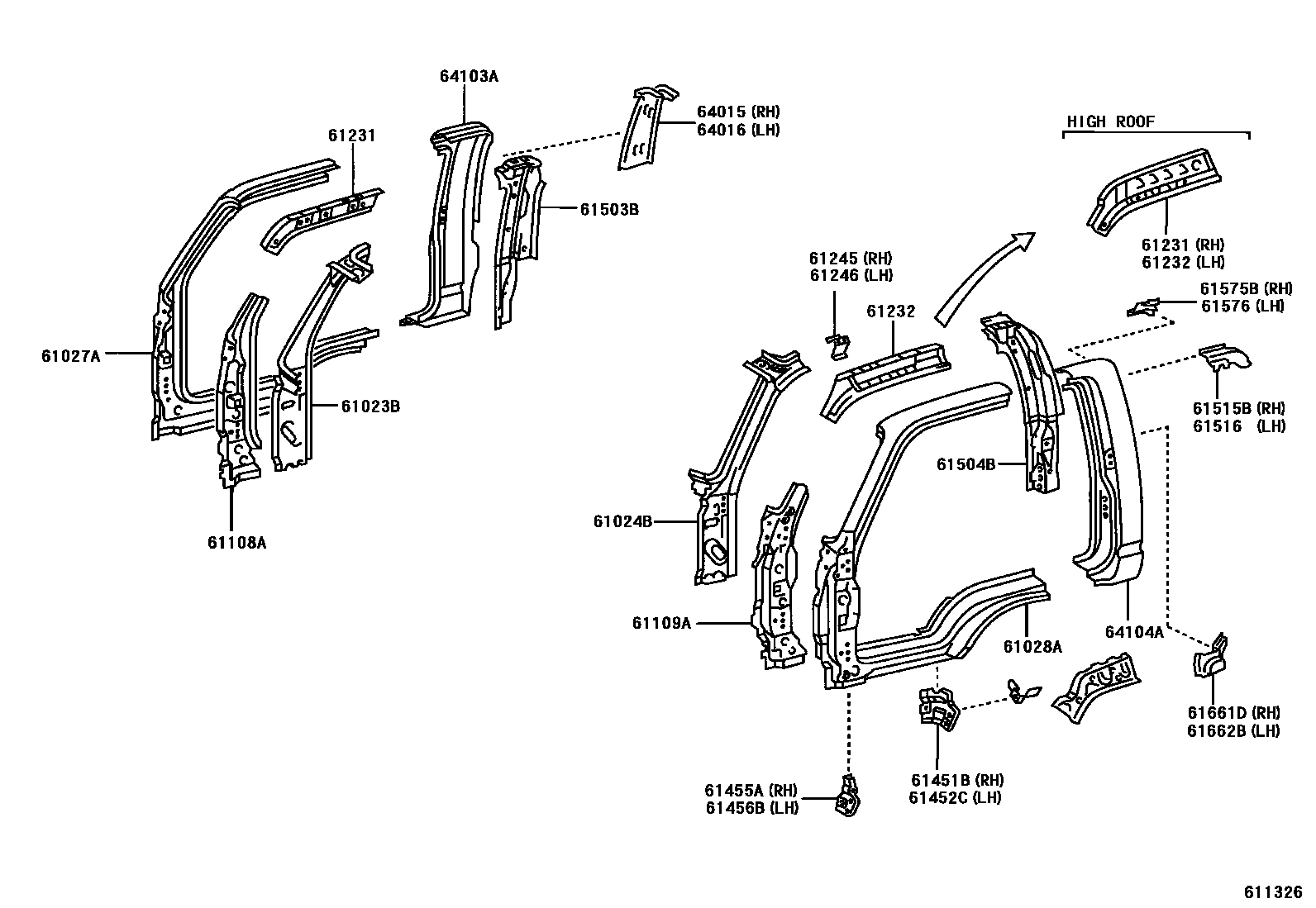

SIDE MEMBER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
W(KEY LESS ENTRY ANTENNA)
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61451BPLATE, STEP, LOWER RH
61452CPLATE, STEP, LOWER LH
61455ARETAINER, FRONT STEP, RH
61456BRETAINER, FRONT STEP, LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61515BEXTENSION, QUARTER LOCK PILLAR, RH
61516EXTENSION, QUARTER LOCK PILLAR, LH
61575BPLATE, CAB REAR PILLAR, UPPER RH
61576PLATE, CAB REAR PILLAR, UPPER LH
61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH
61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH
64015PANEL SUB-ASSY, BACK CORNER, INNER RH
W(TRIM)
64016PANEL SUB-ASSY, BACK CORNER, INNER LH
W(TRIM)
W(TRIM)
64103APANEL SUB-ASSY, BACK CORNER, OUTER RH
64104APANEL SUB-ASSY, BACK CORNER, OUTER LH
26 parts on this diagram · 2 diagrams in section
