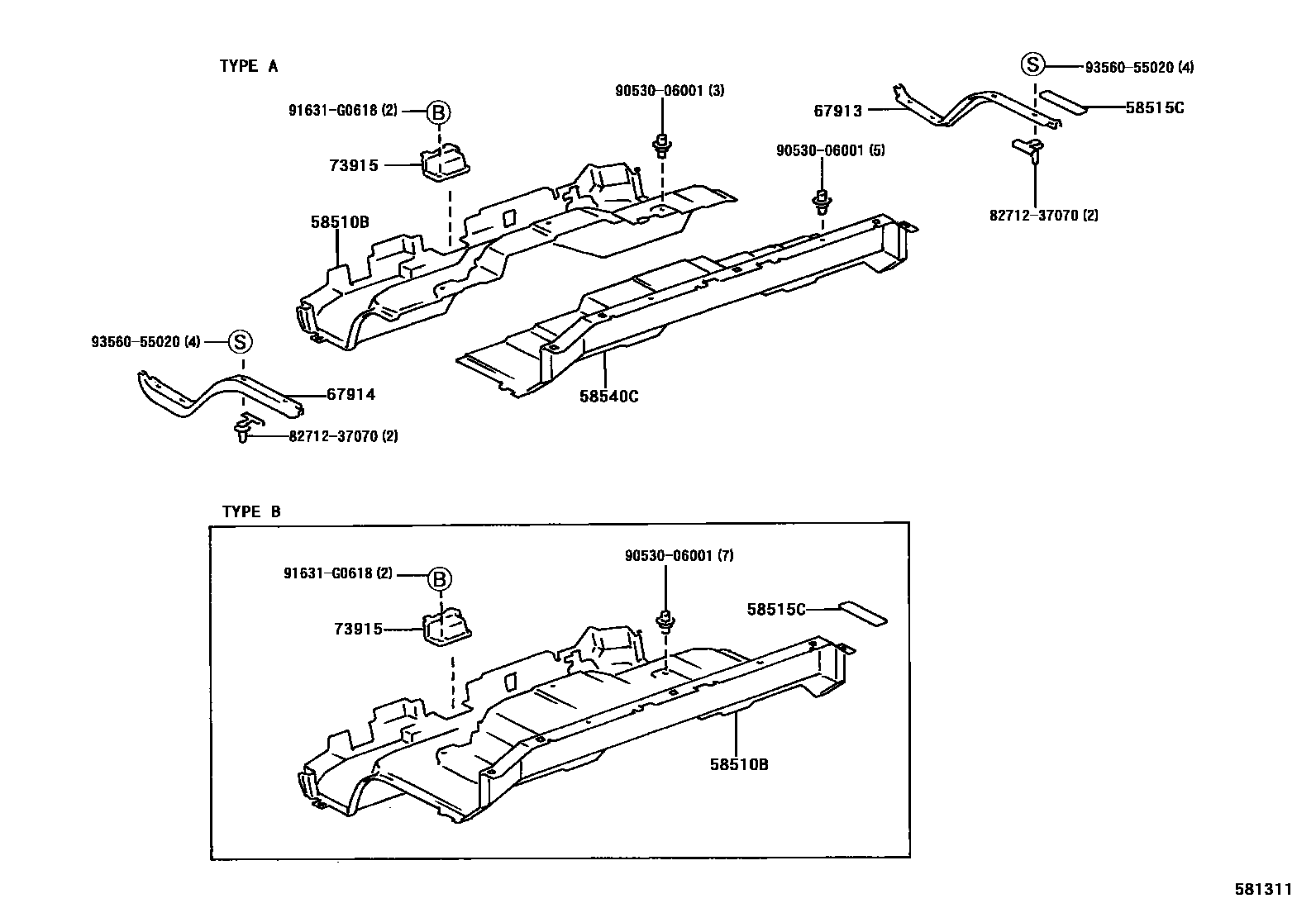

FLOOR MAT & SILENCER PAD
58510BMAT, FRONT FLOOR, FRONT
TYPE A:REFER TO ILLUSTRATION, W(CONSOLE BOX),DARK CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, W(*80 & CONSOLE BOX),DARK CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION, W(CONSOLE BOX),DARK CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION, W(*80 & CONSOLE BOX),DARK CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, W(*80),DARK CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION, W(*80 & INSTRUMENT CLUSTER = WOOD GRAIN),DARK CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION, W(*80),DARK CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION, W(INSTRUMENT CLUSTER = WOOD GRAIN),DARK CHARCOAL,TRIM1#
58515CMAT, FRONT FLOOR, REAR NO.1
MD.CHARCOAL,TRIM1#
58540CMAT ASSY, FLOOR, REAR
W(CONSOLE BOX),DARK CHARCOAL,TRIM1#
DARK CHARCOAL,TRIM1#
67913PLATE, FRONT DOOR SCUFF, RH
MD.CHARCOAL,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
MD.CHARCOAL,TRIM1#
73915COVER, SEAT AIRBAG NO.1, RH
8271237070CLAMP, WIRING HARNESS
main82712-37070
9053006001
main90530-06001
91631G0618
main91631-G0618
9356055020
main93560-55020
10 parts on this diagram · 1 diagram in section
