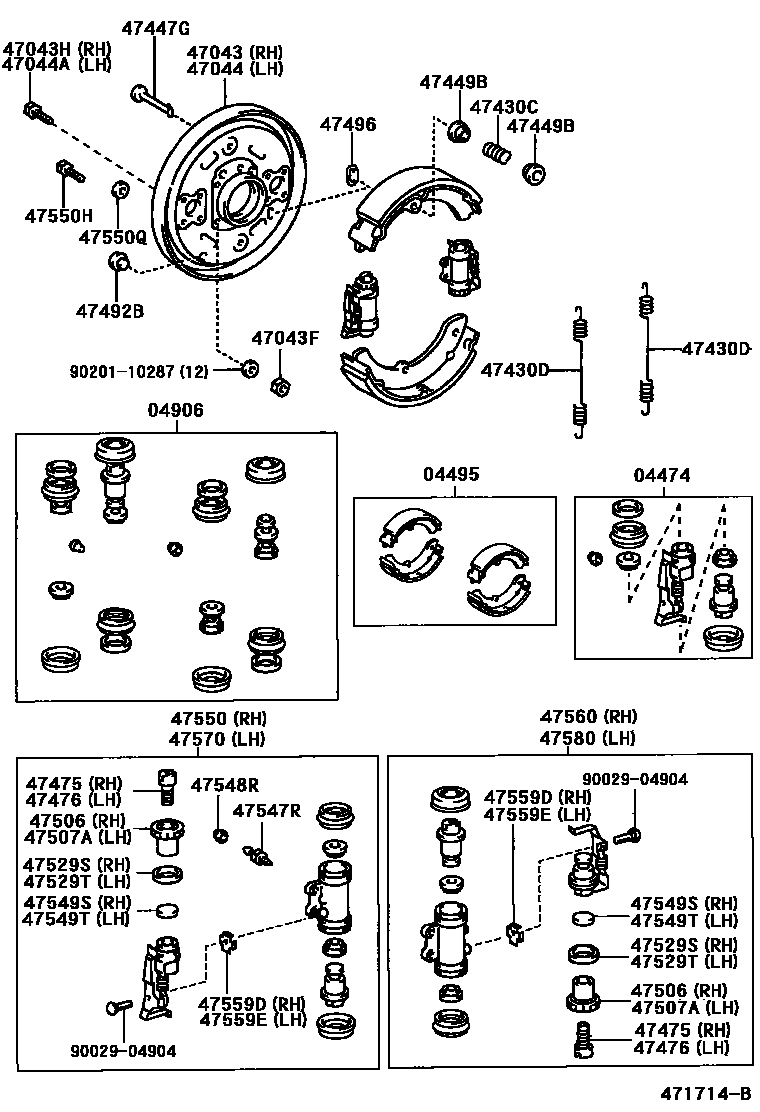

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-36040×2iXZU402,412200010-200206

RH

sub04474-36041

main04474-36050×2iXZU402,412200010-200206

LH

sub04474-36051

main04474-37150×2iXZU410,411,420,430200010-200206

RH

sub04474-37151

main04474-37160×2iXZU410,411,420,430200010-200206

LH

sub04474-37161

04495SHOE KIT, REAR BRAKE

main04494-36210iXZU402,412200010-200203

MARK NBK LN519

sub04494-36290

main04495-37020iXZU410,411,420,430200010-200102

MARK NBK D2160

main04495-37021iXZU410,411,420,430200102-200206

MARK NBK D2160

sub04495-37060

main04495-37040iXZU402,412200203-200206

MARK NBK D9227

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36180iXZU402,412200010-200206

sub04906-36181

main04906-37080iXZU410,411,420,430200010-200206

sub04906-37081

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-37060iXZU402,412200010-200206

main47043-37090iXZU410,411,420,430200010-200102

main47043-37091iXZU410,411,420,430200102-200206

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94130-01002×12iXZU402,412200010-200206

main94130-01441×4iXZU410,411,420,430200010-200206

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90101-14032×4iXZU410,411,420,430200010-200206

main90114-10063×6iXZU402,412200010-200206

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-37060iXZU402,412200010-200206

main47044-37090iXZU410,411,420,430200010-200102

main47044-37091iXZU410,411,420,430200102-200206

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90101-14032×4iXZU410,411,420,430200010-200206

main90114-10063×6iXZU402,412200010-200206

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iXZU402,412200010-200206

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90507-29006×4iXZU402,412200010-200206

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010×4iXZU402,412200010-200206

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iXZU402,412200010-200206

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36070×2iXZU402,412200010-200206

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36070×2iXZU402,412200010-200206

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47491-37090×4iXZU410,411,420,430200107-200206

main47492-28010×4iXZU402,412200010-200206

main47492-37010×4iXZU410,411,420,430200010-200107

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×8iXZU402,412200010-200112

main47491-36020×8iXZU402,412200112-200206

main47491-37040×2iXZU410,411,420,430200010-200107

RH,NO.1

main47491-37050×2iXZU410,411,420,430200010-200107

LH,NO.1

main47491-37090×4iXZU410,411,420,430200107-200206

NO.1

main47496-37020×2iXZU410,411,420,430200010-200206

NO.2

47506NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47506-36020×2iXZU402,412200010-200206

47507ANUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47507-36020×2iXZU402,412200010-200206

47529SSEAL, REAR BRAKE ADJUST NUT DUST, RH

main47529-36010×2iXZU402,412200010-200206

47529TSEAL, REAR BRAKE ADJUST NUT DUST, LH

main47529-36010×2iXZU402,412200010-200206

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020×2iXZU402,412200010-200206

main47547-37130×2iXZU410,411,420,430200010-200206

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iXZU402,41#,420,430200010-200206

47549SSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH

main47549-37091×2iXZU402,412200010-200206

47549TSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH

main47549-37091×2iXZU402,412200010-200206

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-37111iXZU402,412200010-200206

sub47550-37112

main47550-37130iXZU410,411,420,430200010-200206

sub47550-37131

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-10127×16iXZU402,412200010-200206

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-10287×16iXZU402,412200010-200206

47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH

main47559-36010×2iXZU402,412200010-200206

47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH

main47559-36010×2iXZU402,412200010-200206

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-37081iXZU402,412200010-200206

sub47560-37082

main47560-37100iXZU410,411,420,430200010-200206

sub47560-37101

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-37071iXZU402,412200010-200206

sub47570-37072

main47570-37090iXZU410,411,420,430200010-200206

sub47570-37091

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-37071iXZU402,412200010-200206

sub47580-37072

main47580-37090iXZU410,411,420,430200010-200206

sub47580-37091

9002904904

main90029-04904

9020110287

main90201-10287
