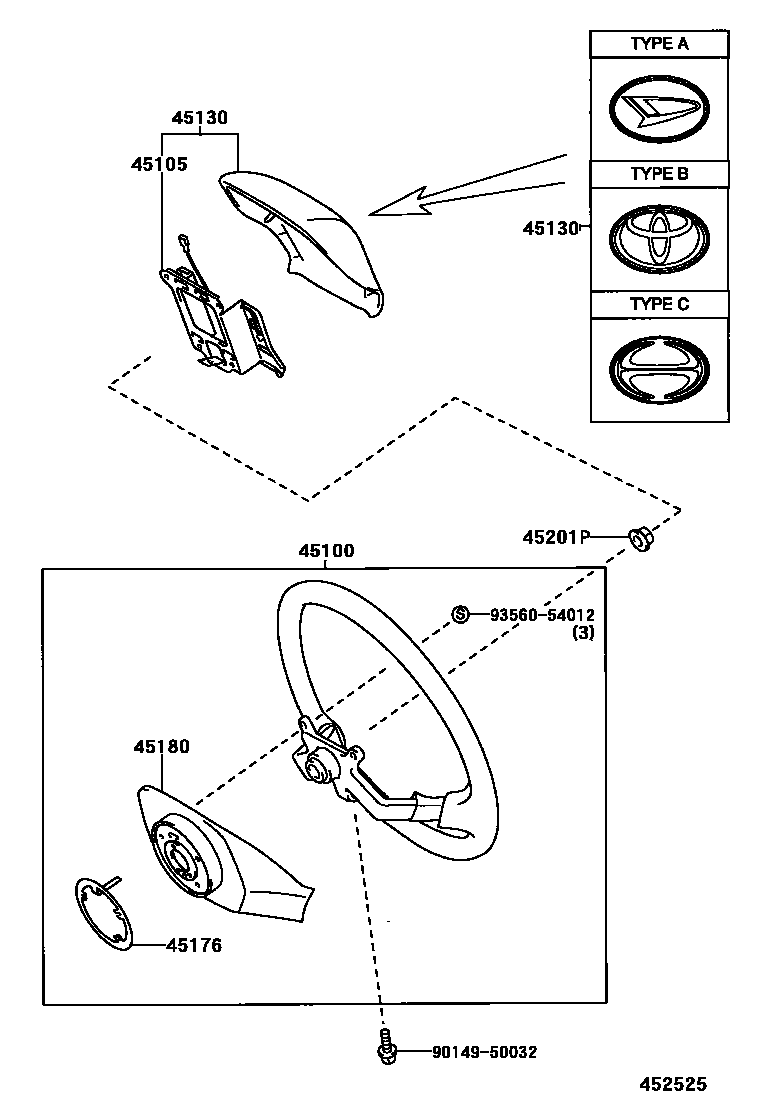

STEERING WHEEL
45100WHEEL ASSY, STEERING
2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#
2-SPOKE,URETHANE,W(*80),MD.CHARCOAL,TRIM1#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45130BUTTON ASSY, HORN
TYPE B:REFER TO ILLUSTRATION, W/O(*80),MD.CHARCOAL,TRIM1#
TYPE C:REFER TO ILLUSTRATION, W/O(*80),MD.CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, W/O(*80),MD.CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, W(*80),MD.CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION, W(*80),MD.CHARCOAL,TRIM1#
TYPE C:REFER TO ILLUSTRATION, W(*80),MD.CHARCOAL,TRIM1#
45176RING, HORN CONTACT
45180COVER SUB-ASSY, STEERING WHEEL
MD.CHARCOAL,TRIM1#
45201PNUT, STEERING WHEEL SET
9014950032
main90149-50032
9356054012
main93560-54012
8 parts on this diagram · 2 diagrams in section
