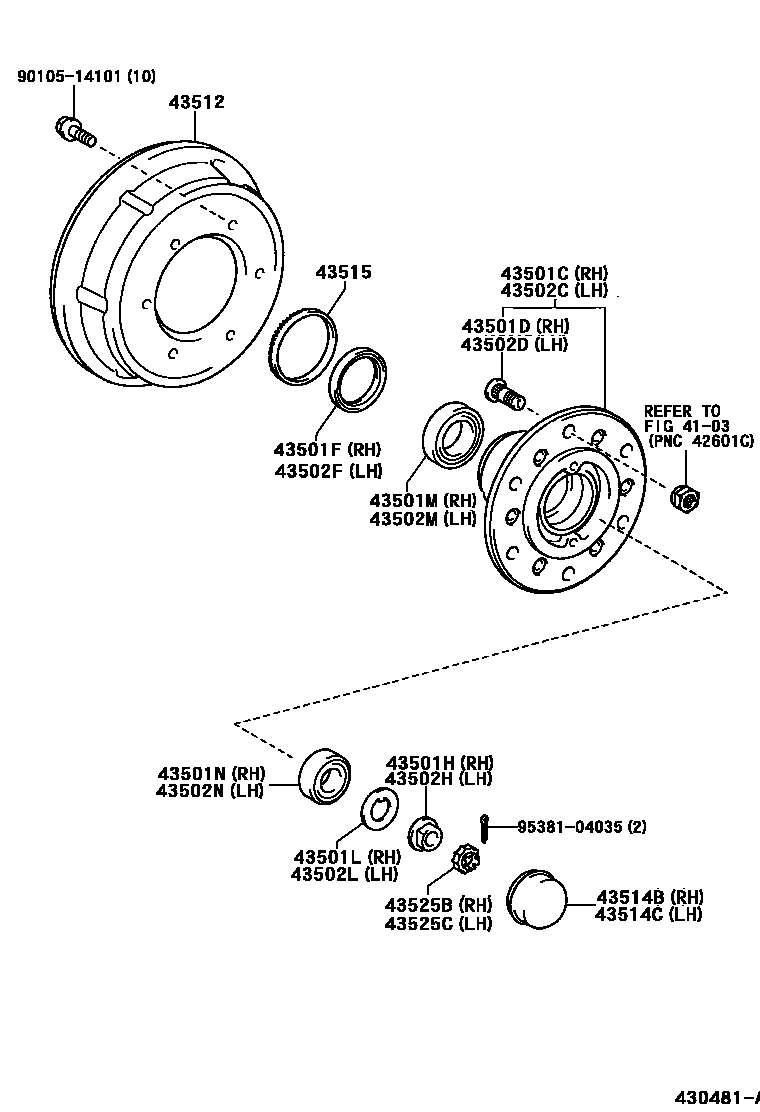

FRONT AXLE HUB
4103
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
43512DISC, FRONT
sub43512-37091
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43515ROTOR, SKID CONTROL, FRONT
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9010514101
main90105-14101
9538104035
main95381-04035
23 parts on this diagram · 2 diagrams in section
