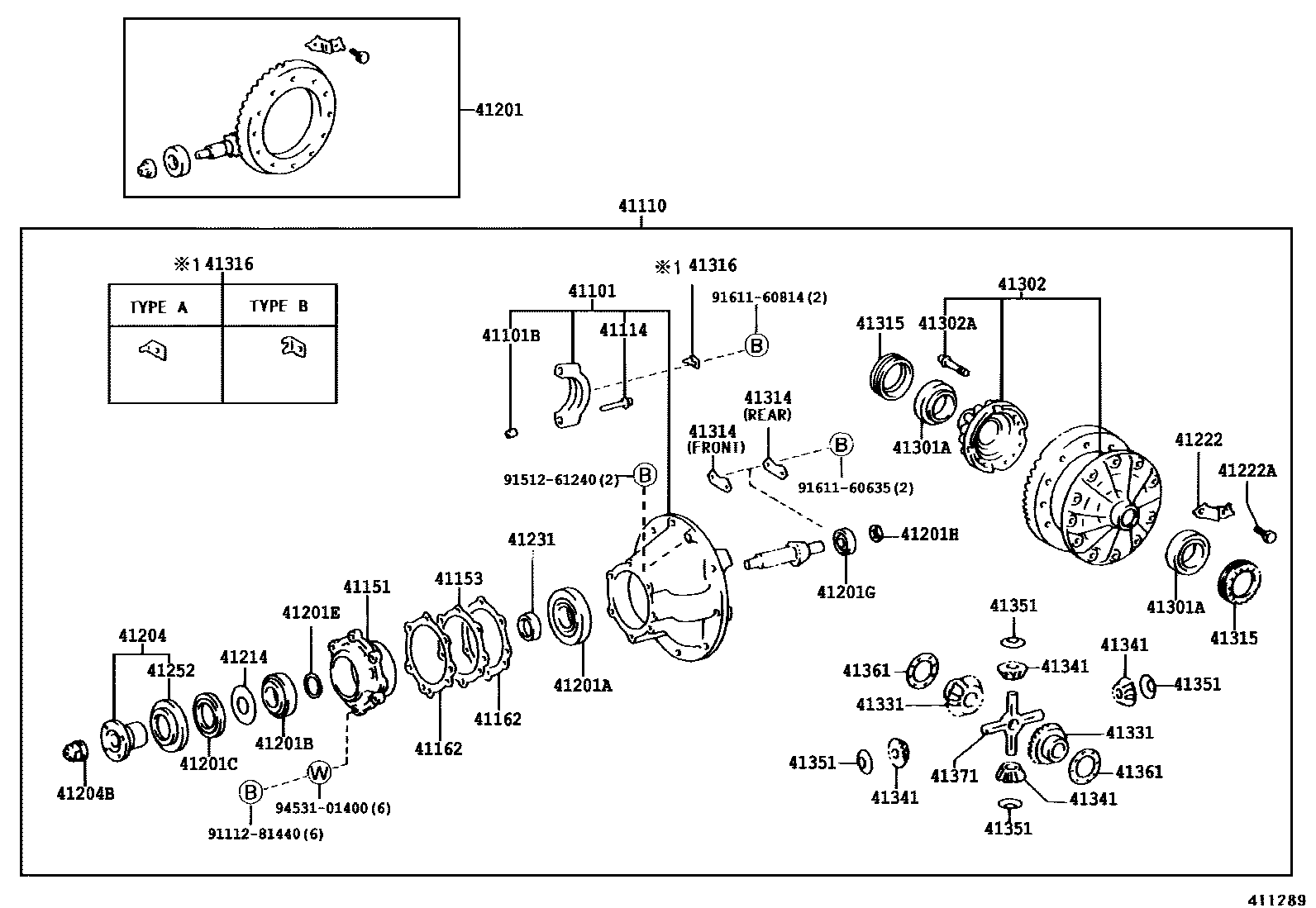

REAR AXLE HOUSING & DIFFERENTIAL
41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:7=5.857
*FGR=45:7=6.428
41151CAGE, DIFFERENTIAL DRIVE PINION BEARING
41153SHIM, DIFFERENTIAL DRIVE PINION CAGE
T=0.10
T=0.15
T=0.25
T=0.45
T=0.30
T=0.40
T=0.45
T=0.50
T=0.30
T=0.40
T=0.45
T=0.50
41162GASKET, DIFFERENTIAL DRIVE PINION COVER
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=45:7=6.428
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=2.00
T=2.10
T=2.20
T=2.30
T=2.40
T=2.50
T=2.60
T=2.70
T=2.80
T=2.90
T=3.00
T=3.10
T=3.20
T=3.30
T=1.81
T=1.83
T=1.85
T=1.87
T=1.89
41201GBEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER
41201HRING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
T=13.975
T=14.000
T=14.025
T=14.050
T=14.075
T=14.100
T=14.125
T=14.150
T=14.175
T=14.200
T=14.225
T=14.250
T=14.275
T=14.300
T=14.325
T=14.350
T=14.375
T=13.900
T=13.925
T=13.950
T=13.900
T=13.925
T=13.950
T=13.975
T=14.000
T=14.025
T=14.050
T=14.075
T=14.100
T=14.125
T=14.150
T=14.175
T=14.200
T=14.225
T=14.250
T=14.275
T=14.300
T=14.325
T=14.350
T=14.375
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41314RETAINER, DRIVE PINION BEARING
FRONT
REAR
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
41341PINION, REAR DIFFERENTIAL
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.4
T=1.5
T=1.6
T=1.7
T=2.0
41371SPIDER, REAR DIFFERENTIAL
9111281440
main91112-81440
9151261240
main91512-61240
9161160635
main91611-60635
9161160814
main91611-60814
9453101400
main94531-01400
37 parts on this diagram · 4 diagrams in section
