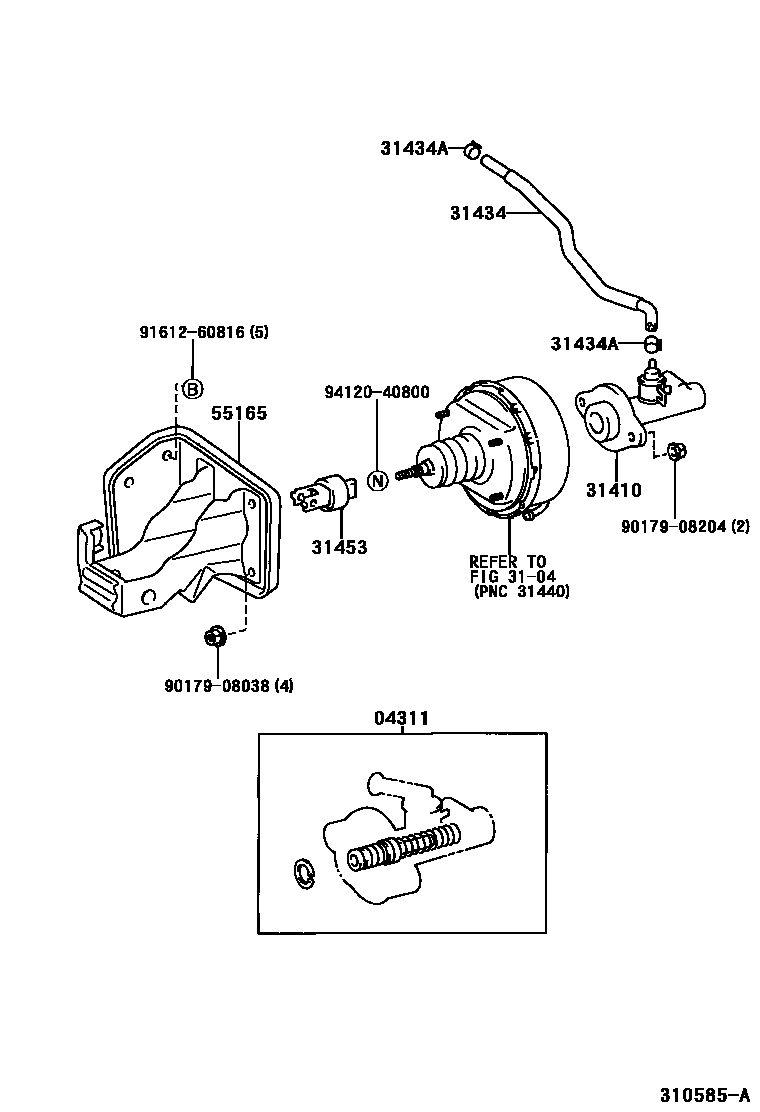

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-36111iXZU402,41#,420,430..MTM200010-200206

3104

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36060iXZU402,41#,420,430..MTM200010-200206

sub31401-36061

31434TUBE, CLUTCH RESERVOIR

main31434-37120iXZU402,41#,420,430..MTM200010-200206

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41300×2iXZU402,41#,420,430..MTM200010-200206

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iXZU402,41#,420,430..MTM200010-200206

55165SUPPORT, CLUTCH MASTER CYLINDER

main55105-37051iXZU402,41#,420,430..MTM200010-200206

9017908038

main90179-08038

9017908204

main90179-08204

9161260816

main91612-60816

9412040800

main94120-40800

11 parts on this diagram · 1 diagram in section
