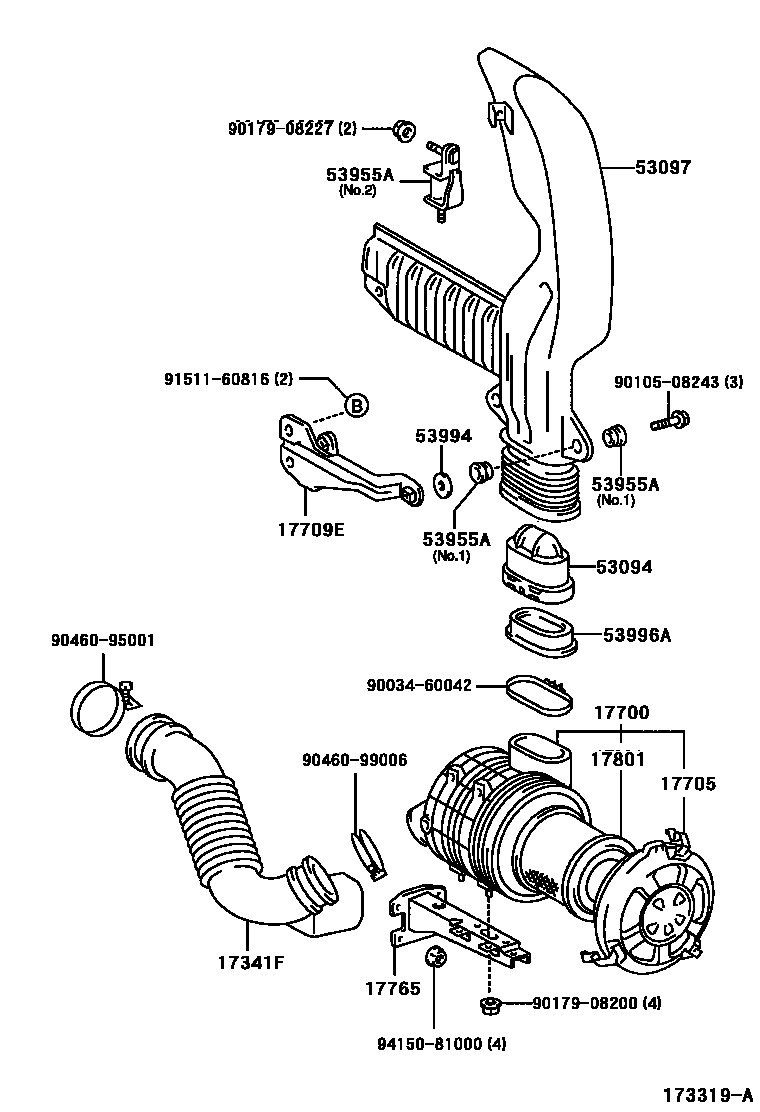

AIR CLEANER

17341FHOSE, AIR, NO.1

main17030-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

17700CLEANER ASSY, AIR

main17700-78061iJ05C,S05#..XZU402,41#,420,430200010-200206

17705CAP SUB-ASSY, AIR CLEANER

main17705-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

17709EBRACKET, AIR CLEANER INLET, NO.2

main53773-37080iJ05C,S05#..XZU402,41#,420,430200010-200206

17765STAY, AIR CLEANER, NO.1

main17706-78030iJ05C,S05#..XZU402,41#,420,430200010-200204

main17706-78130iJ05C,S05#..XZU402,41#,420,430200204-200206

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

53094INLET, AIR CLEANER PIPE, NO.3

main53094-37010iXZU402,41#,420,430200010-200206

53097INLET SUB-ASSY

main53097-37240iXZU402,41#,420,430200010-200206

53955ACUSHION, AIR CLEANER INLET NO.1

main53955-37020×6iXZU402,41#,420,430200010-200206

NO.1

main53955-37040iXZU402,41#,420,430200010-200206

NO.2

53994RETAINER, AIR CLEANER INLET PIPE

main53994-37020×3iXZU402,41#,420,430200010-200206

53996APACKING, AIR CLEANER INLET PIPE

main53996-37040iXZU402,41#,420,430200010-200206

9003460042

main90034-60042

9010508243

main90105-08243

9017908200

main90179-08200

9017908227

main90179-08227

9046095001

main90460-95001

9046099006

main90460-99006

9151160816

main91511-60816

9415081000

main94150-81000

19 parts on this diagram · 1 diagram in section
