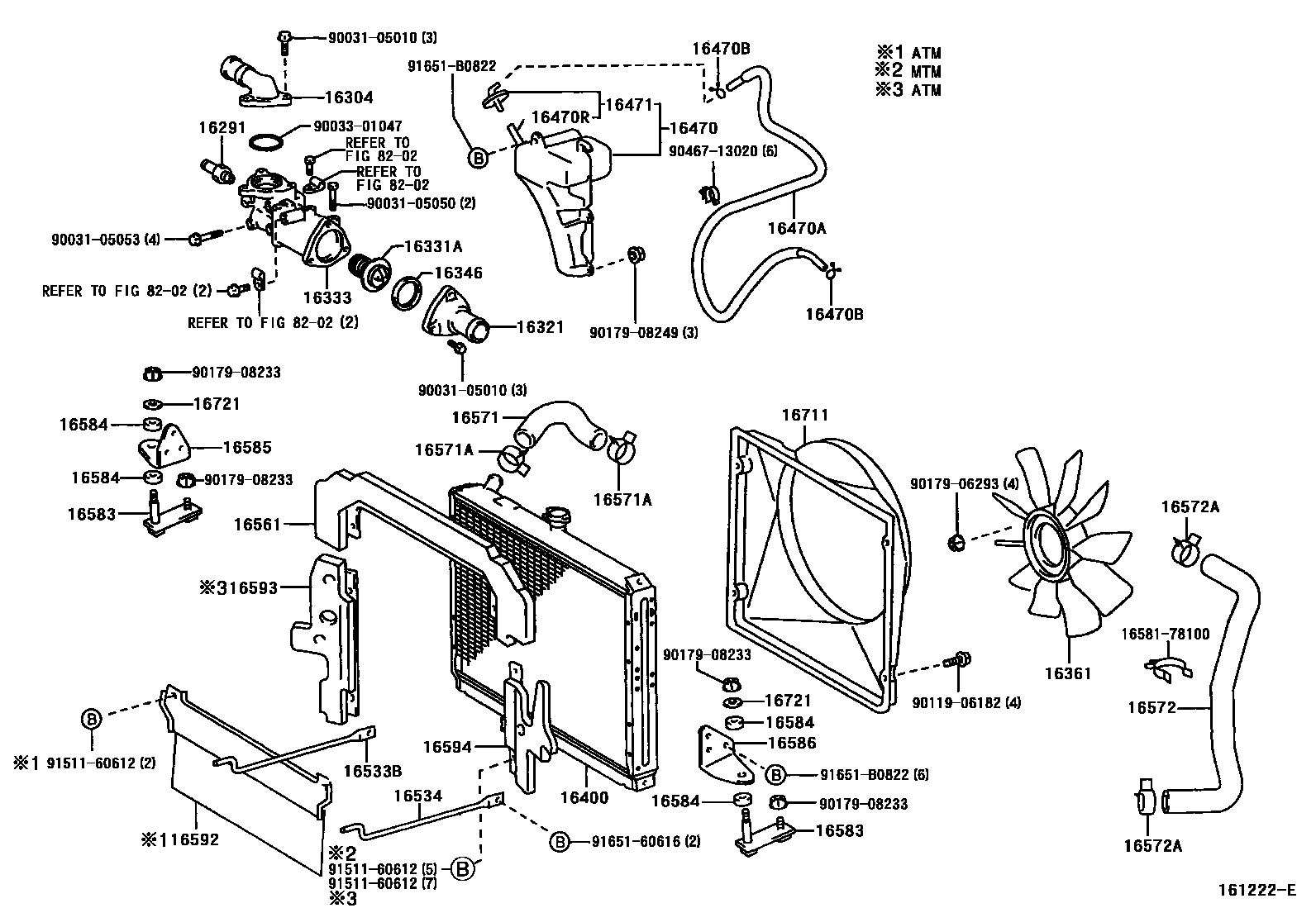

RADIATOR & WATER OUTLET

0001 1 0002 1

16291JOINT, WATER HOSE

main16291-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

sub87251-37050

16304OUTLET SUB-ASSY, WATER

main16304-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

16321INLET, WATER

main16321-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1632-31911

16331ATHERMOSTAT

main90038-33010iJ05C,S05#..XZU402,41#,420,430200010-200206

*WAX 76.5-90

sub90038-33017

16333HOUSING, WATER OUTLET

main16333-78021iJ05C..XZU410,420,430200010-200206

subS1632-13212

main16333-78031iS05#..XZU402,411,412200010-200206

sub16333-78032

16346GASKET, THERMOSTAT

main16346-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1632-51390

16361FAN

main16361-78030iJ05C,S05D..XZU410,411,420,430200010-200206

main16361-78050iS05C..XZU402,412200010-200206

16400RADIATOR ASSY

main16400-78100iJ05C,S05#..XZU402,41#,420,430..MTM200010-200206

sub16400-78101

main16400-78110iS05D..XZU411..ATM200010-200206

sub16400-78111

16470TANK ASSY, RADIATOR RESERVE

main16470-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16567-78070iJ05C,S05#..XZU402,41#,420,430200010-200206

L=1690

sub16567-78570

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iJ05C,S05#..XZU402,41#,420,430200010-200206

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078iJ05C,S05#..XZU402,41#,420,430200010-200206

L=315

16471CAP SUB-ASSY, RESERVE TANK

main16405-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

16533BSUPPORT, RADIATOR, NO.1

main16533-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

sub16533-78031

16534SUPPORT, RADIATOR, NO.2

main16534-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

sub16534-78031

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

16571HOSE, RADIATOR, INLET

main16571-78080iJ05C..XZU410,420,430200010-200206

main16571-78090iS05#..XZU402,411,412200010-200206

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main16581-78050iJ05C,S05#..XZU402,41#,420,430200010-200206

16572HOSE, RADIATOR, OUTLET

main16572-78060iJ05C..XZU410,420,430200010-200206

main16572-78070iS05#..XZU402,411,412200010-200206

sub16572-78071

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main16581-78050iJ05C,S05#..XZU402,41#,420,430200010-200206

16583BRACKET, RADIATOR, NO.2

main16583-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

16584INSULATOR, RADIATOR MOUNTING

main16584-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

16585BRACKET, RADIATOR, NO.3

main16585-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

16586BRACKET, RADIATOR, NO.4

main16586-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

16592GUIDE, RADIATOR AIR, NO.3

main16592-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

sub16592-78090

16593GUIDE, RADIATOR AIR, NO.1

main16593-78040iJ05C,S05#..XZU402,41#,420,430200010-200206

sub16593-78041

16594GUIDE, RADIATOR AIR, NO.2

main16594-78040iJ05C,S05#..XZU402,41#,420,430200010-200206

sub16594-78041

16711SHROUD, FAN

main16711-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

16721PLATE, HOLDER

main16721-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

8202

1658178100CLAMP, HOSE(FOR WATER HOSE)

main16581-78100

9003105010

main90031-05010

9003105050

main90031-05050

9003105053

main90031-05053

9003301047

main90033-01047

9011906182

main90119-06182

9017906293

main90179-06293

9017908233

main90179-08233

9017908249

main90179-08249

9046713020

main90467-13020

9151160612

main91511-60612

9165160616

main91651-60616

91651B0822

main91651-B0822

43 parts on this diagram · 2 diagrams in section
