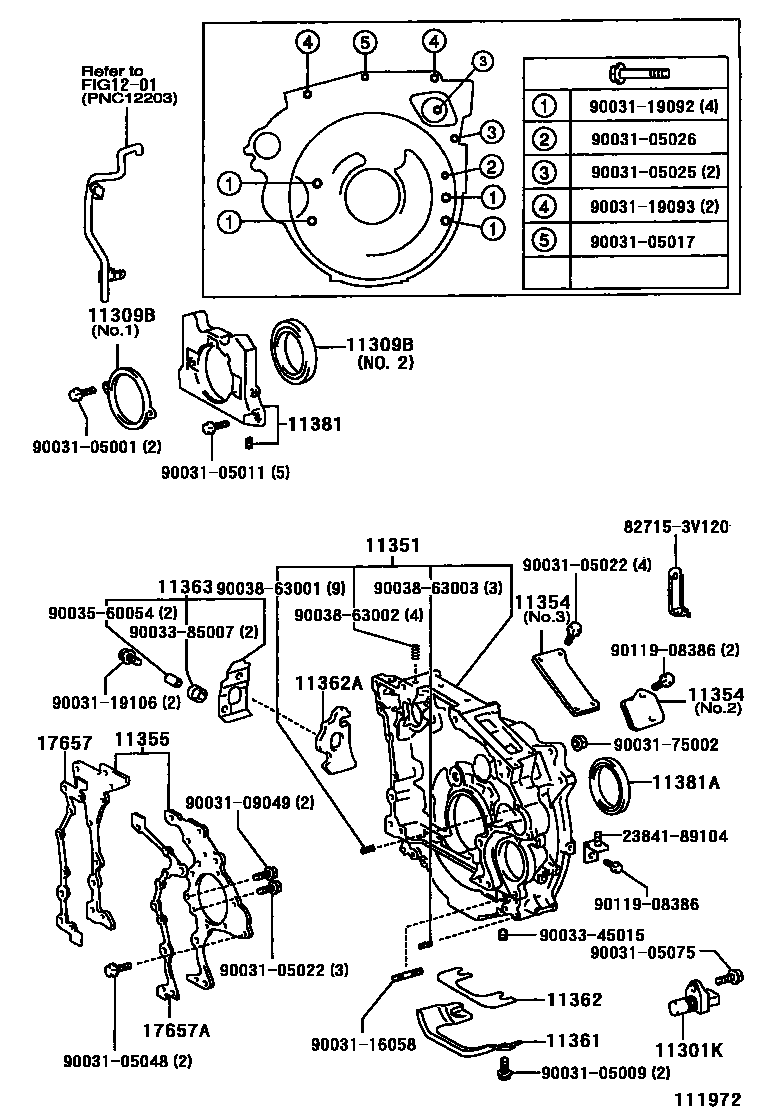

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301KSENSOR, CRANK POSITION

main19311-78010iJ05C..XZU410,420,430200010-200206

main19311-78020iS05#..XZU402,411,412200010-200206

11309BSEAL(FOR OIL SEAL RETAINER)

main11551-89101iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.1

main90033-19008iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.2

11351HOUSING, FLYWHEEL

main11308-78120iS05D..XZU411..ATM200010-200206

main11308-78130iS05#..XZU402,411,412..MTM200010-200206

main11308-78140iJ05C..XZU410,420,430200010-200206

11354SEAL, FLYWHEEL HOUSING DUST

main11354-78030iS05D..XZU411..ATM200010-200206

NO.1

main11354-89101iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.2

main11354-89102iJ05C..XZU410,420,430200010-200206

NO.3

11355PLATE, REAR END

main11305-78010iS05#..XZU402,411,412200010-200206

main11355-78010iJ05C..XZU410,420,430200010-200206

11361COVER, FLYWHEEL HOUSING UNDER

main11361-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

11362INSULATOR, FLYWHEEL HOUSING(FOR UNDER COVER)

main11362-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

11362AINSULATOR, FLYWHEEL HOUSING(FOR SIDE COVER)

main11362-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

11363COVER, FLYWHEEL SIDE

main11360-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

11381RETAINER, ENGINE REAR OIL SEAL

main11309-89101iJ05C,S05#..XZU402,41#,420,430200010-200206

11381ASEAL, ENGINE REAR OIL

main90033-19007iJ05C,S05#..XZU402,41#,420,430200010-200206

1201VENTILATION HOSE

→ Go to FIG 12-01

17657GASKET, REAR PLATE

main17657-78040iS05#..XZU402,411,412200010-200206

main17657-89101iJ05C..XZU410,420,430200010-200206

17657AGASKET, REAR PLATE, NO.2

main17657-78030iS05#..XZU402,411,412200010-200206

main17657-89102iJ05C..XZU410,420,430200010-200206

2384189104CLAMP, FUEL PIPE(HOSE), NO.1

main23841-89104

827153V120BRACKET,WIRING HARNESS CLAMP

main82715-3V120

9003105001

main90031-05001

9003105009

main90031-05009

9003105011

main90031-05011

9003105017

main90031-05017

9003105022

main90031-05022

9003105025

main90031-05025

9003105026

main90031-05026

9003105048

main90031-05048

9003105075

main90031-05075

9003109049

main90031-09049

9003116058

main90031-16058

9003119092

main90031-19092

9003119093

main90031-19093

9003119106

main90031-19106

9003175002

main90031-75002

9003345015

main90033-45015

9003385007

main90033-85007

9003560054

main90035-60054

9003863001

main90038-63001

9003863002

main90038-63002

9003863003

main90038-63003

9011908386

main90119-08386

38 parts on this diagram · 3 diagrams in section
