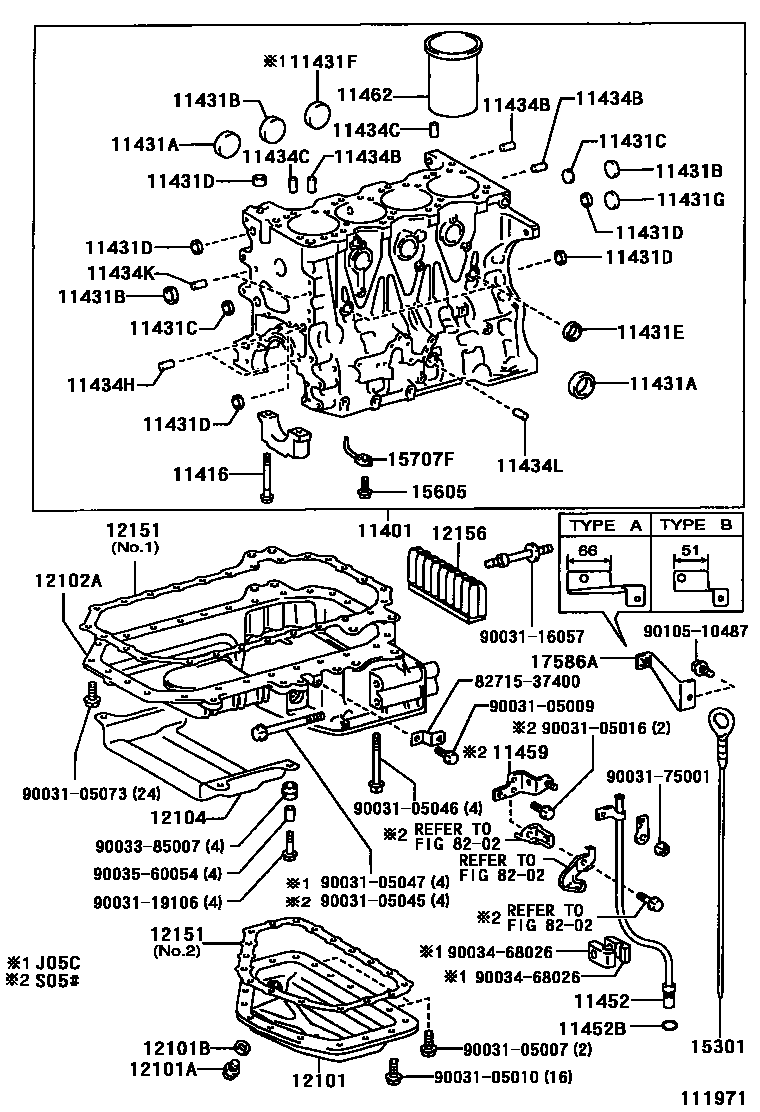

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-78020iJ05C..XZU410,420,430200010-200109

main11401-78030iS05C..XZU402,412200010-200201

main11401-78031iS05C..XZU402,412200201-200206

main11401-78040iS05D..XZU411200010-200201

main11401-78041iS05D..XZU411200201-200206

main11401-78070iJ05C..XZU410,420,430200109-200201

main11401-78071iJ05C..XZU410,420,430200201-200206

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90031-09052iJ05C,S05#..XZU402,41#,420,430200010-200206

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90033-31026iS05#..XZU402,411,412200010-200206

main90331-50002iJ05C..XZU410,420,430200010-200109

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90033-31019iJ05C..XZU410,420,430200010-200109

main90033-31027iS05#..XZU402,411,412200010-200206

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90033-31018iJ05C..XZU410,420,430200010-200109

main90033-31021iS05#..XZU402,411,412200010-200206

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90033-31016iJ05C..XZU410,420,430200010-200109

main90033-31020iS05#..XZU402,411,412200010-200206

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90033-31025iJ05C,S05#..XZU402,41#,420,430200010-200206

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main90033-31026iJ05C..XZU410,420,430200109-200206

main90331-50002iJ05C..XZU410,420,430200010-200109

11431GPLUG, TIGHT

main90033-31019iJ05C..XZU410,420,430200010-200109

main90033-31025iS05#..XZU402,411,412200010-200206

main90033-31027iJ05C..XZU410,420,430200109-200206

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08015iS05D..XZU411200010-200206

L=24,OD=8

main90250-08016iJ05C,S05#..XZU402,41#,420,430200010-200206

L=16,OD=8

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08016iJ05C,S05#..XZU402,41#,420,430200010-200206

L=16,OD=8

11434HPIN, RING (FOR TIMING BELT COVER SET)

main90250-08016iJ05C,S05#..XZU402,41#,420,430200010-200206

11434KPIN, STRAIGHT(FOR WATER PUMP)

main90250-08016iJ05C,S05#..XZU402,41#,420,430200010-200206

11434LPIN, STRAIGHT(FOR ENGINE MOUNTING)

main90250-08015iJ05C,S05C..XZU402,410,412,420,430200010-200206

11452GUIDE, OIL LEVEL GAGE

main11452-78020iJ05C..XZU410,420,430200010-200206

main11452-78050iS05#..XZU402,411,412200010-200206

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90033-01058iJ05C,S05#..XZU402,41#,420,430200010-200206

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-78020iS05#..XZU402,411,412200010-200206

11462LINER, CYLINDER

main11461-78060iJ05C..XZU410,420,430200010-200206

MARK A

main11461-78070iJ05C..XZU410,420,430200010-200206

MARK B

main11461-78080iJ05C..XZU410,420,430200010-200206

MARK C

main11461-78090iS05#..XZU402,411,412200010-200206

MARK A

main11461-78100iS05#..XZU402,411,412200010-200206

MARK B

main11461-78110iS05#..XZU402,411,412200010-200206

MARK C

12101PAN SUB-ASSY, OIL

main12101-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

12101APLUG(FOR OIL PAN DRAIN)

main90033-41020iJ05C,S05#..XZU402,41#,420,430200010-200206

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90202-18002iJ05C,S05#..XZU402,41#,420,430200010-200206

12102APAN SUB-ASSY, OIL, NO.2

main12111-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

12104COVER SUB-ASSY, OIL PAN, NO.1

main12104-78011iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.1

12151GASKET, OIL PAN

main12151-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.1

main12151-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.2

12156INSULATOR, OIL PAN

main12156-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

15301GAGE SUB-ASSY, OIL LEVEL

main15301-78020iJ05C..XZU410,420,430200010-200206

main15301-78040iS05#..XZU402,411,412200010-200206

15605VALVE SUB-ASSY, OIL CHECK

main15703-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

15707FPIPE SUB-ASSY, OIL

main15707-78010iS05#..XZU402,411,412200010-200206

main15707-89103iJ05C..XZU410,420,430200010-200206

17586ABRACKET, HEAT INSULATOR

main17586-78010iJ05C..XZU410,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

main17586-78020iS05#..XZU402,411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

8202WIRING & CLAMP

→ Go to FIG 82-02

8271537400BRACKET,WIRING HARNESS CLAMP

main82715-37400

9003105007

main90031-05007

9003105009

main90031-05009

9003105010

main90031-05010

9003105016

main90031-05016

9003105045

main90031-05045

9003105046

main90031-05046

9003105047

main90031-05047

9003105073

main90031-05073

9003116057

main90031-16057

9003119106

main90031-19106

9003175001

main90031-75001

9003385007

main90033-85007

9003468026

main90034-68026

9003560054

main90035-60054

9010510487

main90105-10487

46 parts on this diagram · 2 diagrams in section
