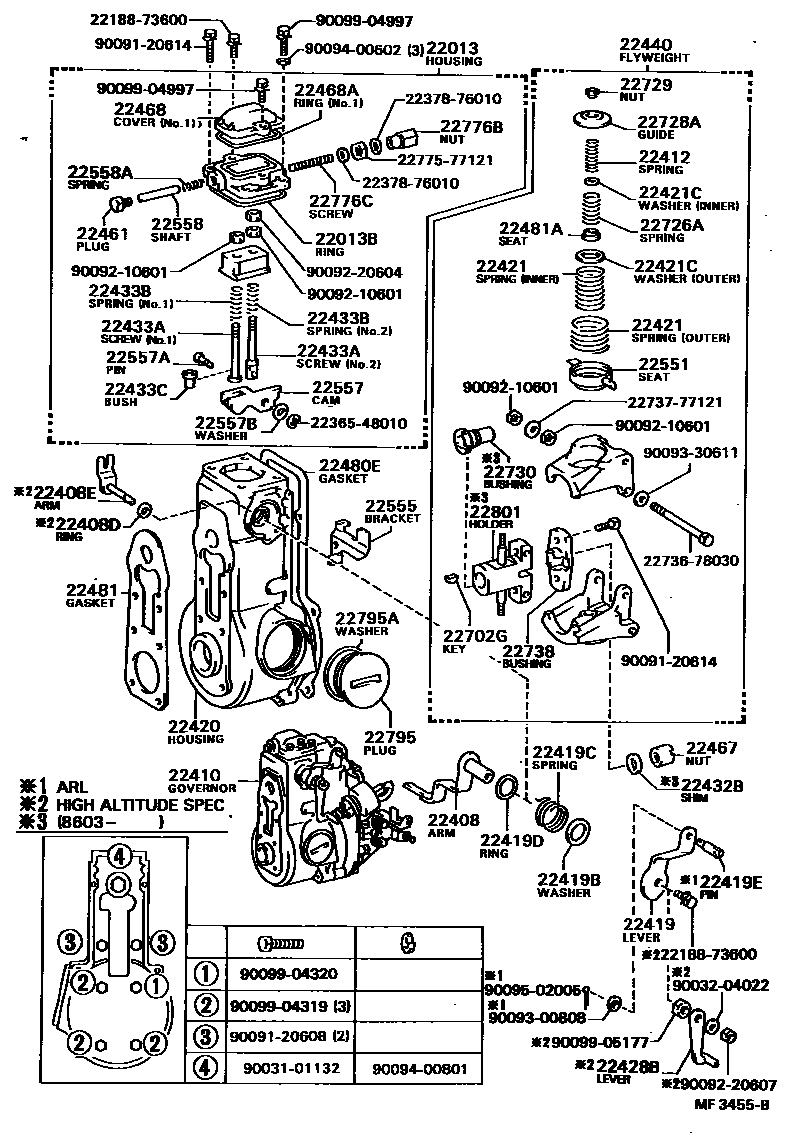

MECHANICAL GOVERNOR
22013HOUSING SUB-ASSY, FULLROAD STOPPER
HIGH ALTITUDE SPEC
22013BRING, O(FOR FULLROAD STOPPER HOUSING)
HIGH ALTITUDE SPEC
22408ARM, STOPPER
HIGH ALTITUDE SPEC
22408DRING, O(FOR ARM SUB-ASSY)
HIGH ALTITUDE SPEC
22408EARM SUB-ASSY(FOR PNEUMATIC BELLOWS)
HIGH ALTITUDE SPEC
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
22412SPRING, MECHANICAL GOVERNOR
22419LEVER, STOP
HIGH ALTITUDE SPEC
22419BWASHER, PLATE(FOR STOPPER LEVER)
T=0.6,HIGH ALTITUDE SPEC,T=0.6
T=0.7,HIGH ALTITUDE SPEC,T=0.7
T=1.0,HIGH ALTITUDE SPEC,T=1.0
T=0.20,T=0.2
T=0.50,OD=16,HIGH ALTITUDE SPEC,T=0.5
T=0.50,T=0.5
T=0.10,T=0.1
22419CSPRING, RETURN(FOR STOPPER LEVER)
22419DRING, O(FOR STOPPER LEVER)
HIGH ALTITUDE SPEC
22419EPIN, CONNECTOR(FOR STOPPER LEVER)
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
HIGH ALTITUDE SPEC
22421SPRING, IDLING
OUTER
INNER
22421CWASHER, IDLING SPRING
T=1.00,OUTER
T=1.00,INNER
T=0.20,OUTER,T=0.2
T=0.40,OUTER,T=0.4
T=0.60,OUTER,T=0.6
T=0.40,INNER,T=0.4
T=0.60,INNER,T=0.6
22428BLEVER ASSY(FOR PNEUMATIC BELLOWS)
HIGH ALTITUDE SPEC
22432BSHIM
T=1.60,T=1.60
T=1.65,T=1.65
T=1.70,T=1.70
T=1.75,T=1.75
T=1.80,T=1.80
T=1.85,T=1.85
T=1.90,T=1.90
T=1.95,T=1.95
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
NO.1,HIGH ALTITUDE SPEC
NO.2,HIGH ALTITUDE SPEC
NO.1
NO.2
22433BSPRING(FOR ADAPTER SCREW)
NO.1
NO.2
22433CBUSH(FOR ADAPTER SCREW)
22461PLUG, SCREW
HOUSING SIDE
LEVER SIDE
22468COVER, PLATE
NO.1,HIGH ALTITUDE SPEC
NO.2
NO.1
22468AO, RING
NO.1,HIGH ALTITUDE SPEC
NO.1
NO.2
22480EGASKET, GOVERNOR COVER
HIGH ALTITUDE SPEC
22481GASKET
22481ASEAT, SPRING, INNER
22551SEAT, SPRING(FOR FLYWEIGHT)
22555BRACKET, STOPPER
22557APIN, CONNECTING(FOR FULL STOP CAM)
22557BWASHER, PLATE(FOR CONNECTING PIN)
T=0.20,T=0.20
T=0.05,T=0.05
T=0.10,T=0.10
22558SHAFT, SLIDING BLOCK
22558ASPRING(FOR SLIDING BLOCK SHAFT)
HIGH ALTITUDE SPEC
22702LEVER ASSY, FLOATING
22702GKEY, WOODRUFF(FOR FROATING LEVER)
22726ASPRING, SPEED CONTROL
22728AGUIDE, SPRING
22729NUT, ADJUSTING(FOR FLYWEIGHT)
22730BUSHING ASSY, CAMSHAFT
22738BUSHING, GUIDE(FOR FLYWEIGHT)
22776BNUT, CAP(FOR SCREW STOPPER)
22776CSCREW, STOPPER
HIGH ALTITUDE SPEC
GOVERNOR COVER SIDE
FULLROAD STOPPER HOUSING SIDE
22795PLUG, SCREW
22795AWASHER, SCREW PLUG
HOUSING SIDE,W/HAC
22801HOLDER SUB-ASSY, FLYWEIGHT
2218873600
main22188-73600
2236548010RING, E(FOR INJECTION PUMP LEVER)
main22365-48010
2237876010WASHER, DRAIN SCREW
main22378-76010
2273678030BOLT, BELLCRANK
main22736-78030
2273777121
main22737-77121
2277577121NUT, LOCK(FOR INJECTION PUMP)
main22775-77121
9003101132
main90031-01132
9003204022
main90032-04022
9009120608
main90091-20608
9009120614
main90091-20614
9009210601
main90092-10601
9009220604
main90092-20604
9009220607
main90092-20607
9009300808
main90093-00808
9009330611
main90093-30611
9009400602
main90094-00602
9009400801
main90094-00801
9009502005
main90095-02005
9009904319
main90099-04319
9009904320
main90099-04320
9009904997
main90099-04997
9009905177
main90099-05177
69 parts on this diagram · 2 diagrams in section
