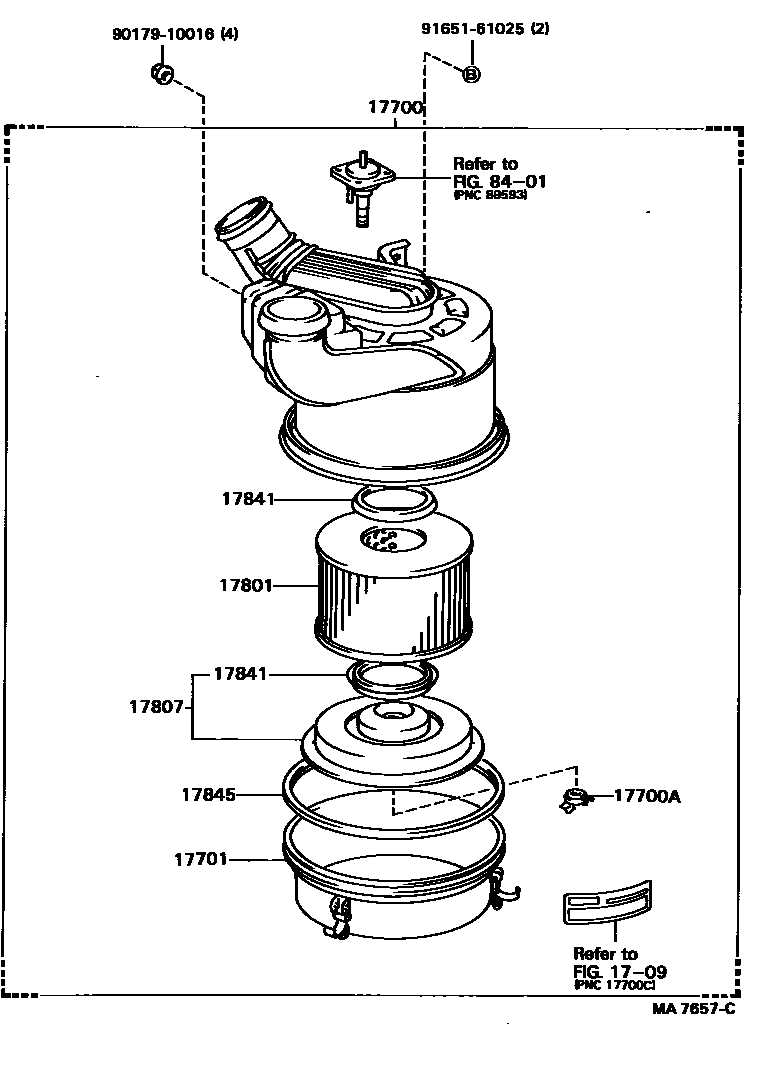

AIR CLEANER

0001 1 0002 1 0003 1 0006 1 0007 1(8610- )SWITZERLAND SPEC 0008 1 0009 1 0010 1 0012 1 0014 1 0016 1 0017 1

1709

17700CLEANER ASSY, AIR

main17700-56330i3Y,4Y..YU60,80..RHD..(GEN,SA)198409-198604

sub17700-56331

main17700-56331i3Y,4Y..YU60,62,8#..RHD..(GEN,SA)198604-198708

main17700-56340i3Y,4Y..YU60,70,80..LHD..GEN198409-198604

sub17700-56341

main17700-56341i3Y,4Y..YU60,62,7#,8#..LHD..GEN198604-198708

main17700-56350i3Y,4Y..YU60,62,80..T3..(ARL,GEN,SA)198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17700-56360i3Y,4Y..YU60,62,8#..T3..GEN198409-198708

SCHNORKEL TYPE & OIL BATH

main17700-56370i3Y,4Y..YU61,63198508-198708

main17700-56380i3Y,4Y..YU61,63198508-198708

SCHNORKEL TYPE & OIL BATH

main17700-58110i1W..WU90..ARL198409-198708

main17700-58120i22R..RU75,85198409-198708

main17700-58140i1W..WU9#..GEN198409-198708

SCHNORKEL TYPE & OIL BATH

sub17700-58260

main17700-73080i3Y..YU60..RHD..GEN..IV3198409-198604

NEW ZEALAND SPEC

sub17700-73081

main17700-73081i3Y,4Y..YU60,62..RHD..GEN..IV3198604-198708

NEW ZEALAND SPEC

main17700-73090i4Y..YU81..LHD..IV3198610-198708

SWITZERLAND SPEC

main17700-73090i3Y..YU60..EUR198409-198608

17700ANUT, WING(FOR AIR CLEANER)

main90099-05187i3Y,4Y..YU6#,70,80..ARL,GEN,SA198409-198604

main90175-06003i3Y,4Y..YU60,62,7#,8#..GEN,SA198604-198708

main90175-08008i1W..WU9#198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main90175-08008i3Y,4Y..YU61,63198508-198708

main94271-00800i3Y,4Y..YU60,62,8#..T3..GEN198409-198708

SCHNORKEL TYPE & OIL BATH

main94271-00800i3Y,4Y..YU61,63198508-198708

17701CASE SUB-ASSY, AIR CLEANER

main17701-56130i3Y,4Y..YU60,62,8#..RHD..(GEN,SA)198409-198708

main17701-56150i3Y,4Y..YU61,63198508-198708

main17701-56150i3Y,4Y..YU60,62,8#..T3198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17701-56160i3Y,4Y..YU6#,70,80..LHD..GEN198409-198708

main17701-58040i1W..WU9#198409-198708

main17702-56060i3Y,4Y..YU61,63198409-198708

SCHNORKEL TYPE & OIL BATH

main17702-58010i22R..RU75,85198409-198708

OIL BATH

sub17702-58020

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56010i22R..RU75,85..GEN198409-198708

SCHNORKEL TYPE & OIL BATH

main17801-56010i1W..WU9#..GEN198409-198708

OIL BATH TYPE

main17801-56020i3Y,4Y..YU61,63198508-198708

main17801-56020i3Y,4Y..YU60,62,8#..T3198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17801-56030i3Y,4Y..YU6#,70,80..ARL,GEN,SA198409-198604

sub17801-56031

main17801-56031i3Y,4Y..YU60,62,7#,8#..GEN,SA198604-198708

main17801-66020i1W..WU9#..GEN,SA198409-198708

sub17801-68020

main17801-68020i1W..WU90..ARL198409-198708

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56011i3Y,4Y..YU60,62,8#..T3198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17807-56011i3Y,4Y..YU61,63198508-198708

main17807-68010i22R..RU75,85198409-198708

17841GASKET, FILTER ELEMENT

main17841-44030i3Y,4Y..YU60,62,8#..T3198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17841-44030i3Y,4Y..YU61,63198508-198708

main17841-56020i3Y,4Y..YU60,62,8#..T3..GEN198409-198708

OIL BATH TYPE

main17841-56020i1W..WU9#..GEN198409-198708

SCHNORKEL TYPE & OIL BATH

main17841-56030i3Y,4Y..YU6#,70,80..ARL,GEN,SA198409-198604

main17841-56031i3Y,4Y..YU60,62,7#,8#..GEN,SA198604-198708

main17841-68010i1W..WU9#198409-198708

17845GASKET, AIR CLEANER CAP

main17845-56020i1W..WU9#..GEN198409-198708

SCHNORKEL TYPE & OIL BATH

main17845-56020i3Y,4Y..YU60,62,8#..T3198409-198708

SCHNORKEL TYPE

main17845-56020i3Y,4Y..YU61,63198508-198708

main17845-56050i3Y,4Y..YU6#,70,80..ARL,GEN,SA198409-198708

main17845-68020i22R..RU75,85198409-198708

sub17845-17010

8401

9017910016

main90179-10016

9165161025

main91651-61025

11 parts on this diagram · 12 diagrams in section
