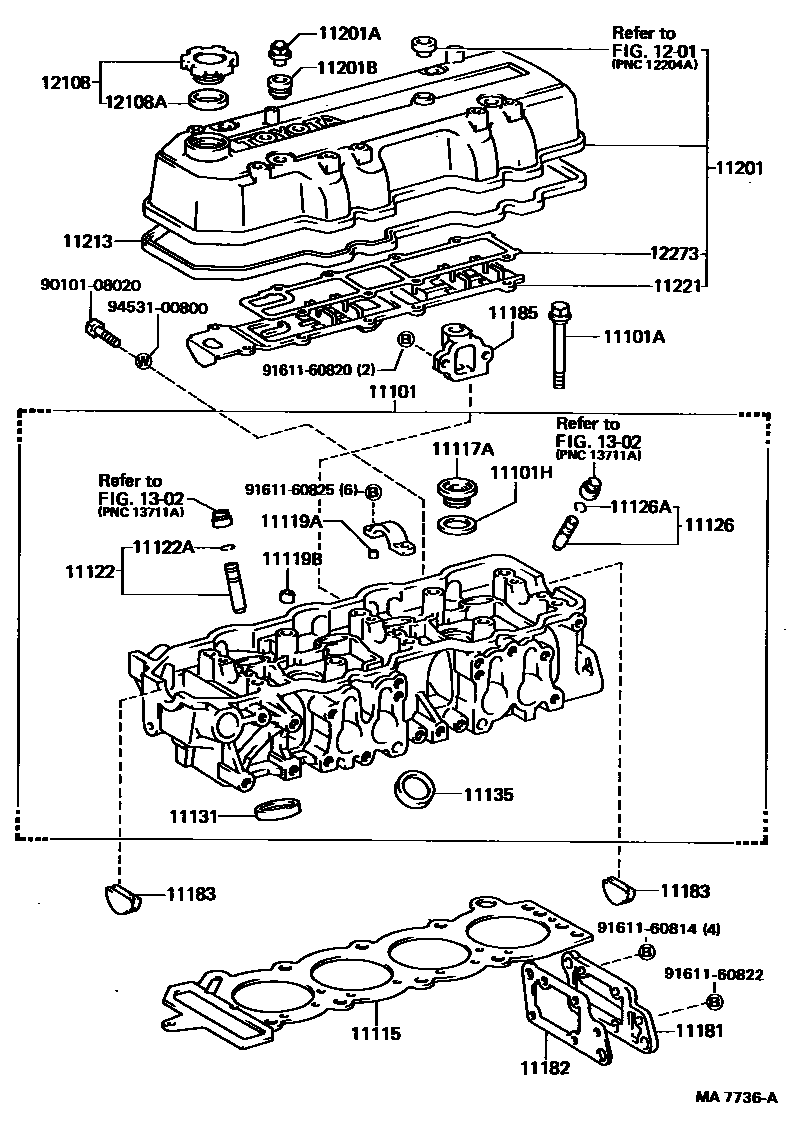

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-35060i22R..RU75,85198409-198708

sub11101-35080

main11101-71030i3Y,4Y..YU6#,70,80198409-198508

sub11101-71010

sub90340-16002

sub90340-18003

sub90344-53011

main11101-73020i3Y,4Y..YU6#,7#,8#198508-198708

main11110-78010i1W..WU90..LHD198409-198708

CHINA SPEC

sub11110-78030

main11110-78020i1W..WU9#..GEN,SA198409-198708

sub11110-78040

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i3Y,4Y..YU6#,7#,8#198409-198708

main90105-12073i1W..WU9#198409-198708

sub90031-01199

main90105-12092i22R..RU75,85198409-198708

11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-33133i22R..RU75,85198409-198708

11115GASKET, CYLINDER HEAD

main11115-35020i22R..RU75,85198409-198708

sub11115-35021

main11115-71010i3Y,4Y..YU6#,70,80198409-198508

sub11115-71011

main11115-71011i3Y,4Y..YU6#,70,80198508-198608

sub11115-73040

main11115-73010i4Y..YU6#,71,81198608-198708

sub11115-73030

main11115-78010i1W..WU9#198409-198607

sub11115-78011

main11115-78011i1W..WU9#198607-198708

sub11115-78012

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-32070i22R..RU75,85198409-198708

OD=32

main90344-53011i3Y,4Y..YU6#,7#,8#198508-198708

11119APIN, STRAIGHT, NO.1

main90253-11021i22R..RU75,85198409-198708

L=8,OD=11,L=8,OD=11

11119BPIN, STRAIGHT, NO.2

main90253-16020i22R..RU75,85198409-198708

L=16,OD=15.5

11122BUSH, INTAKE VALVE GUIDE

main11122-35020i22R..RU75,85198409-198708

STD,STD

main11122-71020i3Y,4Y..YU6#,7#,8#198409-198708

STD,STD

main11122-78010i1W..WU9#198409-198708

STD

sub11122-89102

main11123-35020i22R..RU75,85198409-198708

O/S 0.05,O/S 0.05

main11123-71020i3Y,4Y..YU6#,7#,8#198409-198708

O/S 0.05,O/S 0.05

11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

main90520-12049i22R..RU75,85198409-198708

11126BUSH, EXHAUST VALVE GUIDE

main11122-38021i22R..RU75,85198409-198708

STD,STD

main11122-78010i1W..WU9#198409-198708

STD

sub11122-89102

main11123-38021i22R..RU75,85198409-198708

O/S 0.05,O/S 0.05

main11126-71020i3Y,4Y..YU6#,7#,8#198409-198708

STD,STD

main11127-71020i3Y,4Y..YU6#,7#,8#198409-198708

O/S 0.05,O/S 0.05

11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

main90520-12049i22R..RU75,85198409-198708

11131SEAT, INTAKE VALVE

main11131-35010i22R..RU75,85198409-198708

STD,STD

sub11131-35011

main11131-63010i3Y,4Y..YU6#,7#,8#198409-198708

STD,STD

main11131-78010i1W..WU9#198409-198708

STD

sub11131-78050

main11132-35010i22R..RU75,85198409-198708

O/S 0.03,O/S 0.03

sub11132-35011

main11132-63010i3Y,4Y..YU6#,7#,8#198409-198708

O/S 0.03,O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-35010i22R..RU75,85198409-198708

STD,STD

sub11135-35020

main11135-71010i3Y,4Y..YU6#,7#,8#198409-198708

STD,STD

main11135-78010i1W..WU9#198409-198708

STD

sub11135-78020

main11136-35010i22R..RU75,85198409-198708

O/S 0.03,O/S 0.03

sub11136-35020

main11136-71010i3Y,4Y..YU6#,7#,8#198409-198708

O/S 0.03,O/S 0.03

11181PLATE, CYLINDER HEAD, REAR

main11181-35040i22R..RU75,85198409-198708

main11181-71010i3Y,4Y..YU6#,70,80198409-198608

main11181-73030i3Y..YU70198410-198608

CHINA SPEC

main11181-73080i4Y..YU6#,71,81198608-198708

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-35030i22R..RU75,85198409-198612

sub11182-35031

main11182-35031i22R..RU75,85198612-198708

sub11182-35050

main11182-71010i3Y,4Y..YU6#,7#,8#198409-198708

sub11182-71011

11183PLUG, SEMICIRCULAR

main11183-38010i22R..RU75,85198409-198708

11185COVER, CYLINDER HEAD SIDE

main11184-35020i22R..RU75,85198409-198708

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-35030i22R..RU75,85198409-198708

sub11201-35031

main11201-79035i3Y,4Y..YU6#,7#,8#198409-198708

sub11201-71011

sub11213-71020

sub90210-09001

main11211-78010i1W..WU9#198409-198708

sub11211-E0240

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i22R..RU75,85198409-198708

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-08023i22R..RU75,85198409-198512

sub90210-08026

main90210-08026i22R..RU75,85198512-198708

main90210-09001i3Y,4Y..YU6#,7#,8#198409-198708

sub90210-09019

11213GASKET, CYLINDER HEAD COVER

main11213-35010i22R..RU75,85198409-198708

main11213-71020i3Y,4Y..YU6#,7#,8#198409-198708

main11213-78010i1W..WU9#198409-198708

subS1121-31550

11221SEPARATOR, CYLINDER HEAD COVER, NO.1

main11221-35020i22R..RU75,85198409-198708

sub11221-35021

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i22R..RU75,85198509-198708

sub12180-55010

main12180-61010i4Y..YU6#,71,81198705-198708

sub12180-70020

main12180-70010i1W..WU9#198409-198708

sub12108-78010

main12180-71010i3Y,4Y..YU6#,70,80198409-198506

sub12180-71011

main12180-71011i3Y,4Y..YU6#,7#,8#198506-198705

sub12180-61010

12108AGASKET(FOR OIL FILLER CAP)

main12195-71010i3Y,4Y..YU6#,70,80198409-198506

sub12195-71020

main12195-71020i3Y,4Y..YU6#,7#,8#198506-198708

main90430-37140i1W..WU9#198409-198708

12273GASKET, OIL SEPARATOR

main12273-35020i22R..RU75,85198409-198708

sub12273-35021

1302

9010108020

main90101-08020

9161160814

main91611-60814

9161160820

main91611-60820

9161160822

main91611-60822

9161160825

main91611-60825

9453100800

main94531-00800

33 parts on this diagram · 3 diagrams in section
