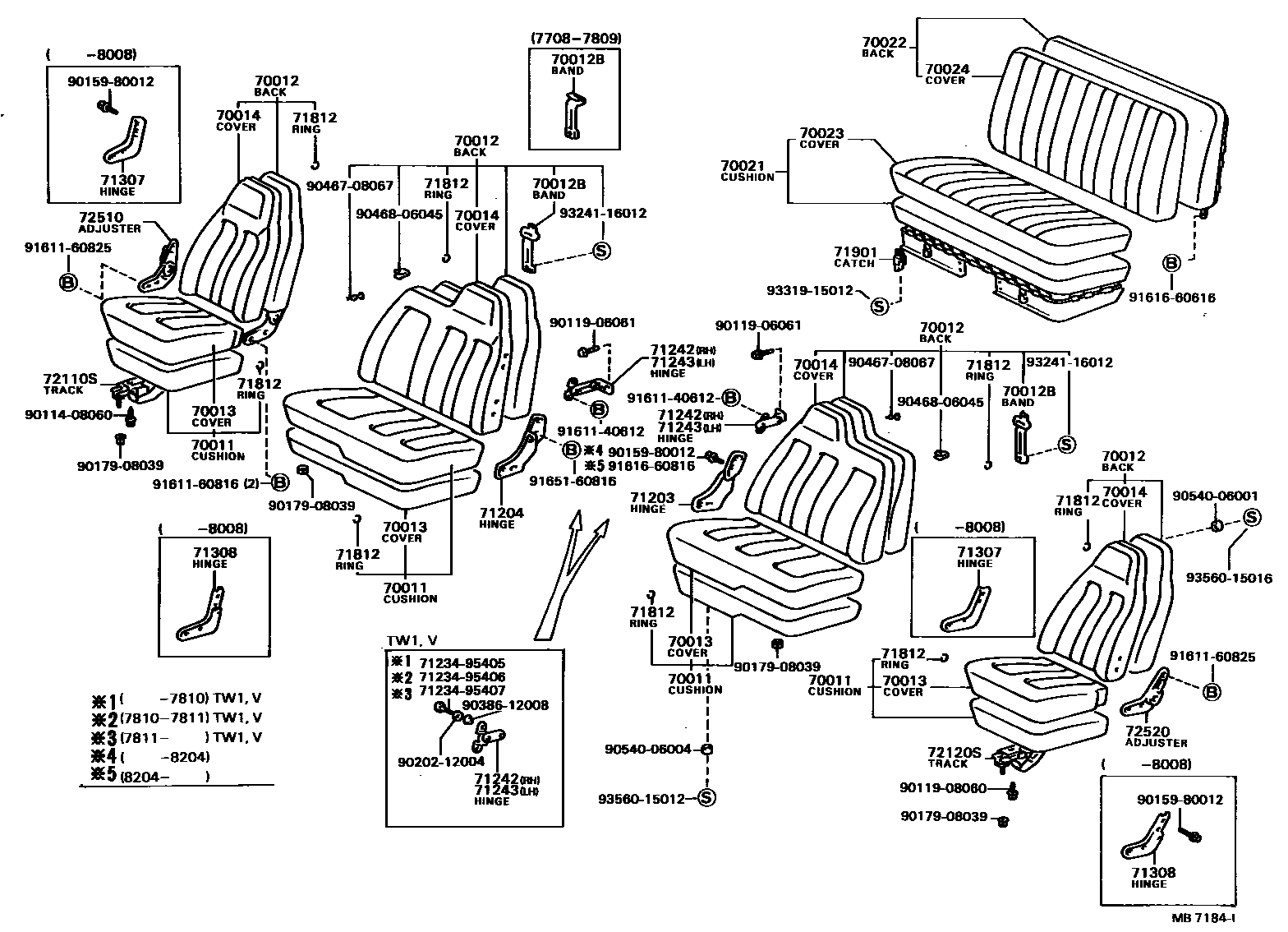

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0005 1

70011CUSHION ASSY, NO.1 SEAT

main71110-95401iBU20,30,HU30,RU2#,30..RHD197708-198008

DRIVER,WOVEN VL

main71110-95402iBU2#,30,HU30,RU2#,30..LHD..GEN197708-198008

DRIVER,VL

main71110-95403iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

DRIVER,WOVEN VL

main71110-95415iBU20,30,HU30,RU2#,30..RHD..GEN197708-198008

DRIVER,VL

main71110-95418iBU20,30,RU20,30..RHD..(GEN,GHI)198008-198204

DRIVER,PF

main71110-95420iBU2#,3#,HU30,RU2#,30..LHD..(GEN,GHI)198008-198204

DRIVER,PF

main71110-95421iBU20,30,RU20,30..EUR198008-198204

DRIVER,PF

main71110-95422iBU20,32,HU30,RU20,30..ARL198008-198204

DRIVER,PF

main71110-95424iBU20,32,36,HU40,50,RU20,30..ARL198204-198408

DRIVER,PF

main71110-95425iBU36,40,HU40,50,WU40..RHD..GEN198204-198408

DRIVER,PF

main71110-95427iBU20,30,RU20,30..RHD..(GEN,GHI)198204-198411

DRIVER,PF

main71110-95429iBU2#,30,31,32,RU2#,30..LHD..(GEN,GHI)198204-198408

DRIVER,PF

main71110-95430iBU20,30,RU20,30..EUR198204-198408

DRIVER,PF

main71110-95431iBU36,40,WU40,50..LHD198302-198408

ASSISTANT,PF

main71110-95432iRU20,30..5F..GEN198210-198408

ASSISTANT,SAA

main71110-95433iBU20,30..EUR..IV3198304-198408

ASSISTANT,PF,FINLAND SPEC

main71210-95400iBU20,30,HU30,RU2#,30..RHD..GEN197708-198008

ASSISTANT,VL

main71210-95401iBU20,30,HU30,RU2#,30..RHD197708-198008

ASSISTANT,WOVEN VL

main71210-95402iBU2#,30,HU30,RU2#,30..LHD..GEN197708-198008

ASSISTANT,VL

main71210-95403iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

ASSISTANT,WOVEN VL

main71210-95406iBU20,30,RU20,30..RHD..TR..GEN; BU20,RU20..RHD..SRF198008-198204

ASSISTANT,PF

main71210-95410iBU2#,3#,HU30,RU2#,30..LHD..(GEN,GHI)198008-198204

ASSISTANT,PF

main71210-95411iBU20,30,RU20,30..EUR198008-198204

ASSISTANT,PF

main71210-95412iBU20,32,HU30,RU20,30..ARL198008-198204

ASSISTANT,PF

main71210-95414iHU50..ARL198204-198302

ASSISTANT,PF

main71210-95415iBU40,HU40,50..GEN198204-198302

ASSISTANT,PF

main71210-95417iBU20,30,RU20,30..RHD..GEN198204-198411

ASSISTANT,PF

main71210-95420iBU20,32,RU20,30..ARL198204-198408

ASSISTANT,PF

main71210-95421iBU2#,30,31,32,RU2#,30..LHD..(GEN,GHI)198204-198408

ASSISTANT,PF

main71210-95422iBU20,30,RU20,30..EUR198204-198408

ASSISTANT,PF

main71210-95423iBU36,40,WU40,50..LHD198302-198408

DRIVER,PF

main71210-95424iBU36,40,HU40,50,WU40..RHD..GEN198302-198408

ASSISTANT,PF

main71210-95425iBU36,HU40,50..ARL198302-198408

ASSISTANT,PF

main71210-95426iRU20,30..5F..GEN198210-198408

DRIVER,SAA

main71210-95427iBU20,30..EUR..IV3198304-198408

DRIVER,PF,FINLAND SPEC

70012BACK ASSY, NO.1 SEAT

main71150-95406iBU20,30,HU30,RU2#,30..RHD..GEN197708-198008

DRIVER,VL

main71150-95408iBU2#,30,HU30,RU2#,30..LHD..GEN197708-198008

DRIVER,VL

main71150-95411iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

DRIVER,WOVEN VL

main71150-95412iBU20,30,HU30,RU2#,30..RHD;BU20,30,JU20,RU20,30..EUR197712-198008

DRIVER,WOVEN VL,*HBS

main71150-95414iBU20,30,RU20,30..RHD..(GEN,GHI)198008-198204

DRIVER,PF,*HBS

main71150-95417iBU20,30..EUR198008-198204

DRIVER,PF

main71150-95418iBU20,30,RU20,30..EUR198008-198204

DRIVER,PF,*HBS

main71150-95419iBU2#,3#,HU30,RU2#,30..LHD..(GEN,GHI)198008-198204

DRIVER,PF

main71150-95420iBU20,32,HU30,RU20,30..ARL198008-198204

DRIVER,PF

main71150-95421iBU2#,3#,HU30,RU2#,30..LHD..(GEN,GHI)198008-198204

DRIVER,VL,*HBS

main71150-95424iBU32,RU20,30..TW1..ARL; BU36,HU40,50..ARL198204-198408

DRIVER,PF

main71150-95425iBU36,40,HU40,50,WU40..RHD..GEN198204-198408

DRIVER,PF

main71150-95428iBU2#,30,RU2#,30..(DMP,TR)..(GEN,GHI); BU20,RU20..SRF198204-198206

DRIVER,PF,*HBS

main71150-95429iBU20,32,RU20,30..T3..ARL198204-198408

DRIVER,PF

main71150-95430iBU2#,30,RU2#,30..LHD..(GEN,GHI); BU20,30..RHD..TR..(GEN,GHI)198204-198206

DRIVER,PF; DRIVER,PF,*LBS

main71150-95431iBU20,30..EUR198204-198408

DRIVER,PF

main71150-95432iBU20,30,RU20,30..T3..EUR198204-198408

DRIVER,PF,*HBS

main71150-95435iRU30..TS..EUR198204-198408

DRIVER,PF,*HBS

main71150-95436iBU36,40,WU40,50..LHD198302-198408

ASSISTANT,PF

main71150-95439iBU20,30..EUR..IV3198304-198408

ASSISTANT,PF

main71150-95440iBU20,30..EUR..IV3198304-198408

ASSISTANT,*HBS,FINLAND SPEC

main71250-95400iRU25..RHD..GEN;BU20,30,HU30,RU20,30..RHD..(T1,T3)..GEN197708-197811

ASSISTANT,VL,*HBS

main71250-95401iRU25..RHD..GEN;RU20,30..RHD..TW1..GEN197708-197811

ASSISTANT,VL,*HBS

main71250-95404iRU20,30..LHD..(T1,T3);BU2#,30,HU30,RU25..LHD..(DMP,TR)..GEN197708-197811

ASSISTANT,VL

main71250-95405iBU20,RU20,30..LHD..(TW1,VSG,VSP)..GEN197708-197811

ASSISTANT,VL

main71250-95411iBU2#,30,HU30,JU20,RU2#,30..LHD197708-197809

ASSISTANT,WOVEN VL

main71250-95412iBU20,HU30,RU20,30..RHD..(TW1,VSG,VSP)197809-197811

ASSISTANT,WOVEN VL,*HBS

main71250-95414iBU20,30,JU20..EUR197712-197811

ASSISTANT,WOVEN VL

main71250-95415iRU20,30..LHD..(T1,T3);BU2#,30,HU30,JU20,RU25..LHD..(DMP,TR)197809-198008

ASSISTANT,WOVEN VL

main71250-95416iHU30,RU20,30..RHD..(T1,T3);BU20,30,RU25..RHD..(DMP,TR)197809-198008

ASSISTANT,WOVEN VL,*HBS

main71250-95417iBU20..V..EUR197809-198204

ASSISTANT,WOVEN VL

main71250-95418iRU25..RHD..GEN;BU20,30,HU30,RU20,30..RHD..(T1,T3)..GEN197811-198008

ASSISTANT,VL,*HBS

main71250-95419iRU25..RHD..GEN;RU20,30..RHD..TW1..GEN197811-198008

ASSISTANT,VL,*HBS

main71250-95420iRU20,30..LHD..(T1,T3)..GEN;BU2#,30,HU30,RU25..LHD..(DMP,TR)..GEN197811-198008

ASSISTANT,VL

main71250-95421iBU20,RU20,30..LHD..(TW1,VSG,VSP)..GEN197811-198008

ASSISTANT,VL

main71250-95422iBU20,JU20,RU20,30..LHD..(TW1,VSG,VSP)197811-198204

ASSISTANT,WOVEN VL

main71250-95423iBU20,HU30,RU20,30..RHD..(TW1,VSG,VSP)197811-198008

ASSISTANT,WOVEN VL,*HBS

main71250-95424iBU20,30,JU20..EUR197811-198008

ASSISTANT,WOVEN VL

main71250-95426iBU20,30,RU20,30..RHD..(T1,T3)..(GEN,GHI)198008-198204

ASSISTANT,PF,*HBS

main71250-95427iBU20,RU20..RHD..(TW1,VSG,VSP)198008-198204

ASSISTANT,PF

main71250-95430iRU20,30..LHD..(T1,T3)..GEN;BU2#,3#,HU30,RU25..LHD..(DMP,TR)..(GEN,GHI)198008-198204

ASSISTANT,PF

main71250-95431iRU20..BUS;BU20..LHD..(HRF,SRF);RU20,30..LHD..(TW1,VSG,VSP)..GEN198008-198204

ASSISTANT,PF

main71250-95432iBU20,RU20,30..EUR198008-198204

ASSISTANT,PF,*HBS

main71250-95433iRU30..TS..EUR198008-198204

ASSISTANT,PF

main71250-95434iBU20,30..EUR198008-198204

ASSISTANT,PF

main71250-95436iBU20,32,RU20,30..T3..ARL198008-198204

ASSISTANT,PF

main71250-95437iBU32,HU30,RU20,30..TW1..ARL198008-198204

ASSISTANT,PF

main71250-95438iRU20,30..LHD..(T1,T3)..GEN;BU2#,3#,HU30,RU25..LHD..(DMP,TR)..(GEN,GHI)198008-198204

ASSISTANT,PF,*HBS

main71250-95439iRU20..BUS;BU20..LHD..(HRF,SRF);RU20,30..LHD..(TW1,VSG,VSP)..GEN198008-198204

ASSISTANT,PF,*HBS

main71250-95442iHU50..ARL198204-198302

ASSISTANT,PF

main71250-95443iBU40,HU40,50..GEN198204-198302

ASSISTANT,PF

main71250-95446iBU20,30,RU20,30..RHD..TR..(GEN,GHI)198204-198312

ASSISTANT,PF,*HBS

main71250-95447iBU20,RU20..RHD..SRF198204-198312

ASSISTANT,PF

main71250-95448iBU20,32,RU20,30..T3..ARL198204-198408

ASSISTANT,PF

main71250-95450iBU32,RU20,30..TW1..ARL198204-198408

ASSISTANT,PF

main71250-95451iRU20,30..LHD..(T1,T3)..GEN;BU2#,30,31,32,RU25..LHD..(DMP,TR)..(GEN,GHI)198204-198312

ASSISTANT,PF

main71250-95452iBU20,30..EUR198204-198408

ASSISTANT,PF

main71250-95453iBU20,30,RU20,30..T3..EUR198204-198312

ASSISTANT,PF,*HBS

main71250-95454iRU20,30..LHD..(T1,T3)..GEN;BU2#,30,31,32,RU25..LHD..(DMP,TR)..(GEN,GHI)198204-198408

ASSISTANT,PF,*HBS

main71250-95455iRU20..SRF..4H;RU30..TS..CBU;BU20..LHD..SRF;RU20..LHD..(5F,5H)..ST198204-198312

ASSISTANT,PF

main71250-95456iRU30..TS..EUR198204-198312

ASSISTANT,PF

main71250-95457iRU20..SRF..4H;RU30..TS..CBU;BU20..LHD..SRF;RU20..LHD..(5F,5H)..ST198204-198408

ASSISTANT,PF,*HBS

main71250-95459iBU36,40,HU40,50,WU40..RHD..GEN198302-198408

ASSISTANT,PF

main71250-95460iBU36,40,WU40,50..LHD198302-198408

DRIVER,PF

main71250-95461iBU36,HU40,50..ARL198302-198408

ASSISTANT,PF

main71250-95464iBU20,30..EUR..IV3198304-198408

DRIVER,PF,FINLAND SPEC

main71250-95465iBU20,30..EUR..IV3198304-198408

DRIVER,PF,*HBS,FINLAND SPEC

main71430-95427iRU20..TS..5F..ST..GEN198210-198408

ASSISTANT,SAA

main71430-95428iRU20..TS..5F..ST..GEN198210-198408

ASSISTANT,*HBS,SAA

main71430-95429iBU32,RU25..GEN198302-198408

ASSISTANT,OMAN SPEC

main71430-95430iBU32,RU25..GEN198302-198408

ASSISTANT,*HBS,OMAN SPEC

main71440-95421iBU20,30..(T1,T3)..(GEN,GHI);BU23,25,31,32,RU2#,30..(DMP,TR)..GEN198206-198411

DRIVER,PF,*HBS

main71440-95422iBU20,30..(T1,T3)..(GEN,GHI);BU23,25,31,32,RU2#,30..(DMP,TR)..GEN198206-198411

DRIVER,PF

main71440-95423iRU20,30..5F..GEN198210-198408

DRIVER,SAA

main71440-95424iBU32,RU25..GEN198302-198408

DRIVER,*HBS,OMAN SPEC

70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main58930-95011iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197810-198411

main58930-95700iBU2#,30,HU30,JU20,RU2#,30197708-197810

70013COVER ASSY, NO.1 SEAT CUSHION

main71071-95423iBU20,30,RU20,30..RHD..(GEN,GHI)198008-198204

DRIVER,PF

main71071-95425iBU20,32,HU30,RU20,30..ARL198008-198204

DRIVER,PF

main71071-95426iBU2#,3#,HU30,RU2#,30..LHD..(GEN,GHI)198008-198204

DRIVER,PF

main71071-95427iBU20,30,RU20,30..EUR198008-198204

DRIVER,PF

main71071-95430iBU20,32,36,HU40,50,RU20,30..ARL198204-198408

DRIVER,PF

main71071-95431iBU36,40,HU40,50,WU40..RHD..GEN198204-198408

DRIVER,PF

main71071-95433iBU20,30,RU20,30..RHD..(GEN,GHI)198204-198411

DRIVER,PF

main71071-95435iBU2#,30,31,32,RU2#,30..LHD..(GEN,GHI)198204-198408

DRIVER,PF

main71071-95436iBU20,30,RU20,30..EUR198204-198408

DRIVER,PF

main71071-95437iBU36,40,WU40,50..LHD198302-198408

ASSISTANT,PF

main71071-95438iBU32,RU25..GEN198302-198408

ASSISTANT,OMAN SPEC

main71071-95439iBU20,30..EUR..IV3198304-198408

ASSISTANT,PF

main71072-95422iBU20,30,RU20,30..RHD..TR..GEN; BU20,RU20..RHD..SRF198008-198204

ASSISTANT,PF

main71072-95426iBU2#,3#,HU30,RU2#,30..LHD..(GEN,GHI)198008-198204

ASSISTANT,PF

main71072-95427iBU20,30,RU20,30..EUR198008-198204

ASSISTANT,PF

main71072-95428iBU20,32,HU30,RU20,30..ARL198008-198204

ASSISTANT,PF

main71072-95430iHU50..ARL198204-198302

ASSISTANT,PF

main71072-95431iBU40,HU40,50..GEN198204-198302

ASSISTANT,PF

main71072-95433iBU20,30,RU20,30..RHD..GEN198204-198411

ASSISTANT,PF

main71072-95435iBU20,32,RU20,30..ARL198204-198408

ASSISTANT,PF

main71072-95436iBU2#,30,31,32,RU2#,30..LHD..(GEN,GHI)198204-198408

ASSISTANT,PF

main71072-95437iBU20,30,RU20,30..EUR198204-198408

ASSISTANT,PF

main71072-95438iBU36,40,WU40,50..LHD198302-198408

DRIVER,PF

main71072-95439iBU36,40,HU40,50,WU40..RHD..GEN198302-198408

ASSISTANT,PF

main71072-95440iBU36,HU40,50..ARL198302-198408

ASSISTANT,PF

main71072-95441iBU32,RU25..GEN198302-198408

DRIVER,OMAN SPEC

main71072-95442iBU20,30..EUR..IV3198304-198408

DRIVER,PF,FINLAND SPEC

main71140-95400iBU20,30,HU30,RU2#,30..RHD..GEN197708-198008

DRIVER,VL

main71140-95401iBU20,30,HU30,RU2#,30..RHD197708-198008

DRIVER,WOVEN VL

main71140-95402iBU2#,30,HU30,RU2#,30..LHD..GEN197708-198008

DRIVER,VL

main71140-95403iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

DRIVER,WOVEN VL

main71202-95400iBU20,30,HU30,RU2#,30..RHD..GEN197708-198008

ASSISTANT,VL

main71202-95401iBU20,30,HU30,RU2#,30..RHD197708-198008

ASSISTANT,WOVEN VL

main71202-95402iBU2#,30,HU30,RU2#,30..LHD..GEN197708-198008

ASSISTANT,VL

main71202-95403iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

ASSISTANT,WOVEN VL

70014COVER ASSY, NO.1 SEATBACK

main71073-95423iBU20,30,RU20,30..RHD..(GEN,GHI)198008-198204

DRIVER,PF,*HBS

main71073-95426iBU20,30..EUR198008-198204

DRIVER,PF

main71073-95427iBU2#,3#,HU30,RU2#,30..LHD..(GEN,GHI)198008-198204

DRIVER,PF

main71073-95428iBU20,30,RU20,30..EUR198008-198204

DRIVER,PF,*HBS

main71073-95429iBU20,32,HU30,RU20,30..ARL198008-198204

DRIVER,PF

main71073-95430iBU2#,3#,HU30,RU2#,30..LHD..(GEN,GHI)198008-198204

DRIVER,VL,*HBS

main71073-95433iBU20,32,HU40,50,RU20,30..ARL198204-198408

DRIVER,PF

main71073-95434iBU36,40,HU40,50,WU40..RHD..GEN198204-198408

DRIVER,PF

main71073-95437iBU2#,3#,RU2#,30..(DMP,TR)..(GEN,GHI); BU20,RU20..SRF198204-198206

DRIVER,PF,*HBS

main71073-95438iBU20,32,RU20,30..ARL198204-198408

DRIVER,PF

main71073-95439iBU20,30..RHD..TR..(GEN,GHI)198204-198411

DRIVER,PF,*LBS

main71073-95440iBU20,30..EUR198204-198408

DRIVER,PF

main71073-95441iBU20,30,RU20,30..EUR198204-198408

DRIVER,PF,*HBS

main71073-95442iBU36,40,WU40,50..LHD198302-198408

ASSISTANT,PF

main71073-95444iRU20..TS..5F..ST..GEN198210-198408

ASSISTANT,SAA

main71073-95445iRU20..TS..5F..ST..GEN198210-198408

ASSISTANT,*HBS,SAA

main71073-95446iBU32,RU25..GEN198302-198408

ASSISTANT,OMAN SPEC

main71073-95447iRU20,30..T3..5F..GEN198210-198408

ASSISTANT,*HBS,SAA

main71073-95448iBU20,30..EUR..IV3198304-198408

ASSISTANT,PF,FINLAND SPEC

main71073-95449iBU20,30..EUR..IV3198304-198408

ASSISTNT,*HBS,FINLAND SPEC

main71074-95421iBU20,30,RU20,30..RHD..(T1,T3)..(GEN,GHI)198008-198204

ASSISTANT,PF,*HBS

main71074-95422iBU20,RU20..RHD..(TW1,VSG,VSP)198008-198408

ASSISTANT,PF

main71074-95424iBU20,30..EUR198008-198204

ASSISTANT,PF

main71074-95425iRU20,30..LHD..(T1,T3)..GEN;BU2#,3#,HU30,RU25..LHD..(DMP,TR)..(GEN,GHI)198008-198204

ASSISTANT,PF

main71074-95426iRU20..BUS;BU20..LHD..(HRF,SRF);RU20,30..LHD..(TW1,VSG,VSP)..GEN198008-198204

ASSISTANT,PF

main71074-95427iBU20,30,RU20,30..EUR198008-198204

ASSISTANT,PF,*HBS

main71074-95428iRU30..TS..EUR198008-198204

ASSISTANT,PF

main71074-95430iBU20,32,RU20,30..T3..ARL198008-198204

ASSISTANT,PF

main71074-95431iBU32,HU30,RU20,30..TW1..ARL198008-198204

ASSISTANT,PF

main71074-95432iRU20,30..LHD..(T1,T3)..GEN;BU2#,3#,HU30,RU25..LHD..(DMP,TR)..(GEN,GHI)198008-198204

ASSISTANT,PF,*HBS

main71074-95433iRU20..BUS;BU20..LHD..(HRF,SRF);RU20,30..LHD..(TW1,VSG,VSP)..GEN198008-198204

ASSISTANT,PF,*HBS

main71074-95436iBU20,32,RU20,30..T3..ARL198204-198312

ASSISTANT,PF

main71074-95437iBU20,30,RU20,30..RHD..TR..(GEN,GHI)198204-198312

ASSISTANT,PF,*HBS

main71074-95439iBU20,30..RHD..(T1,T3)..(GEN,GHI)198204-198411

ASSISTANT,PF,*LBS

main71074-95440iBU20,RU20..RHD..SRF198204-198312

ASSISTANT,PF

main71074-95441iBU20,32,RU20,30..ARL198312-198408

ASSISTANT,PF

main71074-95442iRU20,30..LHD..(T1,T3)..GEN;BU2#,30,31,32,RU25..LHD..(DMP,TR)..(GEN,GHI)198204-198312

ASSISTANT,PF

main71074-95443iBU20,30..EUR198204-198408

ASSISTANT,PF

main71074-95444iBU20,30,RU20,30..T3..EUR198204-198312

ASSISTANT,PF,*HBS

main71074-95445iRU20,30..LHD..(T1,T3)..GEN;BU2#,30,RU25..LHD..(DMP,TR)..(GEN,GHI)198204-198408

ASSISTANT,PF,*HBS

main71074-95446iRU20..SRF..4H;RU30..TS..CBU;BU20..LHD..SRF;RU20..LHD..(5F,5H)..ST198204-198312

ASSISTANT,PF

main71074-95447iRU30..TS..EUR198204-198312

ASSISTANT,PF

main71074-95448iRU20..SRF..4H;RU30..TS..CBU;BU20..LHD..SRF;RU20..LHD..(5F,5H)..ST198204-198408

ASSISTANT,PF,*HBS

main71074-95449iBU2#,30,31,32,RU2#,30..LHD..(DMP,TR)..(GEN,GHI); BU20,RU20..LHD..SRF198206-198408

DRIVER,PF,*HBS

main71074-95450iBU2#,30,31,32,RU2#,30..LHD..(GEN,GHI)198206-198408

DRIVER,PF

main71074-95451iBU36,40,HU40,50,WU40..RHD..GEN198302-198408

ASSISTANT,PF

main71074-95452iBU36,40,WU40,50..LHD198302-198408

DRIVER,PF

main71074-95453iBU36,HU40,50..ARL198302-198408

ASSISTANT,PF

main71074-95455iBU32,RU25..GEN198302-198408

DRIVER,OMAN SPEC

main71074-95456iRU20,30..5F..GEN198210-198408

DRIVER,*HBS,SAA

main71074-95457iBU20,30..EUR..IV3198304-198408

DRIVER,PF,FINLAND SPEC

main71074-95458iBU20,30..EUR..IV3198304-198408

DRIVER,PF,*HBS,FINLAND SPEC

main71190-95401iBU20,30,HU30,RU2#,30..RHD..GEN197708-198008

DRIVER,VL

main71190-95403iBU2#,30,HU30,RU2#,30..LHD..GEN197708-198008

DRIVER,VL

main71190-95406iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

DRIVER,WOVEN VL

main71190-95407iBU20,30,HU30,RU20,30..RHD197708-197712

DRIVER,WOVEN VL,*HBS

main71206-95400iRU25..RHD..GEN;BU20,30,HU30,RU20,30..RHD..(T1,T3)..GEN197708-198008

ASSISTANT,VL,*HBS

main71206-95401iRU25..RHD..GEN;BU20,RU20,30..RHD..(TW1,VSG,VSP)..GEN197708-198008

ASSISTANT,VL,*HBS

main71206-95404iRU20,30..LHD..(T1,T3)..GEN;BU2#,30,HU30,RU25..LHD..(DMP,TR)..GEN197708-198008

ASSISTANT,VL

main71206-95405iBU20,RU20,30..LHD..(TW1,VSG,VSP)..GEN197708-198008

ASSISTANT,VL

main71206-95411iBU20,JU20,RU20,30..LHD..(TW1,VSG,VSP)197809-198008

ASSISTANT,WOVEN VL,*HBS

main71206-95412iBU20,HU30,RU20,30..RHD..(TW1,VSG,VSP)197809-198008

ASSISTANT,WOVEN VL,*HBS

main71206-95414iBU20,30,JU20..EUR197712-197811

ASSISTANT,WOVEN VL

main71206-95415iRU20,30..LHD..(T1,T3);BU2#,30,HU30,JU20,RU25..LHD..(DMP,TR)197809-198008

ASSISTANT,WOVEN VL

main71206-95416iHU30,RU20,30..RHD..(T1,T3);BU20,30,RU25..RHD..(DMP,TR)197809-198008

DRIVER,WOVEN VL,*HBS

main71206-95417iBU20,30,JU20..EUR197811-198204

ASSISTANT,WOVEN VL

main71206-95418iBU20..V..EUR197809-198204

ASSISTANT,WOVEN VL

70021CUSHION ASSY, NO.2 SEAT

main71320-92160iBU20,RU20..BUS198104-198204

W/FR FACED SEAT

main71320-92161iBU20,RU20..BUS198204-198408

W/FR FACED SEAT

main71410-92120iBU20,RU20..LHD..VSG..GEN; BU20,RU20..RHD..VSG197708-198008

W/PARALLEL SEAT,RH

main71410-92121iBU20,RU20..LHD..VSG..GEN; BU20,RU20..RHD..VSG197708-198008

W/PARALLEL SEAT,LH; W/PARALLEL SEAT,RH

main71410-92123×2iBU20,RU20..VSG..GEN197708-198008

W/COMBINATION SEAT

main71410-92140iBU20,RU20..LHD..VSG; BU20,RU20..RHD..VSG198008-198104

W/PARALLEL SEAT,LH; W/PARALLEL SEAT,RH

main71410-92141iBU20,RU20..LHD..VSG; BU20,RU20..RHD..VSG198008-198104

W/PARALLEL SEAT,LH; W/PARALLEL SEAT,RH

main71410-92143×2iBU20,RU20..VSG198008-198104

W/COMBINATION SEAT

main71410-92150iRU20..BUS..5F198210-198408

SAA,W/COMBINATION SEAT

main71410-92270iBU20,RU20..BUS198204-198408

W/COMBINATION SEAT

main71460-95400iRU20,30..TW1197708-198008

VL

main71460-95401iHU30,RU20,30..TW1197708-198008

WOVEN VL

main71460-95406iRU20,30..TW1..GEN198008-198204

VL

main71460-95407iBU32,HU30,RU20,30..TW1..(ARL,EUR)198008-198204

main71460-95408iRU20,30..TW1..GEN198204-198408

PF

main71460-95409iBU32,RU20,30..TW1..(ARL,EUR)198204-198408

main71460-95411iRU20..TS..5F..ST..GEN198210-198408

SAA

70022BACK ASSY, NO.2 SEAT

main71330-92160iBU20,RU20..BUS198104-198204

W/FR FACED SEAT

main71330-92161iBU20,RU20..BUS198204-198408

W/FR FACED SEAT

main71450-92120iBU20,RU20..LHD..VSG..GEN; BU20,RU20..RHD..VSG197708-198008

W/PARALLEL SEAT,LH; W/PARALLEL SEAT,RH

main71450-92121iBU20,RU20..LHD..VSG..GEN197708-198008

W/PARALLEL SEAT,RH

main71450-92123iBU20,RU20..RHD..VSG197708-198008

W/PARALLEL SEAT,LH

main71450-92124iBU20,RU20..VSG..GEN197708-198008

W/COMBINATION SEAT

main71450-92140iBU20,RU20..LHD..VSG; BU20,RU20..RHD..VSG198008-198104

W/PARALLEL SEAT,LH; W/PARALLEL SEAT,RH

main71450-92141iBU20,RU20..LHD..VSG198008-198104

W/PARALLEL SEAT,RH

main71450-92143iBU20,RU20..RHD..VSG198008-198104

W/PARALLEL SEAT,LH

main71450-92144iBU20,RU20..VSG198008-198104

W/COMBINATION SEAT

main71450-92150iRU20..BUS..5F198210-198408

SAA,W/COMBINATION SEAT

main71450-92270iBU20,RU20..BUS198204-198408

W/COMBINATION SEAT

main71480-95400iRU20,30..TW1197708-198008

VL

main71480-95401iHU30,RU20,30..TW1197708-198008

WOVEN VL

main71480-95402iRU20,30..TW1..GEN198008-198204

VL

main71480-95403iBU32,HU30,RU20,30..TW1..(ARL,EUR)198008-198204

WOVEN VL

main71480-95404iRU20,30..TW1..GEN198204-198408

PF

main71480-95405iBU32,RU20,30..TW1..(ARL,EUR)198204-198408

PF

main71480-95406iRU20..TS..5F..ST..GEN198210-198408

SAA

70023COVER ASSY, NO.2 SEAT CUSHION

main71075-95400iRU20,30..TW1197708-198008

VL

main71075-95401iHU30,RU20,30..TW1197708-198008

WOVEN VL

main71075-95406iRU20,30..TW1..GEN198008-198204

WOVEN VL

main71075-95407iBU32,HU30,RU20,30..TW1..(ARL,EUR)198008-198204

PF

main71075-95408iRU20,30..TW1..GEN198204-198408

PF

main71075-95409iBU32,RU20,30..TW1..(ARL,EUR)198204-198408

PF

main71075-95410iRU20..TS..5F..ST..GEN198210-198408

SAA

main71079-92140iBU20,RU20..LHD..VSG; BU20,RU20..RHD..VSG198008-198104

W/PARALLEL SEAT,LH; W/PARALLEL SEAT,RH

main71079-92142iBU20,RU20..LHD..VSG; BU20,RU20..RHD..VSG198008-198104

W/PARALLEL SEAT,LH; W/PARALLEL SEAT,RH

main71079-92146iBU20,RU20..VSG198008-198104

W/COMBINATION SEAT

main71079-92150iRU20..BUS..5F198210-198408

SAA,W/COMBINATION SEAT

main71079-92270iBU20,RU20..BUS198204-198408

W/COMBINATION SEAT

main71306-92160iBU20,RU20..BUS198104-198204

W/FR FACED SEAT

main71306-92161iBU20,RU20..BUS198204-198408

W/FR FACED SEAT

70024COVER ASSY, NO.2 SEATBACK

main71077-95400iRU20,30..TW1197708-198008

VL

main71077-95401iHU30,RU20,30..TW1197708-198008

WOVEN VL

main71077-95402iRU20,30..TW1..GEN198008-198204

VL

main71077-95403iBU32,HU30,RU20,30..TW1..(ARL,EUR)198008-198204

PF

main71077-95404iRU20,30..TW1..GEN198204-198408

PF

main71077-95405iBU32,RU20,30..TW1..(ARL,EUR)198204-198408

PF

main71077-95406iRU20..TS..5F..ST..GEN198210-198408

SAA

main71078-92140iBU20,RU20..LHD..VSG; BU20,RU20..RHD..VSG198008-198104

W/PARALLEL SEAT,LH; W/PARALLEL SEAT,RH

main71078-92142iBU20,RU20..LHD..GEN; BU20,RU20..RHD..VSG198008-198104

W/PARALLEL SEAT,LH; W/PARALLEL SEAT,RH

main71078-92146iBU20,RU20..BUS198104-198204

W/COMBINATION SEAT

main71078-92150iRU20..BUS..5F198210-198408

SAA,W/COMBINATION SEAT

main71078-92270iBU20,RU20..BUS198204-198408

W/COMBINATION SEAT

main71308-92160iBU20,RU20..BUS198104-198204

W/FR FACED SEAT

main71308-92161iBU20,RU20..BUS198204-198408

W/FR FACED SEAT

71203HINGE SUB-ASSY, PASSENGER SEAT, RH

main71203-95403iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

main71203-95405iBU2#,3#,HU30,RU2#,30..LHD198008-198204

main71203-95406iBU2#,3#,40,RU2#,30,WU40,50..LHD198204-198408

71204HINGE SUB-ASSY, PASSENGER SEAT, LH

main71204-95402iBU20,30,HU30,RU2#,30..RHD197708-198008

main71204-95405iBU20,30,32,RU20,30..RHD198008-198204

main71204-95406iBU20,30,32,36,40,HU40,50,RU20,30,WU40..RHD198204-198411

71242HINGE, PASSENGER SEATBACK, RH

main71207-95401iRU20,30..(T1,T3)..GEN;BU2#,30,HU30,RU25..(DMP,TR)..GEN197708-198008

DARK BROWN

main71207-95402iBU20,HU30,JU20,RU20,30..TW1,VSG,VSP197708-197810

main71207-95403iRU20..BUS;RU20,30..LHD..(TW1,VSG,VSP)..GEN198008-198204

DARK BROWN

main71207-95404iBU36,40,HU40,50,WU40..RHD198204-198408

main71207-95405iBU20,32,RU20,30..T3..ARL; RU20,30..(T1,T3)..(EUR,GEN);BU2#,3#,HU30,RU25..(DMP,TR)..(EUR,GEN,GHI)198008-198204

BROWN

main71207-95406iRU20..BUS;BU20..HRF,SRF;BU32,HU30,RU20,30..TW1,VSG,VSP198008-198408

BROWN

main71207-95407iBU36,40,WU40,50..LHD198302-198408

71243HINGE, PASSENGER SEATBACK, LH

main71208-95400iRU20,30..(T1,T3)..GEN;BU2#,30,HU30,RU25..(DMP,TR)..GEN197708-198008

DARK BROWN

main71208-95401iBU20,HU30,JU20,RU20,30..TW1,VSG,VSP197708-197810

main71208-95402iBU20,30..LHD..TR..(GEN,GHI); RU20..BUS;RU20,30..LHD..(TW1,VSG,VSP)..GEN198008-198204

DARK BROWN; W/HEADREST

main71208-95403iBU20,32,RU20,30..T3..ARL; RU20,30..(T1,T3)..(EUR,GEN);BU2#,3#,HU30,RU25..(DMP,TR)..(EUR,GEN,GHI)198008-198204

BROWN

main71208-95404iBU20,RU20..SRF198204-198408

W/HEADREST

main71208-95405iBU36,40,WU40,50..LHD198302-198408

main71208-95406iBU36,40,HU40,50,WU40..RHD198302-198408

71307HINGE SUB-ASSY, DRIVER SEAT, RH

main71155-95409iBU20,30,HU30,JU20,RU20,30197708-197803

main71155-95411iBU2#,30,HU30,JU20,RU2#,30197803-198008

WOVEN VL

71308HINGE SUB-ASSY, DRIVER SEAT, LH

main71157-95403iBU20,30,HU30,JU20,RU20,30197708-197803

main71157-95405iBU2#,30,HU30,JU20,RU2#,30197803-198008

WOVEN VL

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18056×33iBU2#,30,31,32,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

71901CATCH SUB-ASSY, SEAT CUSHION, REAR

main71901-95016×2iHU30,RU20,30..TW1197708-197812

main71901-95407×2iBU32,HU30,RU20,30..TW1197812-198408

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-95404iBU20,30,HU30,RU2#,30..RHD197708-198008

main72110-95406iBU36,40,HU40,50,WU40..RHD198302-198408

main72110-95407iBU40,HU40,50..GEN198204-198302

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-95404iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

main72120-95407iBU2#,3#,40,HU30,RU2#,30,WU40,50..LHD198008-198408

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-95401iBU20,32,RU20,30..ARL; BU36,40,HU40,50,WU40..RHD198204-198408

72520ADJUSTER ASSY, RECLINING SEATBACK, LH

main72520-95400iBU20,30,RU20,30..EUR198008-198204

main72520-95401iBU20,30,RU20,30..EUR198204-198408

7123495405SPRING, SEATBACK STOP, RH

main71234-95405

7123495406SPRING, SEATBACK STOP, RH

main71234-95406

7123495407SPRING, SEATBACK STOP, RH

main71234-95407

9011408060

main90114-08060

9011906061

main90119-06061

9011908060

main90119-08060

9015980012

main90159-80012

9017908039

main90179-08039

9020212004

main90202-12004

9038612008

main90386-12008

9046708067

main90467-08067

9046806045

main90468-06045

9054006001

main90540-06001

9054006004

main90540-06004

9161140612

main91611-40612

9161160816

main91611-60816

9161160825

main91611-60825

9161660616

main91616-60616

9161660816

main91616-60816

9165160816

main91651-60816

9324116012

main93241-16012

9331915012

main93319-15012

9356015012

main93560-15012

9356015016

main93560-15016

45 parts on this diagram · 4 diagrams in section
