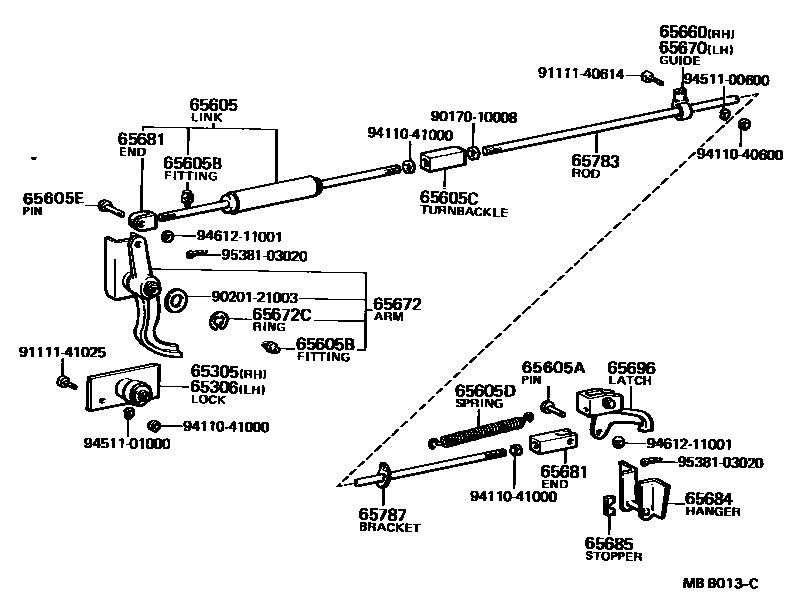

REAR BODY SIDE GATE LOCK & TAIL GATE LOCK
65305LOCK SUB-ASSY, BEZEL, RH
65306LOCK SUB-ASSY, BEZEL, LH
65605LINK SUB-ASSY, TAIL GATE LOCK
SAUDI ARABIA SPEC
65605APIN, TAIL GATE LOCK LINK
65605BFITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK)
65605CTURNBACKLE, TAIL GATE LOCK LINK
65605EPIN, W/HOLE(FOR TAIL GATE LOCK LINK SETTING)
65660GUIDE, ROLLER, RH
SAUDI ARABIA SPEC
65670GUIDE, ROLLER, LH
SAUDI ARABIA SPEC
65672ARM, TAIL GATE LOCK ROLLER
RH
LH
RH
LH
65672CRING, SNAP(FOR ROLLER ARM SETTING)
65681END, TAIL GATE LOCK LINK
65684HANGER, TAIL GATE
65685STOPPER, TAIL GATE HANGER
65696LATCH, TAIL GATE LOCK
LH
RH
65783ROD, TURNBUCKLE THREADED
65787BRACKET, RETURN SPRING
9017010008
main90170-10008
9020121003
main90201-21003
9111140614
main91111-40614
9111141025
main91111-41025
9411040600
main94110-40600
9411041000
main94110-41000
9451100600
main94511-00600
9451101000
main94511-01000
9461211001
main94612-11001
9538103020
main95381-03020
28 parts on this diagram · 2 diagrams in section
