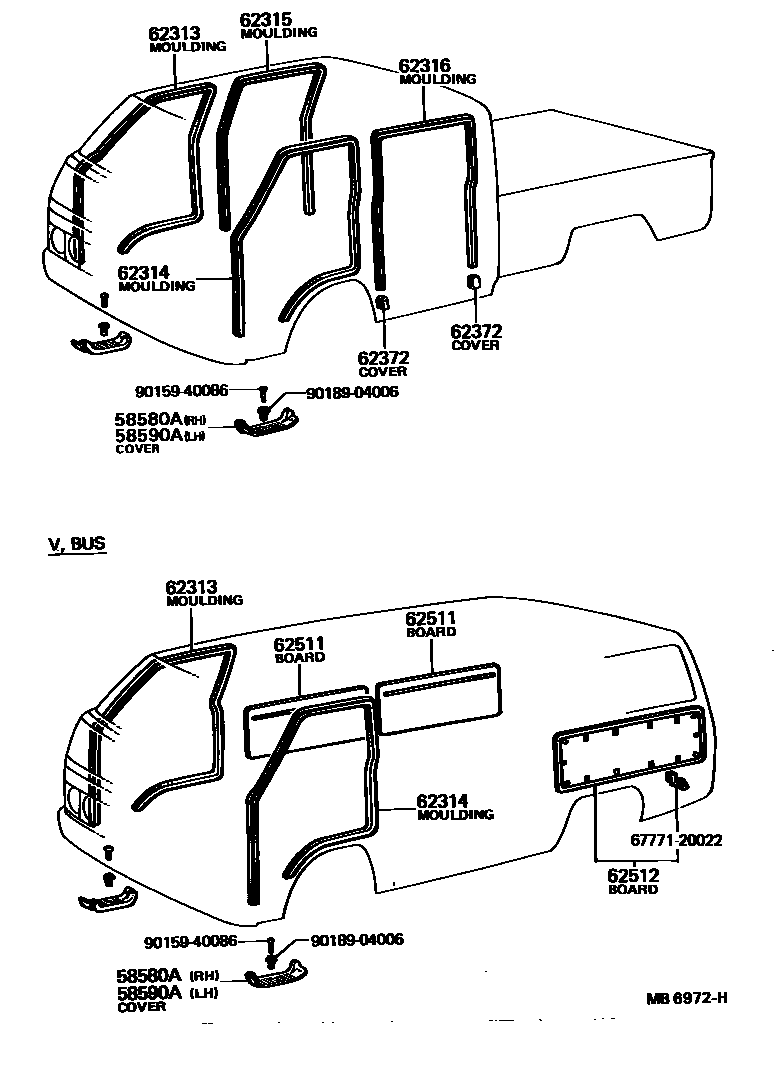

INSIDE TRIM BOARD

58580ACOVER, FRONT FLOOR SIDE, RH

main58581-95400iBU2#,30,HU30,RU2#,30..GEN197708-198008

W/FLOOR MAT,T=2.0

sub58581-95402

main58581-95401iBU2#,30,HU30,JU20,RU2#,30197708-198008

W/FLOOR MAT,T=1.2

sub58581-95403

main58581-95402iBU2#,3#,HU30,RU2#,30..GEN,GHI198008-198204

W/FLOOR MAT,T=1.2

main58581-95403iBU20,30,32,HU30,RU20,30..ARL,EUR198008-198204

W/FLOOR MAT,T=2.0

main58581-95404iBU2#,3#,40,HU40,50,RU2#,30,WU40,50..GEN,GHI198204-198411

W/FLOOR MAT,T=1.2

main58581-95405iBU20,30,32,36,HU40,50,RU20,30..ARL,EUR198204-198408

W/FLOOR MAT,T=2.0

58590ACOVER, FRONT FLOOR SIDE, LH

main58591-95400iBU2#,30,HU30,RU2#,30..GEN197708-198008

W/FLOOR MAT,T=2.0

sub58591-95402

main58591-95401iBU2#,30,HU30,JU20,RU2#,30197708-198008

W/FLOOR MAT,T=1.2

sub58591-95403

main58591-95402iBU2#,3#,HU30,RU2#,30..GEN,GHI198008-198204

W/FLOOR MAT,T=1.2

main58591-95403iBU20,30,32,HU30,RU20,30..ARL,EUR198008-198204

W/FLOOR MAT,T=2.0

main58591-95404iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

W/FLOOR MAT,T=1.2

main58591-95405iBU20,30,32,36,HU40,50,RU20,30..ARL,EUR198204-198408

W/FLOOR MAT,T=2.0

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-95400iBU2#,30,HU30,JU20,RU2#,30197708-197811

sub62313-95402

main62313-95402iBU2#,3#,HU30,JU20,RU2#,30197811-198204

main62313-95403iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-95400iBU2#,30,HU30,JU20,RU2#,30197708-197811

sub62313-95402

main62313-95402iBU2#,3#,HU30,JU20,RU2#,30197811-198204

main62313-95403iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

62315MOULDING, REAR DOOR OPENING TRIM, RH

main62346-95400iHU30,RU20,30..TW1197708-197811

sub62346-95401

main62346-95401iBU32,HU30,RU20,30..TW1197811-198204

main62346-95402iBU32,RU20,30..TW1198204-198408

62316MOULDING, REAR DOOR OPENING TRIM, LH

main62346-95400iHU30,RU20,30..TW1197708-197811

sub62346-95401

main62346-95401iBU32,HU30,RU20,30..TW1197811-198204

main62346-95402iBU32,RU20,30..TW1198204-198408

62372COVER, QUARTER WINDOW INSIDE TRIM

main62314-95403iBU32,RU20,30..TW1198204-198408

main62314-95A00iBU32,HU30,RU20,30..TW1197811-198204

main62372-12010iHU30,RU20,30..TW1197708-197811

62511BOARD, QUARTER INSIDE TRIM, RH

main62130-92620iBU20,RU20..RHD..VSG198008-198204

FR

main62130-92621iBU20,RU20..RHD..SRF198204-198408

FR

main62130-95A01-06iBU20,RU20..RHD..VSG197708-198008

FR,BROWN,BROWN

sub62130-95A01

main62140-92120iBU20,RU20..VSG..GEN197808-198008

RR,W/CONBINATION SEAT

main62140-92121iBU20,RU20..VSG;BU20,RU20..BUS198008-198204

RR,W/CONBINATION SEAT

main62140-92270iBU20,RU20..BUS198204-198408

RR,W/CONBINATION SEAT

main62140-92620iBU20,RU20..VSG198008-198204

RR

main62140-92621iBU20,RU20..BUS198204-198408

RR,W/FACED SEAT

sub62620-37060

main62140-92621iBU20,RU20..VSG198204-198408

RR

sub62620-37060

main62140-95A03-06iBU20,JU20,RU20..VSG197708-198008

RR,BROWN,BROWN

sub62140-95A03

62512BOARD, QUARTER INSIDE TRIM, LH

main62130-92620iBU20,RU20..BUS;BU20,RU20..LHD..VSG198008-198204

FR

main62130-92621iBU20,RU20..LHD..SRF198204-198408

FR

main62130-95A01-06iBU20,JU20,RU20..LHD..VSG197708-198008

FR,BROWN,BROWN

sub62130-95A01

main62140-92620iBU20,RU20..VSG;BU20,RU20..BUS198008-198204

RR

main62140-95A03-06iBU20,JU20,RU20..VSG197708-198008

RR,BROWN,BROWN

sub62140-95A03

main62150-92120iBU20,RU20..VSG..GEN197808-198008

RR,W/CONBINATION SEAT

main62150-92121iBU20,RU20..VSG;BU20,RU20..BUS198008-198204

RR,W/CONBINATION SEAT

main62150-92270iBU20,RU20..BUS198204-198408

RR,W/CONBINATION SEAT

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

9015940086

main90159-40086

9018904006

main90189-04006

12 parts on this diagram · 1 diagram in section
