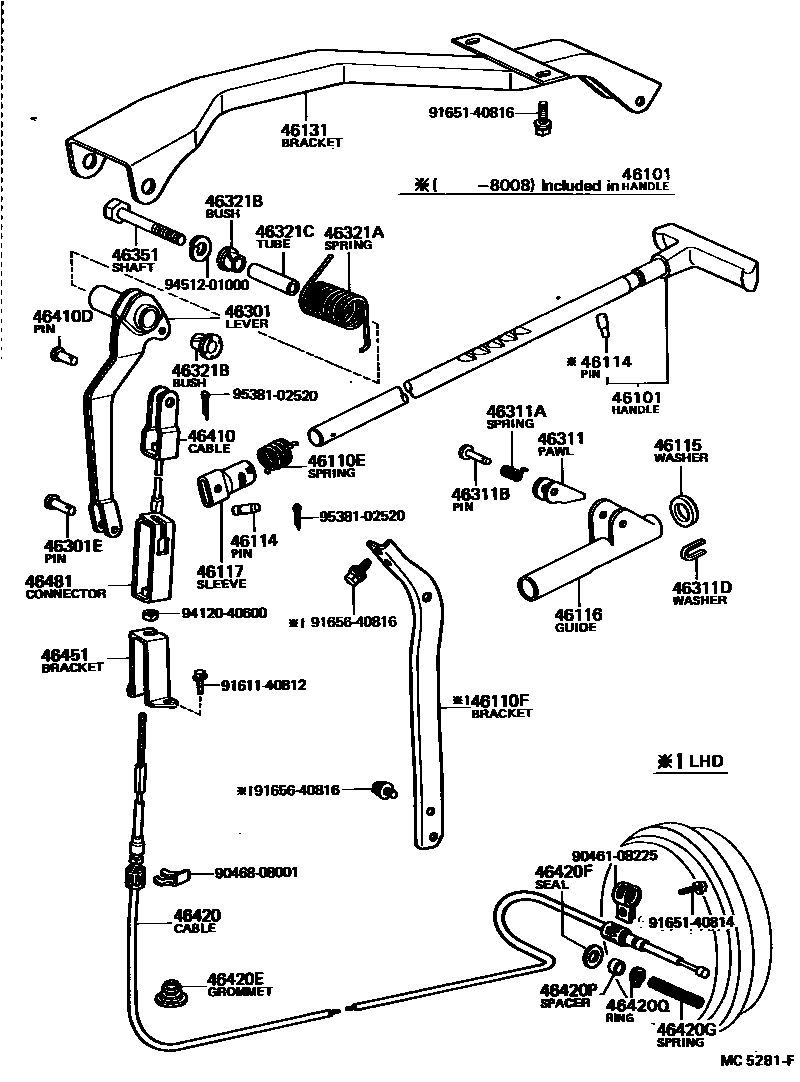

PARKING BRAKE & CABLE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-36090iBU20,30,HU30,RU20,30..RHD197708-197712

sub46101-36091

main46101-36091iBU20,30,HU30,RU2#,30..RHD197712-198008

sub46101-36092

main46101-36100iBU20,30,HU30,JU20,RU20,30..LHD197708-197712

sub46101-36101

main46101-36101iBU2#,30,HU30,JU20,RU2#,30..LHD197712-198008

sub46101-36102

main46101-36102iBU2#,30,31,32,HU30,RU2#,30..LHD198008-198408

main46101-36110iBU20,RU2#,30..ARL197905-198408

main46101-36161iBU20,30,36,40,HU40,50,RU20,30,WU40..RHD..(GEN,GHI)198008-198411

main46101-36170iBU40,WU40,50..LHD198302-198408

46110ESPRING, TORSION(FOR PARKING BRAKE PLUNGER)

main90508-14038iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD197708-198411

main90508-14039iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

46110FBRACKET, PARKING BRAKE, LOWER

main55177-95400iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

UPR

main46114-30010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

LWR

46115WASHER, PARKING BRAKE PLUNGER

main46115-20010iBU2#,30,HU30,JU20,RU2#,30197708-198411

46116GUIDE, PARKING BRAKE PLUNGER

main46116-36090iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD197708-198411

main46116-36100iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iBU30..RHD197708-198411

main46117-30020iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

main46117-60010iBU30,RU20..RHD..5H..GEN..IV3197905-198408

46131BRACKET SUB-ASSY, PARKING BRAKE

main46131-36060iBU20,30,HU30,JU20,RU20,30197708-197712

sub46131-36061

sub46131-36070

main46131-36061iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD197712-198411

main46131-36070iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197712-198408

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36050iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

main46301-36060iHU40,50..GEN..IV3198302-198408

W/LSPV

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46311PAWL, PARKING BRAKE

main46311-28010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46311BPIN, PARKING BRAKE PAWL PIVOT

main90249-05010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)

main90213-03007iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-35002iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46321BBUSH(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90386-13007iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46321CTUBE(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90387-10004iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46351SHAFT, INTERMEDIATE LEVER PIVOT

main91111-71070iBU20,30,HU30,JU20,RU20,30197708-197801

main91111-71075iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197801-198411

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36120iBU2#,3#,HU30,JU20,RU2#,30197708-198201

sub46410-36121

main46410-36121iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198201-198411

sub46410-36350

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08094iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-36040iBU30..T2197708-198411

main46420-36060iBU20..LHD..GEN197708-198408

main46420-36070iBU20..LHD..WT..GEN..IV3197708-198408

DUMP SPEC

main46420-36070iRU25..RHD197803-198408

main46420-36080iRU30..RHD197708-198411

main46420-36080iRU20..RHD..WT..IV3198008-198408

DUMP SPEC

main46420-36090iHU30..RHD197708-198104

main46420-36100iRU25197708-198408

main46420-36100iRU20..LHD..WT..GEN..IV3198008-198408

DUMP SPEC

main46420-36110iBU20..LHD..WT..GEN..IV3197708-198408

DUMP SPEC

main46420-36110iBU25,RU25..LHD197803-198008

main46420-36120iHU30..LHD197708-198104

main46420-36200iHU40,50198204-198408

main46420-36210iBU36,40,WU40..RHD198204-198408

main46420-36220iBU36,40,WU40,50..LHD198302-198408

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-26006iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iBU20,JU20,RU20..EUR197708-198411

7 INCHES

main90501-14003iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

7 INCHES,DUMP SPEC

main90501-14021iBU30..T2197708-198411

6.3 INCHES

main90501-14026iBU20..GEN197708-197803

6.3 INCHES

46420PSPACER, PARKING BRAKE

main90560-08002iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

46451BRACKET, CABLE SUPPORT

main46451-36010iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD197708-198411

main46451-36021iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

46481CONNECTOR, PARKING CABLE

main46481-36011iBU2#,3#,HU30,JU20,RU2#,30197708-198201

sub46481-36012

main46481-36012iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198201-198411

9046108225

main90461-08225

9046808001

main90468-08001

9161140812

main91611-40812

9165140814

main91651-40814

9165140816

main91651-40816

9165640816

main91656-40816

9412040600

main94120-40600

9451201000

main94512-01000

9538102520

main95381-02520
