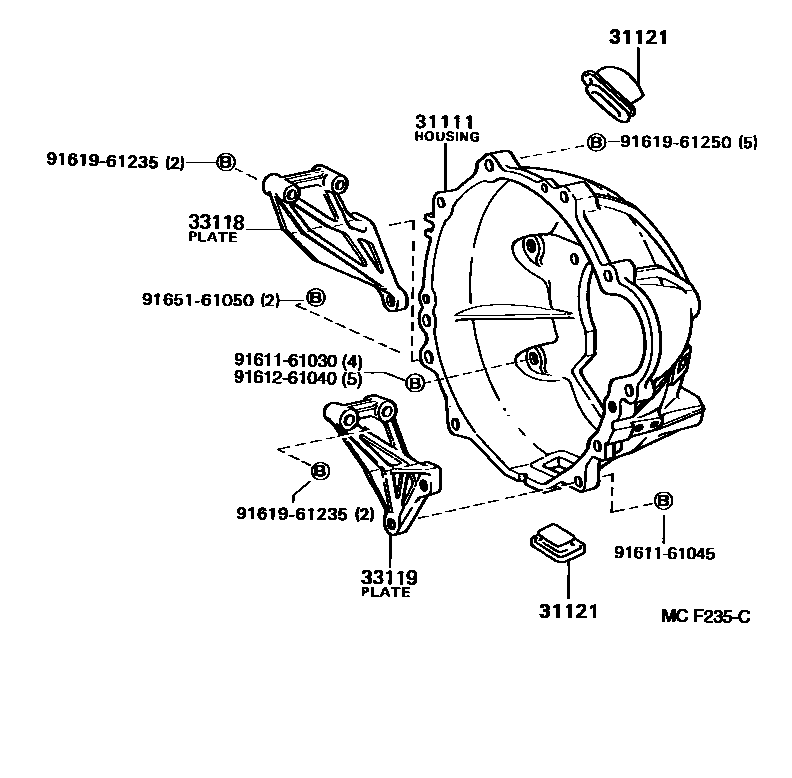

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0003 1 0004 1

31111HOUSING, CLUTCH

main31111-36221iBU76,8#,96198808-198910

main31111-36222iBU84199004-199210

main31111-36280iBU7#,88,9#198910-199410

main31111-36281iBU79,92199410-199505

main31111-36310iBU89199210-199505

31121COVER, CLUTCH HOUSING, NO.1

main31121-36040iBU76,8#,96198808-198910

main31121-36070iBU7#,88,9#198910-199505

UPR

33118PLATE, STIFFENER, RH(MTM)

main33118-36021iBU7#,8#,9#198808-199505

33119PLATE, STIFFENER, LH(MTM)

main33119-36040iBU76,8#,96198808-198910

main33119-36041iBU7#,8#,9#198910-199505

9161161030

main91611-61030

9161161045

main91611-61045

9161261040

main91612-61040

9161961235

main91619-61235

9161961250

main91619-61250

9165161050

main91651-61050

10 parts on this diagram · 3 diagrams in section
