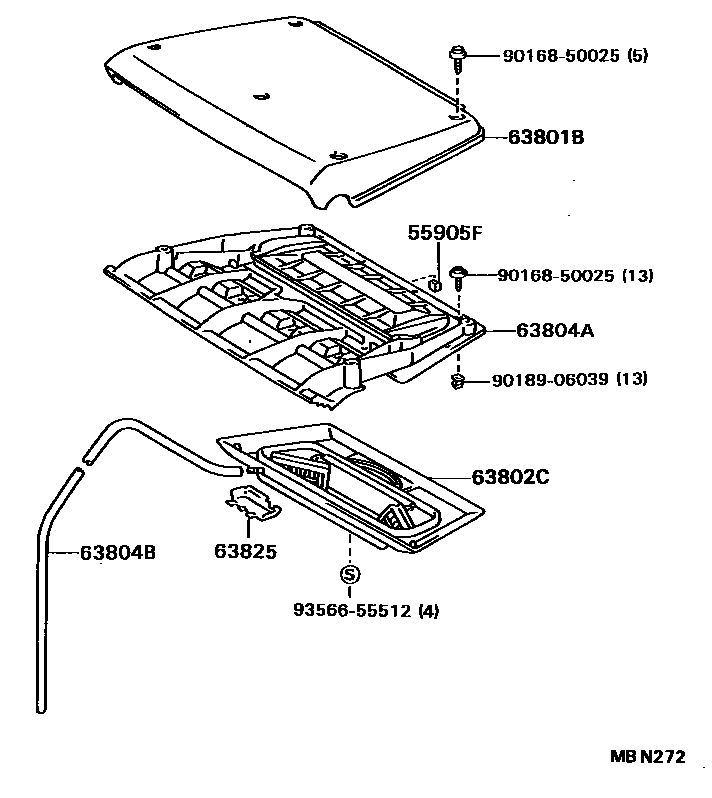

REAR VENTILATOR & ROOF VENTILATOR

55905FKNOB SUB-ASSY, CONTROL

main55905-10110iBU75,85198708-198808

63801BCOVER SUB-ASSY, ROOF VENTILATOR

main63801-95401iBU75,85198708-198808

63802CCOVER SUB-ASSY, ROOF VENTILATOR, NO.2

main63802-95400-06iBU75,85198708-198808

BROWN,TRIM4#

63804AHOUSING SUB-ASSY, ROOF VENTILATOR

main63804-95400iBU75,85198708-198808

63804BHOSE, DRAIN(FOR ROOF VENTILATOR)

main88539-95402iBU75,85198708-198808

63825COVER, ROOF VENTILATOR DRAIN HOSE

main63825-95400-06iBU75,85198708-198808

BROWN,TRIM4#

9016850025

main90168-50025

9018906039

main90189-06039

9356655512

main93566-55512

9 parts on this diagram · 1 diagram in section
