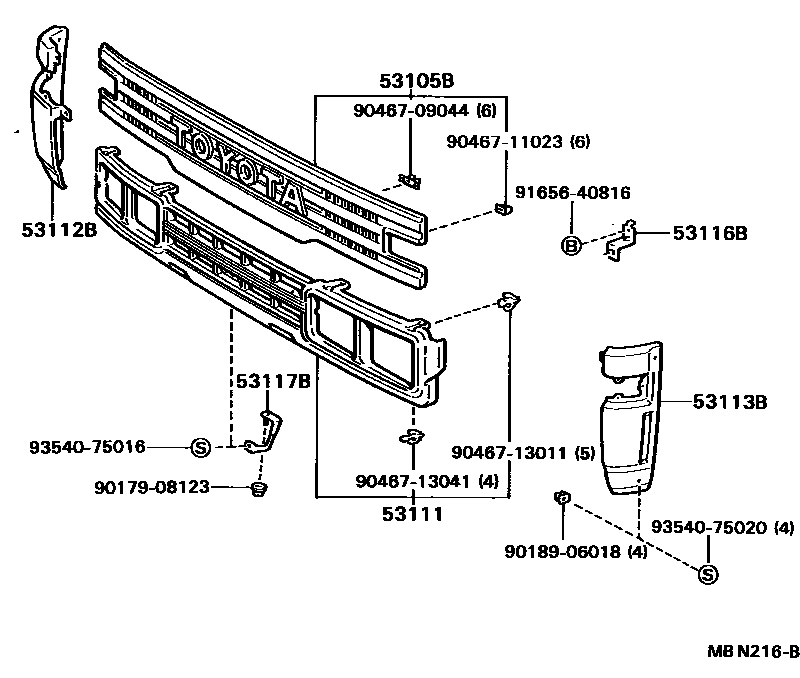

RADIATOR GRILLE

53105BGARNISH SUB-ASSY, RADIATOR GRILLE

main53105-95408iBU75,85198708-198808

53111GRILLE, RADIATOR

main53111-95424iBU75,85198708-198808

53112BGRILLE, RADIATOR SIDE, RH

main53112-95406iBU75,85198708-198808

53113BGRILLE, RADIATOR SIDE, LH

main53113-95408iBU75,85198708-198808

53116BBRACKET, RADIATOR GRILLE, NO.2

main53116-95404iBU75,85198708-198808

53117BBRACKET, RADIATOR GRILLE, LOWER

main53117-95407iBU75,85198708-198808

9017908123

main90179-08123

9018906018

main90189-06018

9046709044

main90467-09044

9046711023

main90467-11023

9046713011

main90467-13011

9046713041

main90467-13041

9165640816

main91656-40816

9354075016

main93540-75016

9354075020

main93540-75020

15 parts on this diagram · 1 diagram in section
