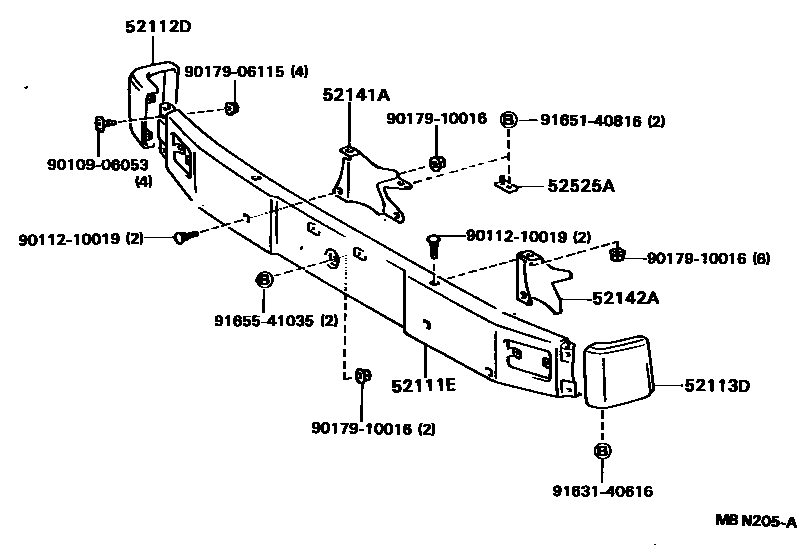

FRONT BUMPER & BUMPER STAY

52111EBAR, FRONT BUMPER

main52101-95409-01iBU75,85198708-198808

W(HEADLAMP CLEANER),BLACK,048 ,391 ,541 ,6A9 ,8E5

main52111-95443-01iBU75,85198708-198808

BLACK,048 ,391 ,541 ,6A9 ,8E5

52112DEXTENSION, FRONT BUMPER, RH

main52112-95406iBU75,85198708-198808

52113DEXTENSION, FRONT BUMPER, LH

main52113-95406iBU75,85198708-198808

52141AARM, FRONT BUMPER, UPPER RH

main52141-95404iBU75,85198708-198808

52142AARM, FRONT BUMPER, UPPER LH

main52142-95404iBU75,85198708-198808

52525ARETAINER, FRONT BUMPER BRACKET

main52525-95400×2iBU75,85198708-198808

9010906053

main90109-06053

9011210019

main90112-10019

9017906115

main90179-06115

9017910016

main90179-10016

9163140616

main91631-40616

9165140816

main91651-40816

9165541035

main91655-41035

13 parts on this diagram · 1 diagram in section
