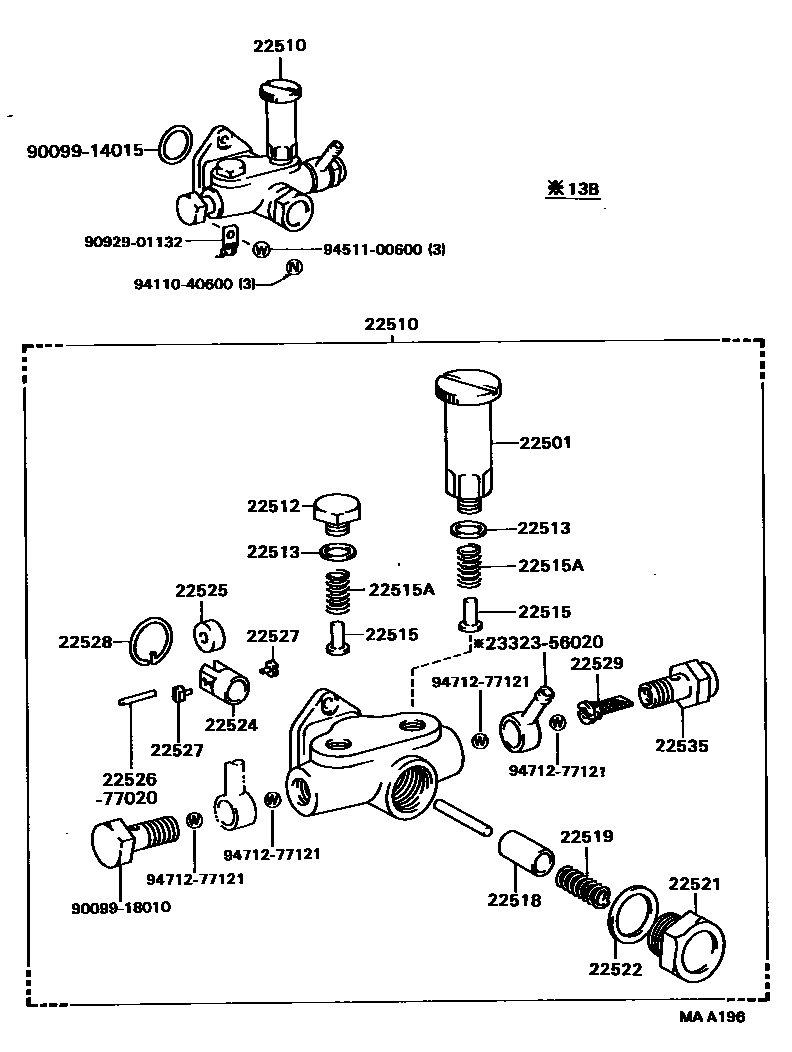

FUEL FEED PUMP

22501PUMP SUB-ASSY, PRIMING

main22501-77021iB,13B..BU75,85198708-198808

22510PUMP ASSY, FUEL FEED

main22510-56040iB..BU75198708-198808

main22510-58230×2i13B..BU85198708-198808

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020iB,13B..BU75,85198708-198808

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2iB,13B..BU75,85198708-198808

22515VALVE, FEED PUMP CHECK

main22515-77021×2iB,13B..BU75,85198708-198808

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2iB,13B..BU75,85198708-198808

22518PISTON, FEED PUMP

main22518-56012iB,13B..BU75,85198708-198808

GREEN

main22518-77020iB,13B..BU75,85198708-198808

BLUE

22519SPRING, FEED PUMP PISTON

main22519-48010×2i13B..BU85; B..BU75198708-198808

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77021i13B..BU85; B..BU75198708-198808

22522GASKET, FEED PUMP PISTON PLUG

main90099-01432i13B..BU85; B..BU75198708-198808

22524TAPPET, FEED PUMP

main22524-77021i13B..BU85; B..BU75198708-198808

22525ROLLER, FEED PUMP TAPPET

main22525-77020i13B..BU85; B..BU75198708-198808

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2iB,13B..BU75,85198708-198808

22528RING, FEED PUMP TAPPET SNAP

main22528-77020i13B..BU85; B..BU75198708-198808

22529FILTER, FUEL PUMP

main22529-67010i13B..BU85; B..BU75198708-198808

22535SCREW, FUEL PIPE FOLLOW

main22535-46010i13B..BU85; B..BU75198708-198808

2252677020PIN, FEED PUMP TAPPET ROLLER

main22526-77020

2332356020NUT(FOR FUEL FILTER CASE SUPPORT)

main23323-56020

9009914015

main90099-14015

9009918010

main90099-18010

9092901132

main90929-01132

9411040600

main94110-40600

9451100600

main94511-00600

9471277121

main94712-77121

24 parts on this diagram · 1 diagram in section
