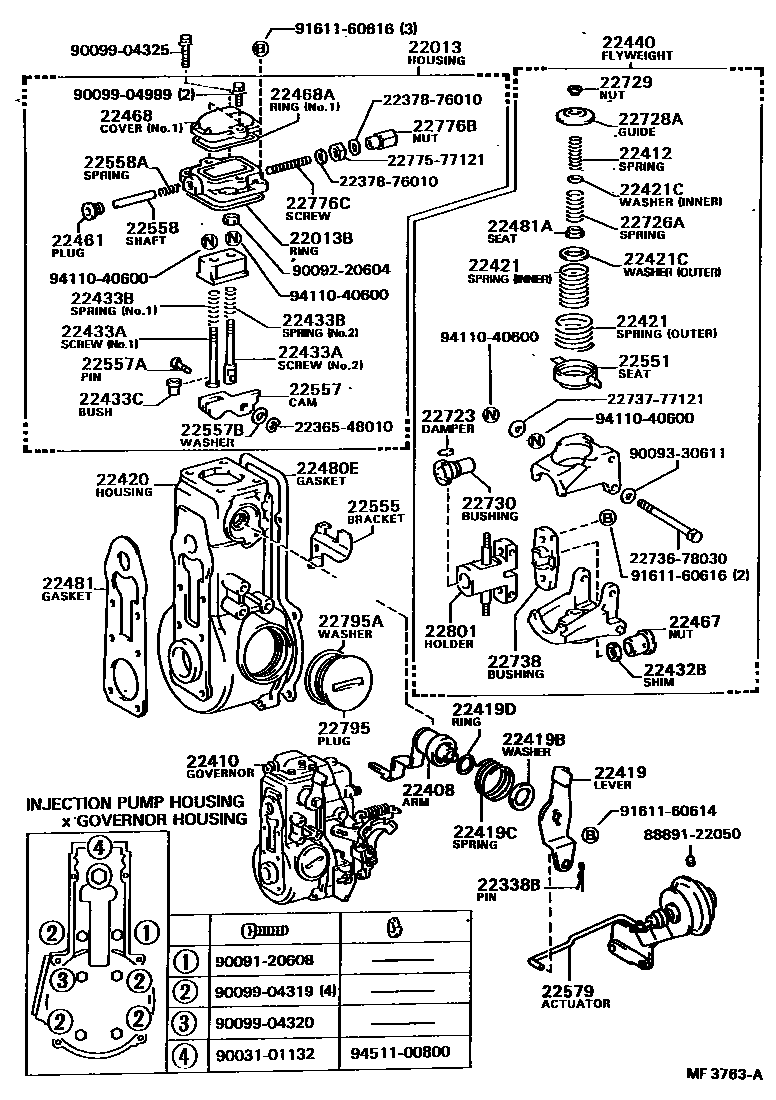

MECHANICAL GOVERNOR
22013HOUSING SUB-ASSY, FULLROAD STOPPER
22013BRING, O(FOR FULLROAD STOPPER HOUSING)
22338BPIN, LEVER CONECTING
22408ARM, STOPPER
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
22412SPRING, MECHANICAL GOVERNOR
22419LEVER, STOP
22419BWASHER, PLATE(FOR STOPPER LEVER)
T=0.50,OD=16
T=0.10
T=0.05
22419CSPRING, RETURN(FOR STOPPER LEVER)
22419DRING, O(FOR STOPPER LEVER)
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
22421SPRING, IDLING
INNER
OUTER
22421CWASHER, IDLING SPRING
T=0.20
T=0.40,T=0.40,OUTER
T=0.60,T=0.60,OUTER
T=0.40,T=0.40,INNER
T=0.60,T=0.60,INNER
T=0.50
T=0.55
22432BSHIM
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.10
T=2.20
T=2.30
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
NO.1
NO.2
22433BSPRING(FOR ADAPTER SCREW)
NO.1
NO.2
22433CBUSH(FOR ADAPTER SCREW)
22440FLYWEIGHT SUB-ASSY
22461PLUG, SCREW
FULL ROAD STOPPER HO
GOVERNOR COVER
22467NUT, ROUND
22468COVER, PLATE
NO.2
NO.1
22480EGASKET, GOVERNOR COVER
22481GASKET
22481ASEAT, SPRING, INNER
22551SEAT, SPRING(FOR FLYWEIGHT)
22555BRACKET, STOPPER
22557CAM, FULL STOP
22557APIN, CONNECTING(FOR FULL STOP CAM)
22557BWASHER, PLATE(FOR CONNECTING PIN)
T=0.20
T=0.05
T=0.10
22558SHAFT, SLIDING BLOCK
22558ASPRING(FOR SLIDING BLOCK SHAFT)
22579ACTUATOR, FUEL CUT
22723DAMPER, FLYWEIGHT HOLDER
22726ASPRING, SPEED CONTROL
22728AGUIDE, SPRING
22729NUT, ADJUSTING(FOR FLYWEIGHT)
22730BUSHING ASSY, CAMSHAFT
22738BUSHING, GUIDE(FOR FLYWEIGHT)
22776BNUT, CAP(FOR SCREW STOPPER)
22776CSCREW, STOPPER
22795PLUG, SCREW
22795AWASHER, SCREW PLUG
22801HOLDER SUB-ASSY, FLYWEIGHT
2236548010RING, E(FOR INJECTION PUMP LEVER)
main22365-48010
2237876010WASHER, DRAIN SCREW
main22378-76010
2273678030BOLT, BELLCRANK
main22736-78030
2273777121
main22737-77121
2277577121NUT, LOCK(FOR INJECTION PUMP)
main22775-77121
8889122050PACKING (FOR COOLER)
main88891-22050
9003101132
main90031-01132
9009120608
main90091-20608
9009220604
main90092-20604
9009330611
main90093-30611
9009904319
main90099-04319
9009904320
main90099-04320
9009904325
main90099-04325
9009904999
main90099-04999
9161160614
main91611-60614
9161160616
main91611-60616
9411040600
main94110-40600
9451100800
main94511-00800
62 parts on this diagram · 2 diagrams in section
