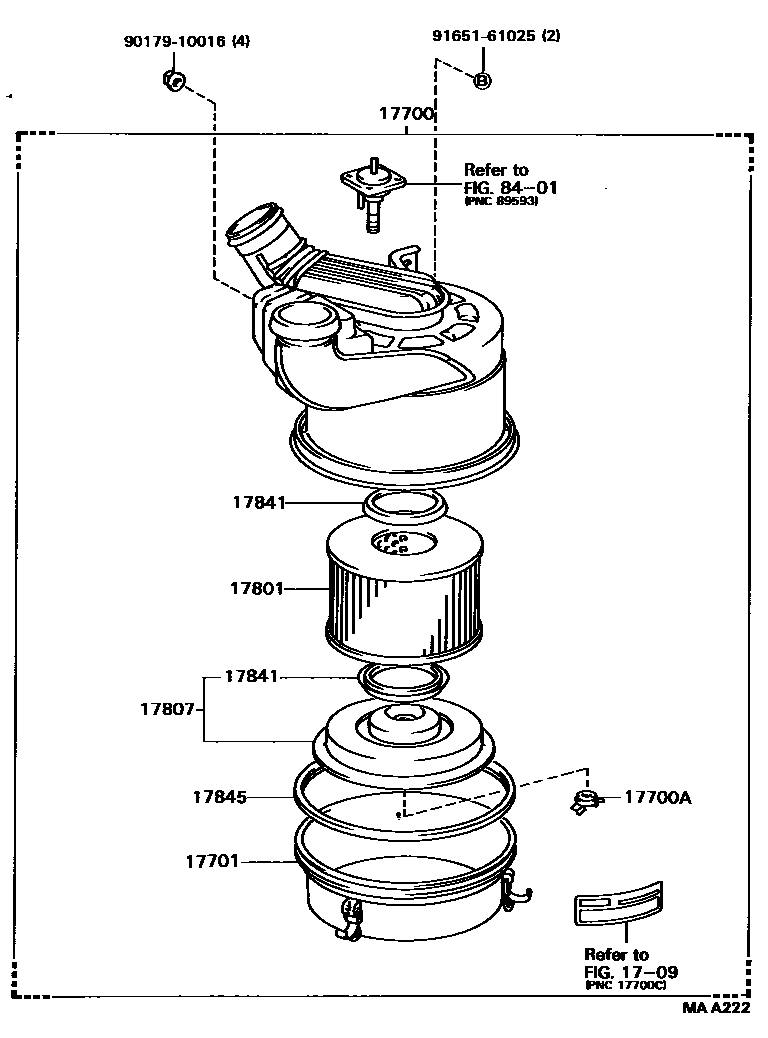

AIR CLEANER

0001 1 0002 1

1709

17700CLEANER ASSY, AIR

main17700-58250iB,13B..BU75,85198708-198808

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008iB,13B..BU75,85198708-198808

17701CASE SUB-ASSY, AIR CLEANER

main17701-58040iB,13B..BU75,85198708-198808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-68020iB,13B..BU75,85198708-198808

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-68010iB,13B..BU75,85198708-198808

17841GASKET, FILTER ELEMENT

main17841-68010iB,13B..BU75,85198708-198808

17845GASKET, AIR CLEANER CAP

main17845-68020iB,13B..BU75,85198708-198808

sub17845-17010

8401

9017910016

main90179-10016

9165161025

main91651-61025

11 parts on this diagram · 2 diagrams in section
