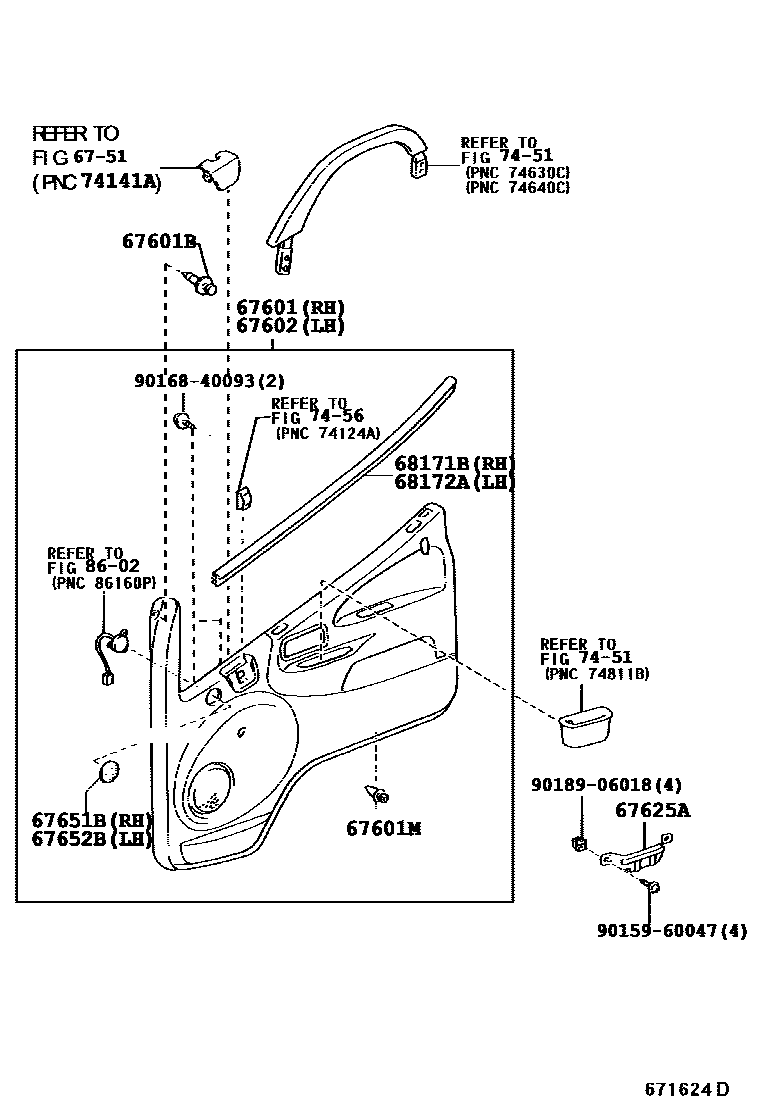

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

6751

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-37080-B0iXZU302,307,342200010-200206

MD.CHACORL,TRIM1#

sub67610-37080

main67610-37090-B0iXZU30#,320,330,34#199907-200212

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

sub67610-37090

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07071-22iXZU300,320,330,340199908-200206

BLACK,058 ,8P0

sub90467-07071

main90467-07071-22iXZU302,307,342200010-200206

BLACK,058 ,199 ,766 ,8P0

sub90467-07071

main90467-07071-22iXZU300,320,330,340200206-200212

BLACK,058

sub90467-07071

main90467-07071-B6iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

sub90467-07071

67601MRETAINER, DOOR TRIM, NO.2

main67771-12050iXZU30#,320,330,34#199907-200212

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-37130-B0iXZU302,307,342200010-200206

MD.CHARCORL,TRIM1#

sub67620-37130

main67620-37140-B0iXZU30#,320,330,34#199907-200212

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

sub67620-37140

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-26010iXZU30#,320,330,34#199907-200212

67651BGRILLE, SPEAKER DOOR, RH

main67651-37040-B0iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

67652BGRILLE, SPEAKER DOOR, LH

main67651-37040-B0iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-37010iXZU30#,320,330,34#199907-200212

sub68171-37011

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-37010iXZU30#,320,330,34#199907-200212

sub68172-37011

7451

7456

8602

9015960047

main90159-60047

9016840093

main90168-40093

9018906018

main90189-06018

16 parts on this diagram · 3 diagrams in section
