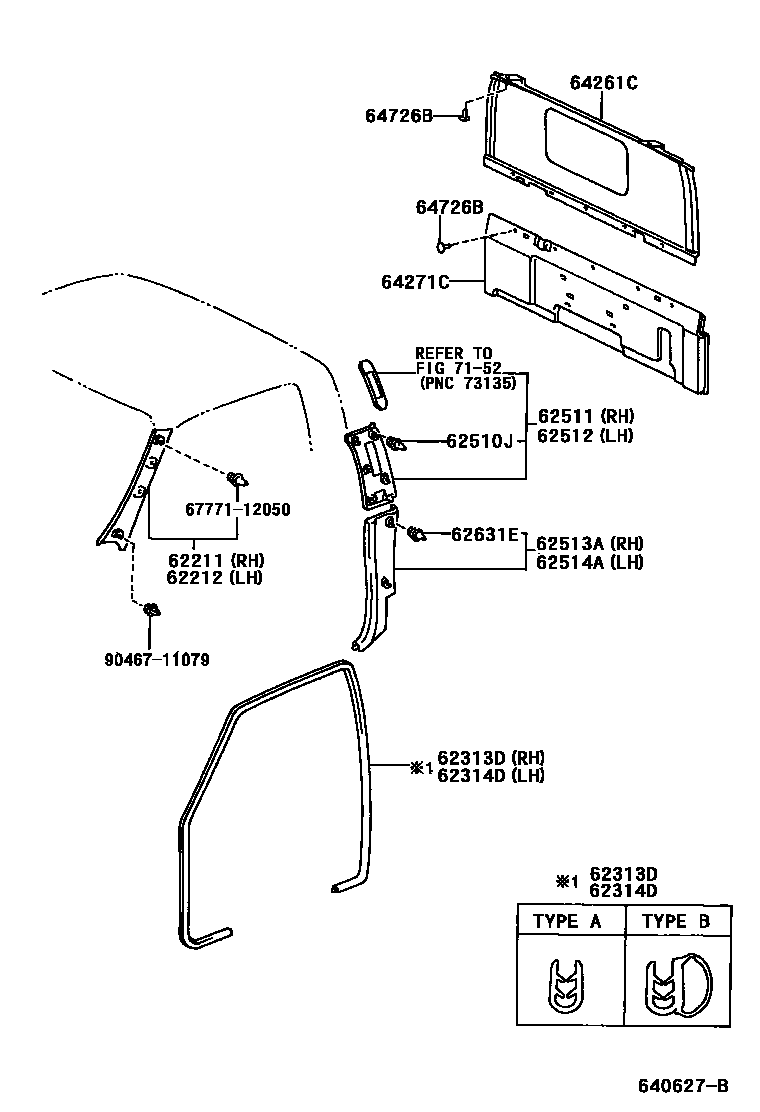

INSIDE TRIM BOARD

62211GARNISH, FRONT PILLAR, RH

main62211-37010-B0iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

sub62211-37011

62212GARNISH, FRONT PILLAR, LH

main62212-37010-B0iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

sub62212-37011

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37040-B0iXZU30#,320,330,34#199907-200212

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

sub62313-37041

main62313-37050-B0iXZU302,307,342200010-200206

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-37040-B0iXZU30#,320,330,34#199907-200212

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

sub62313-37041

main62314-37010-B0iXZU302,307,342200010-200206

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

62510JRETAINER, QUARTER TRIM

main67771-12050iXZU30#,320,330,34#199907-200212

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-37010-B0iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

sub62511-37011

main62511-37020-B0iXZU300,320,330,340199907-200212

MD.CHARCOAL,TRIM1#

sub62511-37021

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-37010-B0iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

sub62512-37011

62513APANEL, QUARTER TRIM, LOWER RH

main62513-37010-B0iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

sub62513-37011

62514APANEL, QUARTER TRIM, LOWER LH

main62514-37010-B0iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

sub62514-37011

62631ERETAINER, QUATER TRIM

main67771-12050iXZU30#,320,330,34#199907-200212

64261CGARNISH, BACK PANEL, UPPER

main64261-37010-B0iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

64271CTRIM, BACK PANEL

main64271-37011-B0iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

sub64271-37012

main64271-37020-B0iXZU302,307,342200010-200206

W(REAR BACK CONSOLE BOX),MD.CHARCOAL,TRIM1#

sub64271-37021

main64271-37040-B0iXZU300,320,330,340199907-200001

MD.CHARCOAL,TRIM1#

main64271-37041-B0iXZU300,320,330,340200001-200207

MD.CHARCOAL,TRIM1#

sub64271-37042

main64271-37042-B0iXZU300,320,330,340200207-200212

MD.CHARCOAL,TRIM1#

main64271-37100-B0iXZU302,307,342200010-200206

W(PASSENGER SEAT BENCH TYPE),MD.CHACOAL,TRIM1#

sub64271-37101

64726BCLIP, DECK REAR TRIM

main64726-37010-B0iXZU302,307,342200010-200206

W(BACK PANEL GARNISH),MD.CHACOAL,TRIM1#

main64726-37010-B0iXZU30#,320,330,34#199907-200212

MD.CHACOAL,TRIM1#

7152

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9046711079

main90467-11079

16 parts on this diagram · 1 diagram in section
