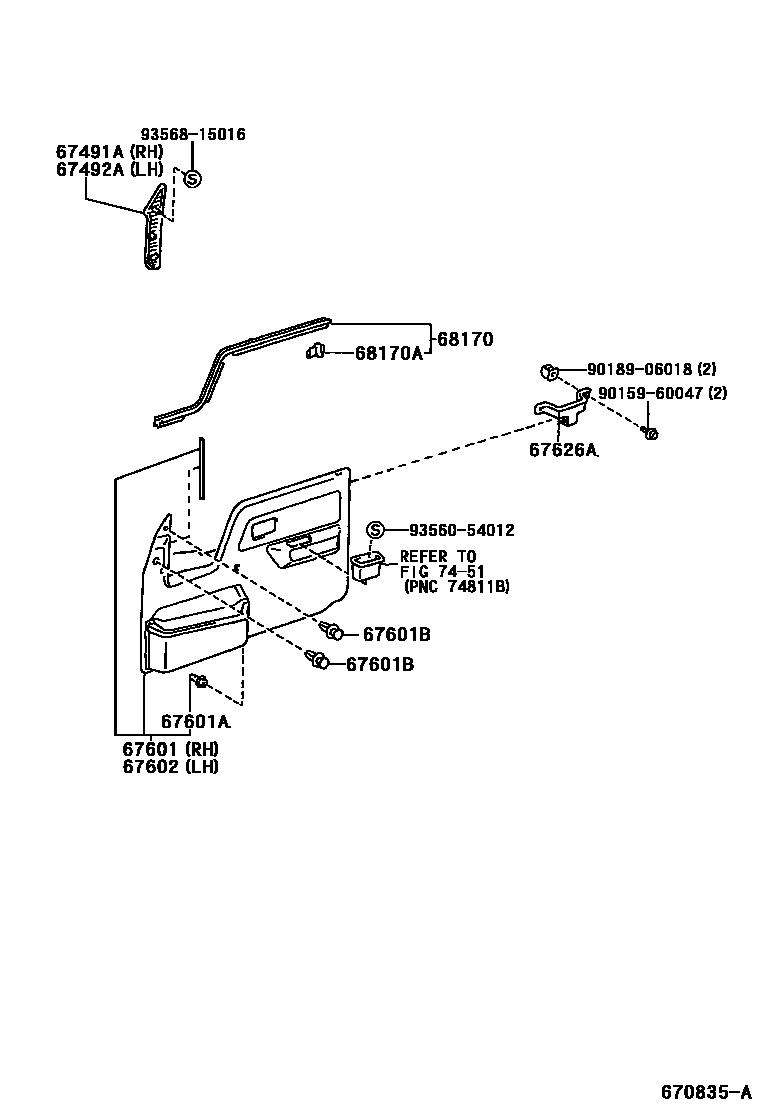

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-37010iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

sub67491-95400

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-37010iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

sub67492-95400

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-37010-B0iBU212..CBU199703-200212

GRAY,TRIM1#

main67610-37030-B2iBU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW);BU102,112,212,213,223..LHD..(DSL,TDEFI)199505

BLUISH GRAY,TRIM1#

main67610-37070-B0iRZU100..15T199908-200212

GRAY,TRIM1#

main67610-95416-B0iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505

GRAY,TRIM1#

main67610-95417-B1iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,BLUISH GRAY,TRIM1#

sub67610-95417

main67610-95417-B2iBU211,221..RHD..40T..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,BLUISH GRAY,TRIM1#

sub67610-95417

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iBU10#,11#,14#,21#,22#,RZU100,YU210199802-200008

main67771-30060iBU10#,11#,14#,21#,22#,RZU100,YU210199505-199802

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06017-B0iBU10#,11#,14#,21#,22#,RZU100,YU210199505

GRAY,TRIM1#

sub90467-06017

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-37010-B0iBU212..CBU199703-200212

GRAY,TRIM1#

main67620-37030-B2iBU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW);BU102,112,212,213,223..LHD..(DSL,TDEFI)199505

BLUISH GRAY,TRIM1#

main67620-37120-B0iRZU100..15T199908-200212

GRAY,TRIM1#

main67620-95422-B0iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505

GRAY,TRIM1#

main67620-95423-B1iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,BLUISH GRAY,TRIM1#

sub67620-95423

main67620-95423-B2iBU211,221..RHD..40T..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,BLUISH GRAY,TRIM1#

sub67620-95423

67626ABRACKET, DOOR TRIM, NO.2

main67626-95400iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95409iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

RH

main68172-95406iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

WHITE

main68211-95401iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

YELLOW

main68211-95402iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

LH,ORANGE

main68212-95400iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

RH,ORANGE

7451

9015960047

main90159-60047

9018906018

main90189-06018

9356054012

main93560-54012

9356815016

main93568-15016

14 parts on this diagram · 3 diagrams in section
