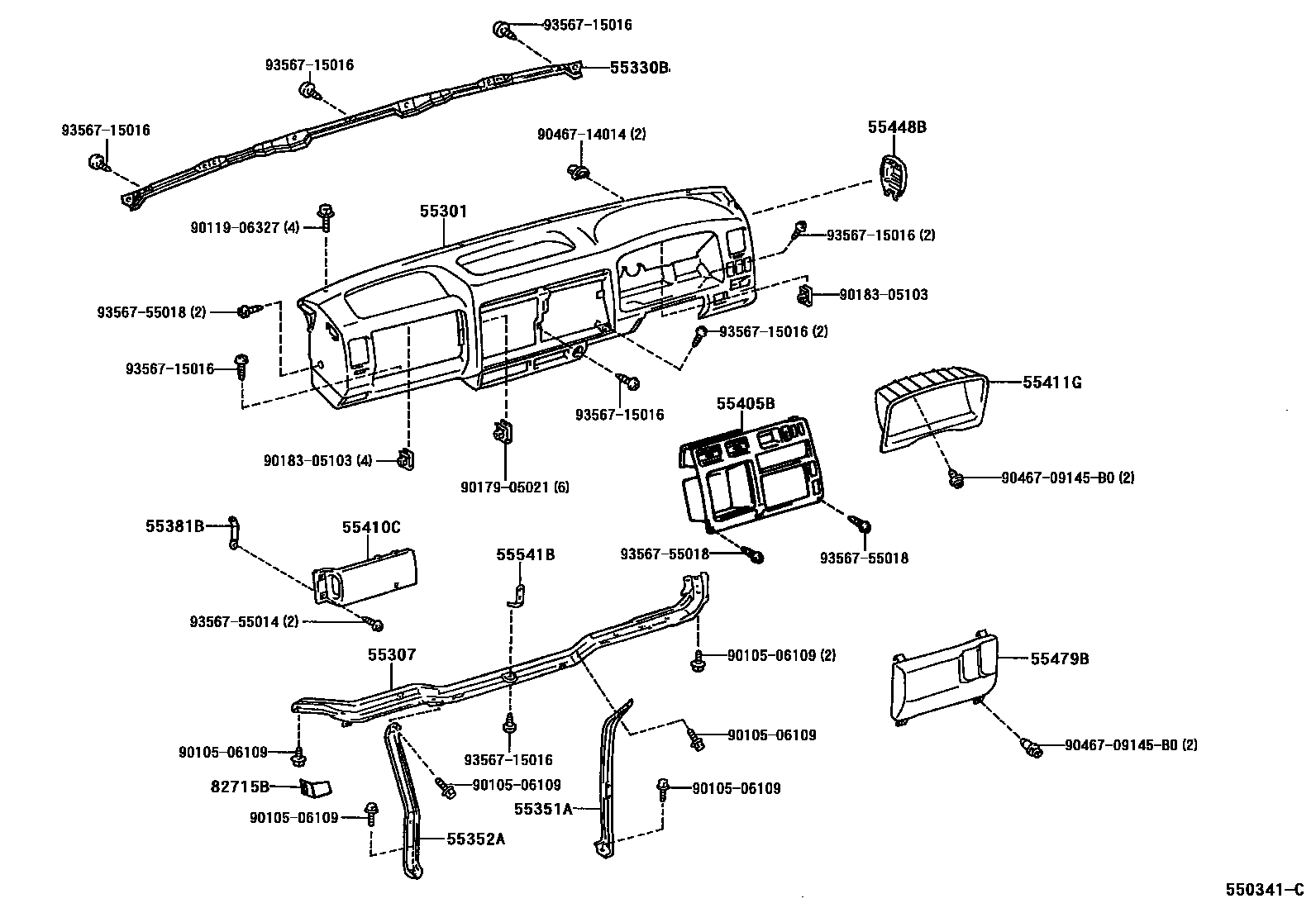

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2
55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55448BCOVER, OIL RESERVOIR TANK, RH
55541BRETAINER, RADIO TUNER OPENING, NO.1
82715BBRACKET, WIRING HARNESS CLAMP
9010506109
main90105-06109
9011906327
main90119-06327
9017905021
main90179-05021
9018305103
main90183-05103
9046709145B0
main90467-09145B0
9046714014
main90467-14014
9356715016
main93567-15016
9356755014
main93567-55014
9356755018
main93567-55018
22 parts on this diagram · 6 diagrams in section
