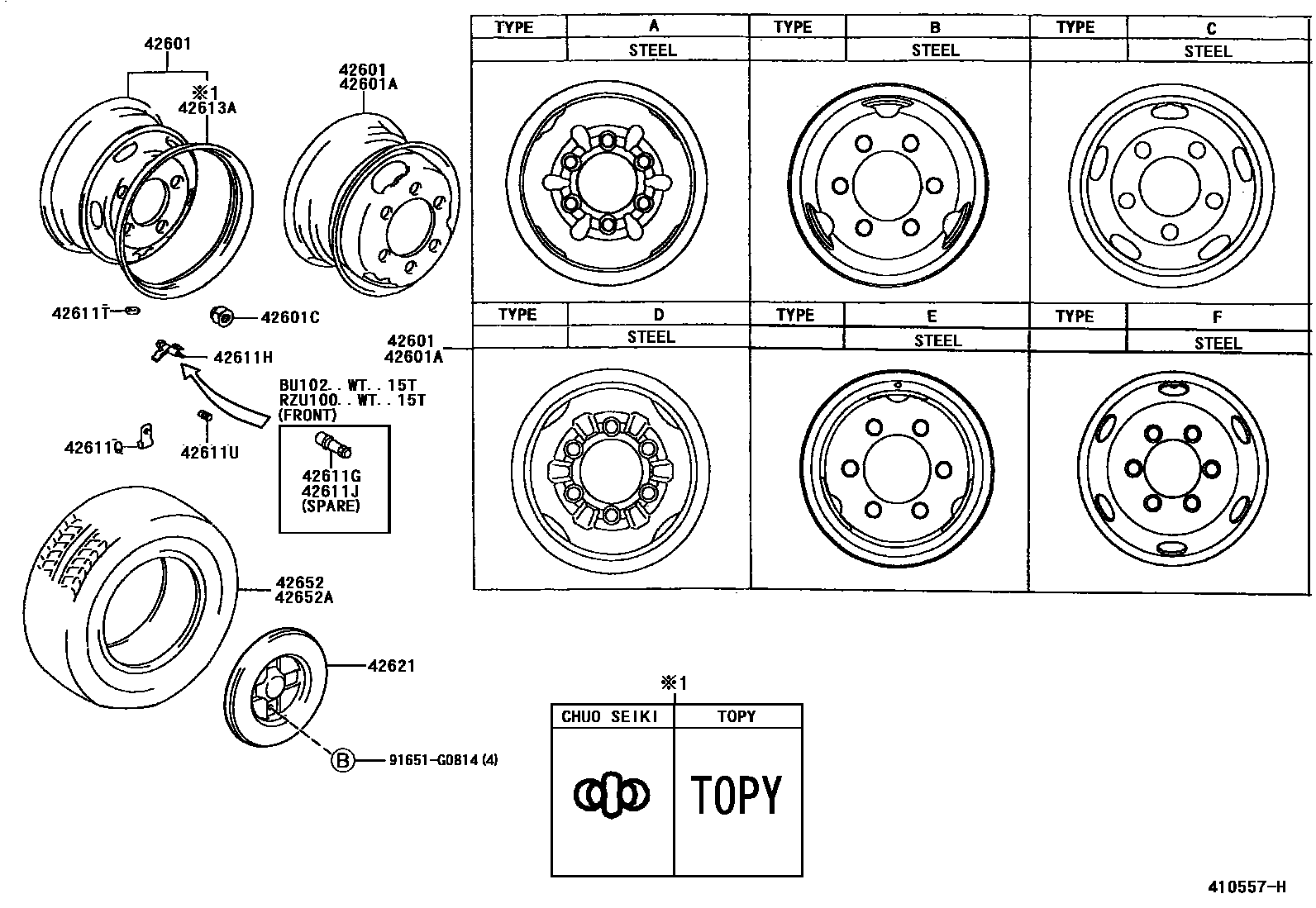

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X4.5J,TYPE E:REFER TO ILLUSTRATION,GRAY
14X5J,TYPE B:REFER TO ILLUSTRATION,GRAY
5.50F-15,TYPE D:REFER TO ILLUSTRATION,GRAY,REAR
5.50F-15,TYPE D:REFER TO ILLUSTRATION,GRAY,FRONT
5.50F-15,TYPE D:REFER TO ILLUSTRATION,GRAY
5.50F-15,TYPE D:REFER TO ILLUSTRATION,THAILAND SPEC,GRAY
5.50F-15,TAIWAN SPEC, TYPE D:REFER TO ILLUSTRATION),GRAY
AFJ 16X5.50F,TYPE C:REFER TO ILLUSTRATION
main42610-36230iBU142..EUR;BU101..WT..GEN;BU212..30T..TD..IV3;BU111,112,YU210..IV3;BU100,211..WT..(20T,30T)..(GEN,SA);BU102,140,141,212..(25T,30T)..DSL..(ARL,EUR,GEN,TAIW)199505
AFJ 16X5.50F,TYPE C:REFER TO ILLUSTRATION, W(7.00-16-10PRLT,7.00R16-10PRLT)
6.00GSX16, #,TYPE F:REFER TO ILLUSTRATION
6.00GS-15,TYPE D:REFER TO ILLUSTRATION,GRAY
5.50F-16,TYPE A:REFER TO ILLUSTRATION,GRAY
5.50F-16,TYPE C:REFER TO ILLUSTRATION
AFKG 16X5.50F,TYPE C:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
5.50F-15,TAIWAN SPEC, TYPE D:REFER TO ILLUSTRATION),GRAY
42601CNUT, HUB (FOR AXLE)
main42633-55030iBU212..25T,30T;BU101,141,211,213,223,YU210..30T;BU102,142,RZU100..(20T,25T,30T)..(EUR,GEN)199505-199908
REAR RH
main42634-55030iBU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505-199908
REAR LH
REAR RH
REAR LH
FRONT RH
REAR RH
RH
LH
REAR LH
FRONT LH
FRONT RH
main90942-01024iBU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505-199905
FRONT LH
main90942-01093iBU101,102,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199905-199911
FRONT RH
main90942-01094iBU101,102,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199905-199911
FRONT LH
FRONT RH
FRONT LH
42611GVALVE (FOR TUBELESS TIRE)
42611HEXTENSION, VALVE
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611QCLIP (FOR TUBE)
42611TWASHER (FOR TUBE)
42611UCAP, TIRE VALVE
42613ARING, DISC WHEEL SIDE
W(5.50F-15 WHEEL), TOPY
TOPY
FRONT
W(6.00GS-15 WHEEL), T0PY
W(6.00GS-15 WHEEL), TOPY
REAR,TOPY
W(6.00GS-15 WHEEL),CHUO SEIKI
REAR,CHUO SEIKI
main42613-36080iBU10#,111,112,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505
W(5.00F-16 WHEEL),TOPY
main42613-36080iBU10#,111,112,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505
TOPY
TOPY
42652TIRE
7.50-15-12,LUG
7.00R15-8,RIB
7.00R15-10,*B/S
6.50-16-8,LUG
7.00-15-8,LUG
6.50-16-10,LUG
175R14-8,RIB
7.00-16-10,LUG
6.50R16-10
7.50-16-12
main42605-36280iBU222..RHD..GEN;BU211..LHD..30T..IV3;BU212..RHD..(GEN,SA)..IV3;BU211,221,222..40T..DSL..(GEN,SA)199505-199708
7.50-16-10,RIB
7.50-16-12,RIB
7.00-16-12,LUG
195R14-8,RIB
7.00R15-12,RIB
7.00R16-12,*Y/H
7.00-16-10,RIB
7.00R16-10,RIB
7.50R16-10
6.50-16-10
7.00R16-10,LUG
7.50R16-12
6.50R15-8
6.50R15-8,TAIWAN SPEC,FRONT
7.00R15-10,TAIWAN SPEC,REAR
7.00R15-10
6.50-16-8,RIB,SAUDI ARABIA,GULF SPEC
6.50-16-10,RIB,SAUDI ARABIA,GULF SPEC
6.50-16-10,LUG,SAUDI ARABIA,GULF SPEC
7.00-15-8,RIB,SAUDI ARABIA,GULF SPEC
7.00R15-8,RIB,SAUDI ARABIA,GULF SPEC
7.00-16-10,RIB,SAUDI ARABIA,GULF SPEC
7.00-16-12,RIB,SAUDI ARABIA,GULF SPEC
7.00-16-12,LUG,SAUDI ARABIA,GULF SPEC
7.00-16-12,RIB,SAUDI ARABIA,GULF SPEC
6.50R16-10,SAUDI ARABIA,GULF SPEC
7.50-16-10,RIB,SAUDI ARABIA,GULF SPEC
7.50-16-12,RIB,SAUDI ARABIA,GULF SPEC
7.50-16-12,LUG,SAUDI ARABIA,GULF SPEC
7.50R16-10,SAUDI ARABIA,GULF SPEC
7.50-15-12,RIB,SAUDI ARABIA,GULF SPEC
7.00R15-12,RIB,SAUDI ARABIA,GULF SPEC
7.50-15-14,RIB,SAUDI ARABIA,GULF SPEC
7.00R16-10,RIB,*D/L,SAUDI ARABIA,GULF SPEC
185R14-8,*B/S
7.00-16-12,RIB
7.50-15-10,RIB
7.50-15-12,RIB
7.50-15-14,RIB
7.50-16-12,LUG
7.00-15-8,RIB
6.50-16-8,RIB
6.50-16-10,RIB
main98961-70165iBU101..WT..GEN;BU141..25T..GEN;BU100,140,211,YU210..WT..(20T,25T,30T)..(GEN,SA)199505
7.00-16-10,RIB
7.00-16-12,RIB
6.50-16-10
42652ATIRE (FOR SPARE)
7.00R15-10
91651G0814
main91651-G0814
14 parts on this diagram · 2 diagrams in section
