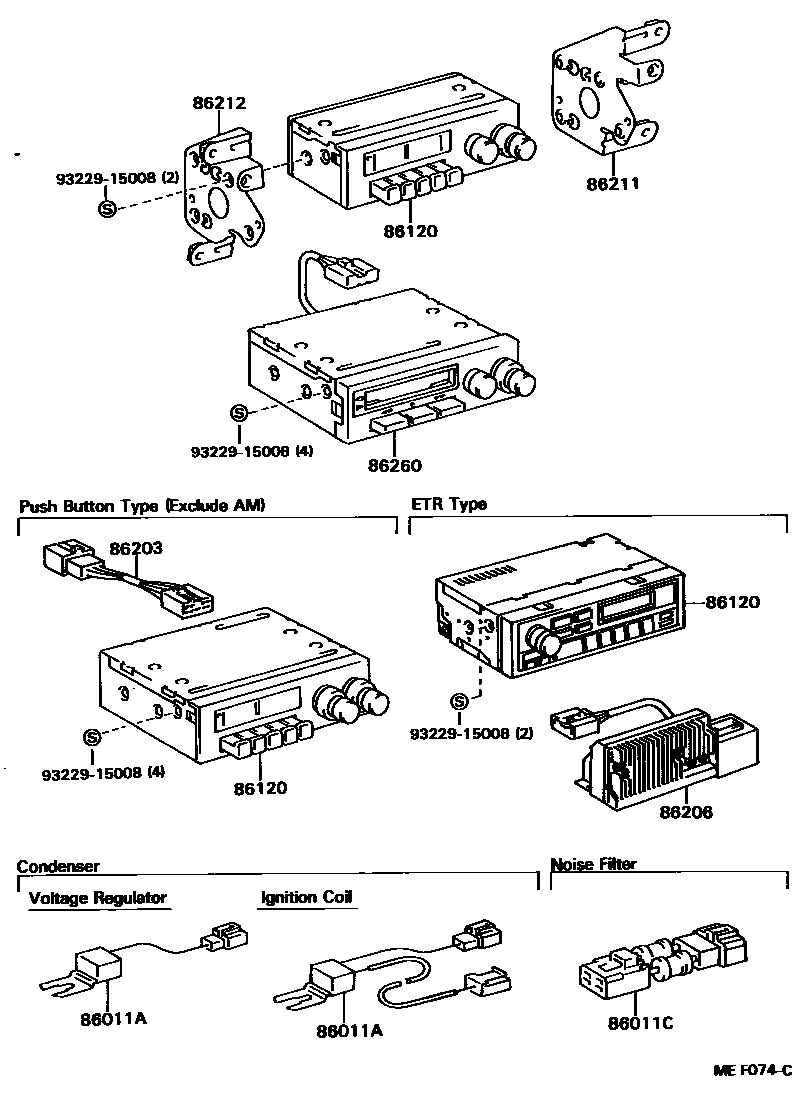

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04040iBU65..CBU;BU60,61,62,63,7#,8#198409-198708

VOLTAGE REGULATOR

86011CFILTER, NOISE

main90980-05049iBU65..CBU;BU60,61,62,63,7#,8#..ARL,EUR,GEN,GHD198409-198708

W/AM/FM MPX OR LW/MW/UKW/ARI

86120RECEIVER ASSY, RADIO

main86120-16460iBU60,61,62,63,7#,8#..GEN,GHD198608-198708

MATSUSHITA,ID=5108,AM/SW

main86120-16530iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA198608-198708

MATSUSHITA,ID=5010,AM

main86120-17010iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA198409-198608

AM

main86120-20470iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD198501-198608

AM/FM MPX

main86120-22600iBU60,61,62,63,7#,8#..GEN,GHD198409-198608

AM/SW

main86120-32110iBU75,85..EUR198610-198708

LW/MW/UKW-MPX/ARI,ETR

main86120-32240iBU75,85..EUR198610-198708

LW/MW/UKW,ETR

main86120-32280iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD198608-198708

MATSUSHITA,AM/FM MPX

main86120-89126iBU6#,7#,8#..ARL,GEN,GHD198409-198501

AM/FM MPX

main86120-95403iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN; BU75,85..EUR198409-198608

AM; AM,CHINA OR ALGERIA SPEC

main86120-95408iBU75,85..EUR198409-198708

FUJITSU TEN,LW/MW/UKW/ARI

main86120-95410iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN; BU75,85..EUR198608-198708

MATSUSHITA,AM; MATSUSHITA,AM,CHINA OR ALGERIA SPEC

86203WIRE, RADIO

main86203-16100iBU75,85..EUR198608-198708

LW/MW/UKW/ARI

86206CONVERTER SUB-ASSY, VOLTAGE

main86206-90K01iBU75,85..EUR198610-198708

86211BRACKET, RADIO, NO.1

main86211-95406iBU6#,70,80,81,82; BU75,76,85,86..RHD198409-198708

86212BRACKET, RADIO, NO.2

main86212-95406iBU6#,70,80,81,82; BU75,76,85..LHD198409-198708

86260TAPE PLAYER ASSY

main86260-17011iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD198608-198708

main86260-19055iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD198409-198608

main86260-95400iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198608

CHINA OR ALGERIA SPEC

main86260-95401iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198608-198708

CHINA OR ALGERIA SPEC

9322915008

main93229-15008

9 parts on this diagram · 1 diagram in section
