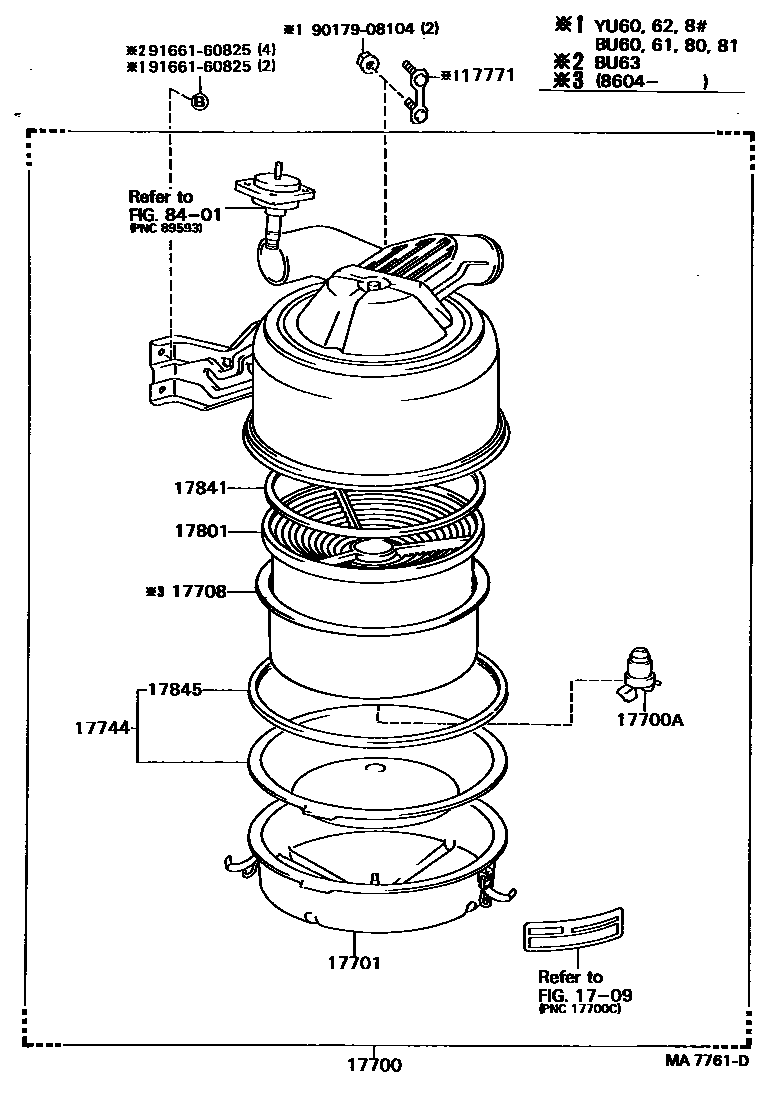

AIR CLEANER

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1 0010 1 0012 1 0013 1 0015 1 0016 1

1709

17700CLEANER ASSY, AIR

main17700-56330iB,11B..BU60,61,63,80,81..RHD198409-198604

sub17700-56331

main17700-56331iB,11B..BU60,61,80,81..RHD..(GEN,GHD,SA)198604-198708

main17700-56340iB,11B,13B..BU60,61,62,70,80,81..LHD198409-198604

sub17700-56341

main17700-56341iB,11B,13B..BU60,61,62,70,80,81..LHD198604-198708

main17700-56350iB,11B..BU60,61,80,81..T3198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17700-56360iB,11B,13B..BU60,61,80,81,82..T3..(GEN,GHD)198409-198708

SCHNORKEL TYPE & OIL BATH

main17700-56370iB,11B..BU63,65..CBU198508-198708

main17700-56380i11B..BU65..IV3198508-198708

SCHNORKEL TYPE & OIL BATH

main17700-58110iB,13B..BU75,85..T3..(ARL,EUR)198409-198708

main17700-58120iB,11B,13B..BU75,76,85..GEN..(CBU,IV3)198409-198708

main17700-58130i11B,13B..BU85,86..TW1198510-198708

main17700-58140iB,11B,13B..BU75,76,85..GEN..(CBU,IV3)198409-198708

SCHNORKEL TYPE & OIL BATH

sub17700-58260

main17700-58150i13B..BU85..IV1198409-198708

17700ANUT, WING(FOR AIR CLEANER)

main90099-05187iB,11B,13B..BU60,61,62,70,80,81..GEN,GHD198409-198604

main90175-06003iB,11B,13B..BU60,61,62,70,80,81..GEN,GHD,SA198604-198708

main90175-08008iB,11B..BU60,61,80,81..T3198409-198708

SCHNORKEL TYPE

main90175-08008iB,11B,13B..BU62,75,76,82,85,86..CBU,IV3198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main90175-08008iB,11B..BU63,65..CBU198508-198708

main94271-00800i11B..BU65..IV3198508-198708

main94271-00800iB,11B,13B..BU60,61,75,76,80,81,82,85..T3..(GEN,GHD)198409-198708

SCHNORKEL TYPE & OIL BATH

17701CASE SUB-ASSY, AIR CLEANER

main17701-56130iB,11B..BU60,61,80,81..RHD..(GEN,GHD,SA)198409-198708

main17701-56150iB,11B..BU63,65..CBU198508-198708

main17701-56150iB,11B..BU60,61,80,81..T3198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17701-56160iB,11B,13B..BU60,61,62,70,80,81..LHD198409-198708

main17701-58040iB,11B,13B..BU75,76,85,86..CBU,IV3198409-198708

main17702-56060i11B..BU65..IV3198409-198708

SCHNORKEL TYPE & OIL BATH

main17702-58010iB,11B,13B..BU75,76,85..GEN198409-198708

SCHNORKEL TYPE & OIL BATH

sub17702-58020

17708BAFFLE SUB-ASSY, AIR CLEANER

main17708-56010iB,11B..BU60,61,80,81..RHD..(GEN,GHD,SA)198604-198708

17744CUP, PRECLEANER

main17744-56010iB,11B,13B..BU6#,70,80,81198409-198708

17771BRACKET, AIR CLEANER INLET DUCT

main17771-56020iB..BU60..ARL..CBU198409-198708

main17771-58020iB,11B..BU63,65198508-198708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56010iB,11B,13B..BU60,61,75,76,80,81,82,85..T3..(GEN,GHD)198409-198708

SCHNORKEL TYPE & OIL BATH

main17801-56020iB,11B..BU63,65..CBU198508-198708

main17801-56020i13B..BU62,82198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17801-56030iB,11B,13B..BU60,61,62,70,80,81..GEN,GHD198409-198604

sub17801-56031

main17801-56031iB,11B,13B..BU60,61,62,70,80,81..GEN,GHD,SA198604-198708

main17801-68020iB,11B,13B..BU75,76,85,86..CBU,IV3198409-198708

17841GASKET, FILTER ELEMENT

main17841-44030iB,11B..BU60,61,80,81..T3198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17841-44030iB,11B..BU63,65..CBU198508-198708

main17841-56020iB,11B,13B..BU60,61,75,76,80,81,82,85..GEN,GHD198409-198708

SCHNORKEL TYPE & OIL BATH

main17841-56030iB,11B,13B..BU6#,70,80,81198409-198604

main17841-56031iB,11B,13B..BU60,61,62,70,80,81..GEN,GHD,SA198604-198708

main17841-68010iB,11B,13B..BU75,76,85,86..CBU,IV3198409-198708

17845GASKET, AIR CLEANER CAP

main17845-56020iB..BU60..ARL..IV3198409-198708

SCHNORKEL TYPE & PAPER ELEMENT

main17845-56020iB,11B,13B..BU60,61,62,80,81,82..T3..(GEN,GHD,SA)198409-198708

SCHNORKEL TYPE

main17845-56020iB,11B,13B..BU60,61,62,80,81,82..T3..(GEN,GHD,SA)198409-198708

SCHNORKEL TYPE & OIL BATH

main17845-56020i11B..BU65..IV3198508-198708

main17845-56050iB,11B,13B..BU60,61,62,70,80,81..GEN,GHD,SA198409-198708

main17845-68020iB,11B,13B..BU75,76,85,86..CBU,IV3198409-198708

sub17845-17010

8401

9017908104

main90179-08104

9166160825

main91661-60825

13 parts on this diagram · 12 diagrams in section
