Toyota DYNA150 — BRAKE TUBE & CLAMP

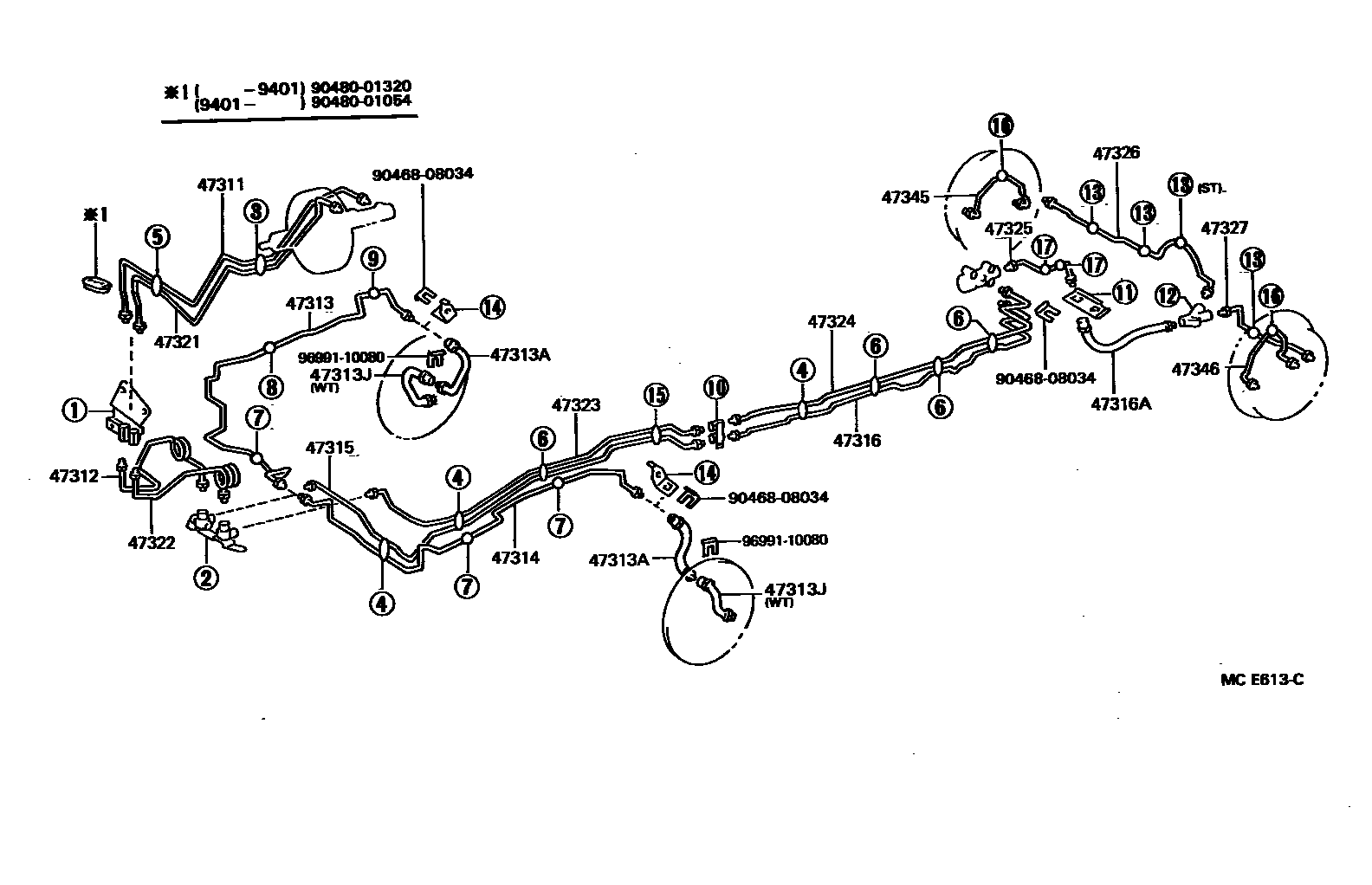

Parts diagram

47311TUBE, FRONT BRAKE, NO.1

47312TUBE, FRONT BRAKE, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

47314TUBE, FRONT BRAKE, NO.4

47315TUBE, FRONT BRAKE, NO.5

47316TUBE, FRONT BRAKE, NO.6

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321TUBE, REAR BRAKE, NO.1

47322TUBE, REAR BRAKE, NO.2

47323TUBE, REAR BRAKE, NO.3

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47326TUBE, REAR BRAKE, NO.6

47327TUBE, REAR BRAKE, NO.7

47345TUBE, WHEEL CYLINDER, REAR RH

47346TUBE, WHEEL CYLINDER, REAR LH

9046808034

9048001054

9048001320

9699110080

22 parts on this diagram · 3 diagrams in section

BRAKE TUBE & CLAMP for Toyota DYNA150

This section contains 68 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota DYNA150. Key components include: BUSH & BOOT KIT, LOAD SENSING SPRING, TUBE, FRONT BRAKE, NO.1, WAY, NO.1(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.2, WAY, NO.2(FOR FRONT BRAKE TUBE).
