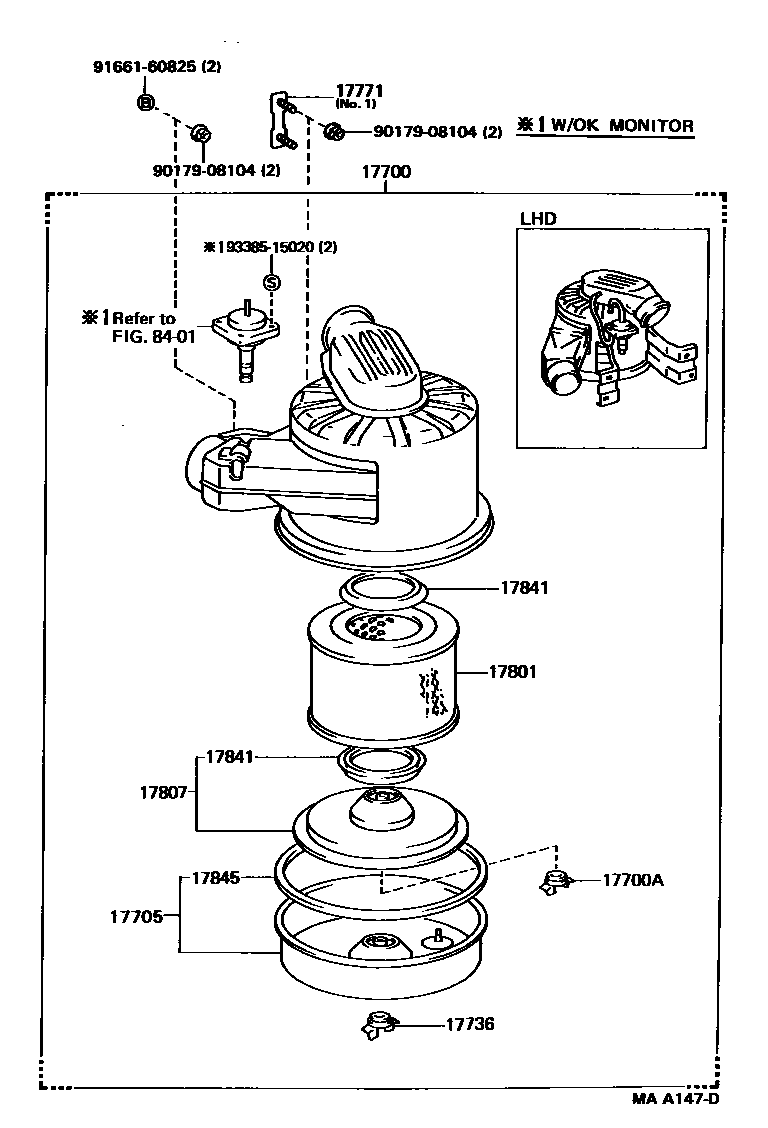

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0006 1

17700CLEANER ASSY, AIR

main17700-54450i2L..LY60198708-198808

main17700-54520i3L..LY61198808-199505

main17700-54550i3L..LY61..ST198808-199207

main17700-73160i3Y..YY61198708-198808

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i2L,3L..LY6#198708-199505

17705CAP SUB-ASSY, AIR CLEANER

main17701-54200i2L..LY60198708-198808

main17705-54260i3L..LY61198808-199505

17736NUT, AIR CLEANER CASE

main90175-06003i2L,3L..LY6#198708-199505

17771BRACKET, AIR CLEANER INLET DUCT

main17771-54010i3Y..YY61198708-198808

NO.2

main17771-54050i3L..LY61198808-199505

NO.2

main17771-71010i3Y..YY61198708-199505

NO.1

main17771-71010i2L..LY60198708-199505

N0.1

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31060i3Y..YY61198708-198808

main17801-54070i2L..LY60198708-198808

main17801-56020i3L..LY61198808-199505

main17801-58010i3L..LY61..ST198808-199207

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-54010i3Y..YY61198708-198808

main17807-58010i3L..LY61198808-199505

17841GASKET, FILTER ELEMENT

main17841-44030i3L..LY61198808-199505

main17841-54010i2L..LY60198708-198808

17845GASKET, AIR CLEANER CAP

main17845-54010i3Y..YY61198708-198808

main17845-56020i3L..LY61198808-199505

8401

9017908104

main90179-08104

9166160825

main91661-60825

9338515020

main93385-15020

13 parts on this diagram · 5 diagrams in section
