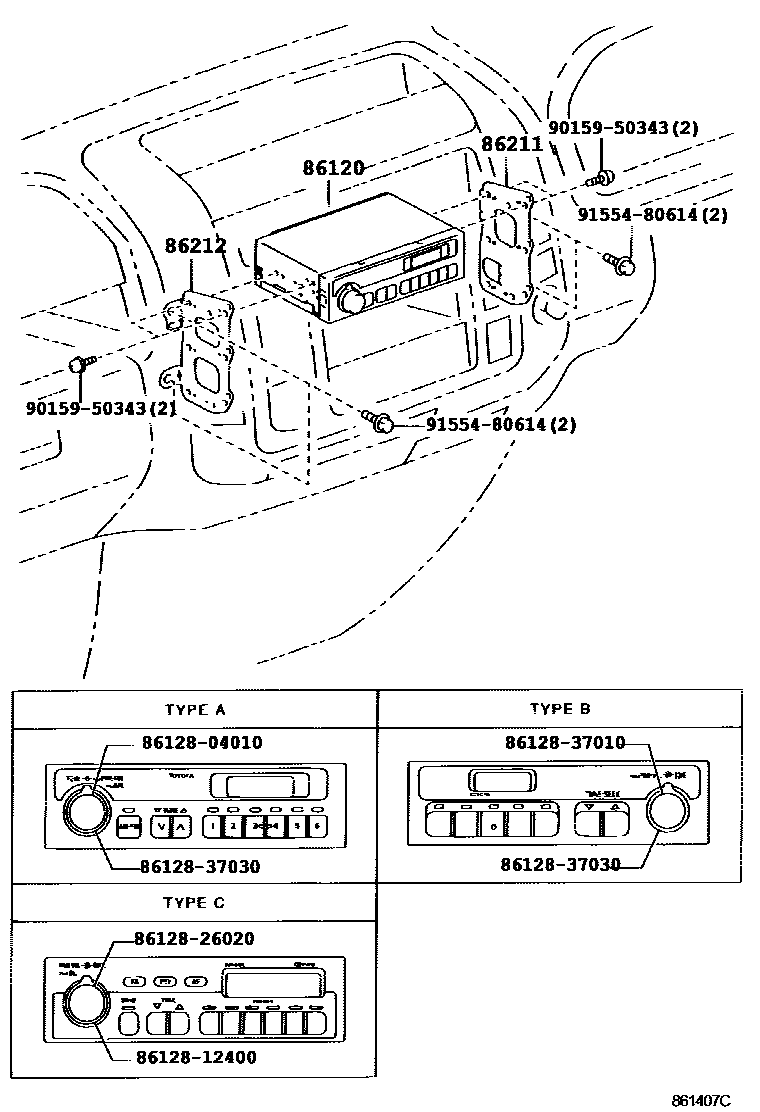

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-10460iLY225,235..ST200107-201610

MATSUSHITA, ID=52202,TYPE A:REFER ILLUST.

main86120-25100iLY235201610

CLARION

main86120-35110iLY225,235..ST200107-201610

MATSUSHITA,ID=52101,TYPE B:REFER ILLUST.

main86120-60220iKDY22#,23#,25#,26#..EUR200108-201206

FUJITSU TEN,ID=13302,TYPE C:REFER ILLUST.

86211BRACKET, RADIO, NO.1

main86211-37050iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main86211-37060iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main86211-37110iKDY221,231,LY23#201610-202111

86212BRACKET, RADIO, NO.2

main86212-37030iKDY220,230,250,LY22#,23#..RHD200107-200606

main86212-37031iKDY22#,23#,25#,LY225,23#..RHD200607-201610

main86212-37040iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main86212-37090iKDY221,231,LY23#201610-202111

8612804010KNOB, RADIO RECEIVER

main86128-04010

8612812400KNOB, RADIO RECEIVER

main86128-12400

8612826020KNOB, RADIO RECEIVER

main86128-26020

8612837010KNOB, RADIO RECEIVER

main86128-37010

8612837030KNOB, RADIO RECEIVER

main86128-37030

9015950343

main90159-50343

9155480614

main91554-80614

10 parts on this diagram · 3 diagrams in section
