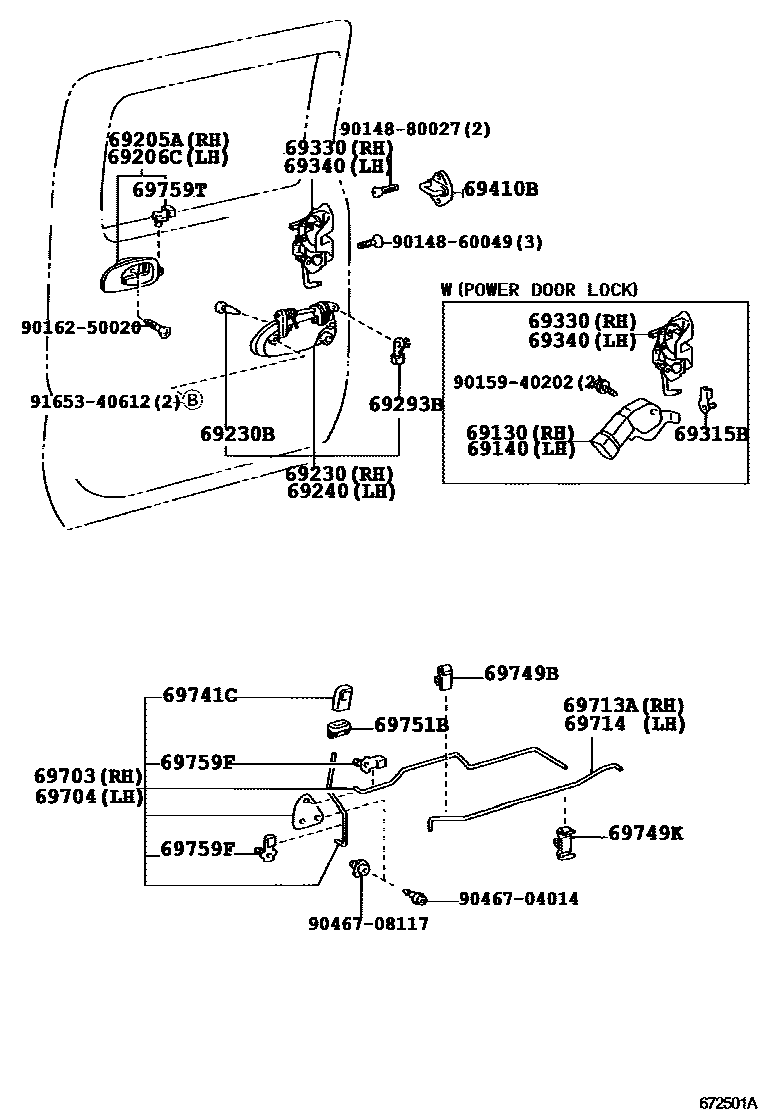

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-37040iKDY23#,25#,26#..10T,125T200108-201502

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-37040iKDY23#,25#,26#..10T,125T200108-201502

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-37020-B0iKDY23#,25#,26#..10T,125T200108-201502

MD.CHARCOAL,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-37020-B0iKDY23#,25#,26#..10T,125T200108-201502

MD.CHARCOAL,TRIM1#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-37010iKDY23#,25#,26#..10T,125T200108-201502

NO PAINT REQ.

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04015iKDY23#,25#,26#..10T,125T200108-201502

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-37010iKDY23#,25#,26#..10T,125T200108-201502

NO PAINT REQ.

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12050iKDY23#,25#,26#..10T,125T200108-201502

RH

main69293-12060iKDY23#,25#,26#..10T,125T200108-201502

LH

69315BRETAINER, REAR DOOR LOCK SOLENOID

main69315-33030iKDY23#,25#,26#..10T,125T200108-201502

69330LOCK ASSY, REAR DOOR, RH

main69330-37010iKDY23#,25#,26#..10T,125T200108-201502

main69330-37020iKDY23#,25#,26#..10T,125T200108-201502

W(POWER DOOR LOCK)

69340LOCK ASSY, REAR DOOR, LH

main69340-37010iKDY23#,25#,26#..10T,125T200108-201502

main69340-37050iKDY23#,25#,26#..10T,125T200108-201502

W(POWER DOOR LOCK)

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110iKDY23#,25#,26#..10T,125T200108-201502

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-37010-B0iKDY23#,25#,26#..10T,125T200108-201502

MD.CHARCOAL,TRIM1#

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-37010-B0iKDY23#,25#,26#..10T,125T200108-201502

MD.CHARCOAL,TRIM1#

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-37010iKDY23#,25#,26#..10T,125T200108-201502

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-37010iKDY23#,25#,26#..10T,125T200108-201502

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-12040-B3iKDY23#,25#,26#..10T,125T200108-201502

MD.CHARCOAL,TRIM1#

sub69741-12040

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iKDY23#,25#,26#..10T,125T200108-201502

69749KCLAMP, REAR DOOR LOCK

main69749-12030iKDY23#,25#,26#..10T,125T200108-201502

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-12020-B2iKDY23#,25#,26#..10T,125T200108-201502

MD.CHARCOAL,TRIM1#

sub69751-20031

sub69751-12020

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24030iKDY23#,25#,26#..10T,125T200108-201502

RED

main69759-24040iKDY23#,25#,26#..10T,125T200108-201502

PINK

main69759-24080iKDY23#,25#,26#..10T,125T200108-201502

YELLOW

main69759-24090iKDY23#,25#,26#..10T,125T200108-201502

LIGHT BROWN

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iKDY23#,25#,26#..10T,125T200108-201502

RH

main69759-24070iKDY23#,25#,26#..10T,125T200108-201502

LH

9014860049

main90148-60049

9014880027

main90148-80027

9015940202

main90159-40202

9016250020

main90162-50020

9046704014

main90467-04014

9046708117

main90467-08117

9165340612

main91653-40612

29 parts on this diagram · 1 diagram in section
