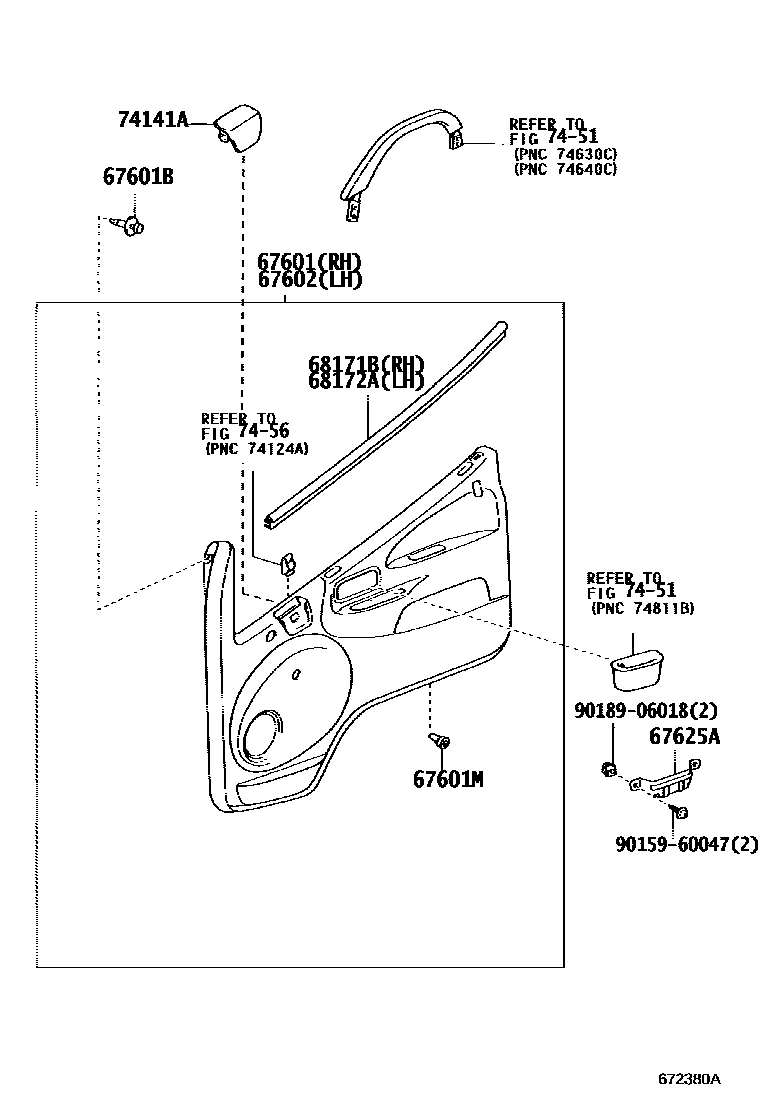

FRONT DOOR PANEL & GLASS

0001 1DOOR TRIM 0002 1DOOR PANEL 0003 1TRIM CODE

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-25080-B0iKDY220,230,250,260,LY22#,23#200107-200408

W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#

sub67610-37120

main67610-25090-B0iLY235..WT;KDY220,230,250,260200107-200409

MD.CHARCOAL,TRIM1#

sub67610-37130

main67610-37080-B6iKDY221,231,LY23#..RHD201610-202111

W/O(POWER WINDOW),GRAY,TRIM1#

sub67610-37080

main67610-37090-B6iKDY221,231201610

GRAY,TRIM1#

sub67610-37090

main67610-37120-B0iKDY22#,23#,25#,26#,LY22#,23#200409-201505

W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#

main67610-37120-B2iLY225;LY235..LHD201505-201610

W/O(POWER WINDOW),GRAY,TRIM1#

main67610-37130-B0iLY235..WT;KDY22#,23#,25#,26#200409-201505

MD.CHARCOAL,TRIM1#

main67610-37130-B2iKDY221,231201505-201610

GRAY,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07071-B6iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

sub90467-07071

main90467-07071-B6iLY225,23#201505-201610

MD.CHARCOAL,TRIM12

sub90467-07071

main90467-07071-P4iKDY221,231201505-202111

GRAY,TRIM1#

sub90467-07071

main90467-07071-P4iLY225,23#201505-201610

GRAY,TRIM13

sub90467-07071

67601MRETAINER, DOOR TRIM, NO.2

main67771-12050iKDY220,230,250,260,LY22#,23#200107-200308

main90467-09206iLY23#..RHD201102-202111

main90467-10188iKDY22#,23#,25#,26#,LY22#,23#200308-201101

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-25080-B0iKDY220,230,250,260,LY22#,23#200107-200408

W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#

sub67620-37170

main67620-25090-B0iLY235..WT;KDY220,230,250,260200107-200409

MD.CHARCOAL,TRIM1#

sub67620-37180

main67620-37130-B6iLY235..LHD201610

W/O(POWER WINDOW),GRAY,TRIM1#

sub67620-37130

main67620-37170iKDY22#,23#,25#,26#,LY225,23#200607-200708

sub67620-37130

main67620-37170-B0iKDY221,231,251,261200708-201505

MD. CHARCOAL,TRIM1#

sub67620-37130

sub67620-37170

main67620-37170-B0iKDY221,231,251,261200409-201505

W/O(POWER WINDOW),MD. CHARCOAL,TRIM1#

sub67620-37130

sub67620-37170

main67620-37170-B5iLY235..LHD201505-202111

W/O(POWER WINDOW),GRAY,TRIM1#

sub67620-37130

sub67620-37170

main67620-37180-B4iLY235..WT;KDY22#,23#,25#,26#200409-201505

MD.CHARCOAL,TRIM1#

sub67620-37160

sub67620-37180

main67620-37180-B5iKDY221,231201505

GRAY,TRIM1#

sub67620-37160

sub67620-37180

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-26010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-37010iKDY220,230,250,260,LY22#,23#200107-200403

sub68171-37011

main68171-37011iKDY22#,23#,25#,26#,LY22#,23#200403-202111

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-37010iKDY220,230,250,260,LY22#,23#200107-200403

sub68172-37011

main68172-37011iKDY22#,23#,25#,26#,LY22#,23#200403-202111

74141AGARNISH, FRONT ASH RECEPTACLE, NO.1

main74141-25010-B0iLY225,23#201505-201610

MD.CHARCOAL,TRIM12

main74141-25010-B0iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

main74141-25010-B1iKDY221,231,LY23#201505-202111

GRAY,TRIM1#

main74141-25010-B1iLY225,23#201505-201610

GRAY,TRIM13

7451

7456

9015960047

main90159-60047

9018906018

main90189-06018

12 parts on this diagram · 3 diagrams in section
