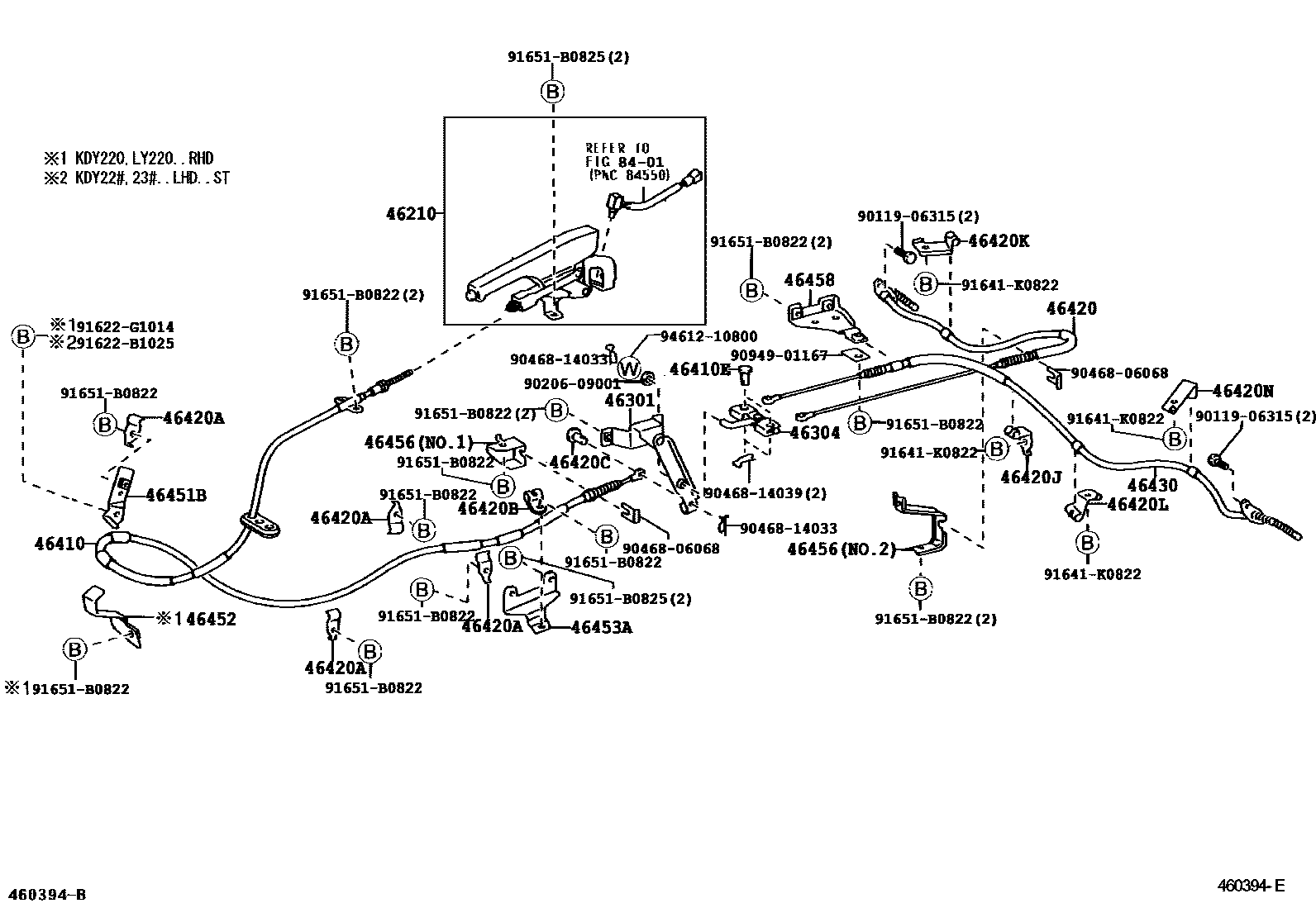

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0008 1 0010 1 0011 1

46210LEVER ASSY, PARKING BRAKE

main46210-25020-B0iKDY220,230,250,LY22#,23#..RHD200107-200210

DK.CHARCOAL,TRIM1#

main46210-37031iKDY220,230,250,260,LY225,235..LHD200209-200210

sub46210-37032

main46210-37031-B0iKDY220,230,250,260,LY225,235..LHD200107-200209

DK.CHARCOAL,TRIM1#

sub46210-37032

main46210-37032-B0iKDY22#,23#,25#,26#,LY225,235..LHD200210-201505

DK.CHARCOAL,TRIM1#

main46210-37032-C0iLY225,235..LHD201505

BLACK,TRIM13

main46210-37091-B0iKDY22#,23#,25#,LY22#,23#..RHD200210-201505

DK.CHARCOAL,TRIM1#

main46210-37091-C0iLY225,23#..RHD201505-202111

BLACK,TRIM1#

main46210-37091-C0iKDY221,231201505-202111

BLACK,TRIM13

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-25020iKDY22#,23#,LY22#..ST200107-201609

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-25010iKDY22#,23#,LY22#..ST200107-201609

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-25150iKDY221,23#,25#,LY230..RHD..WT200107-200709

main46410-25151iKDY221,231,251,LY230..RHD..WT200709-202111

main46410-25160iKDY23#,25#,26#..LHD..WT200108-200709

main46410-25161iKDY231,251,261..LHD..WT200709-201502

main46410-25170iLY235..RHD200107

main46410-25180iLY235..LHD200107

main46410-25190iKDY22#,LY220..RHD..ST200107-200709

main46410-25200iKDY22#,23#..LHD..ST200108-200709

main46410-25201iKDY221,231..LHD..ST200709-201502

main46410-25210iLY225..RHD200107-201609

main46410-25220iLY225..LHD200107-201609

main46410-25240iKDY221..RHD..EUR200709-201502

46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)

main90240-10044iKDY22#,23#,LY22#..ST200107-201609

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-25310iKDY230,250,260,LY230..WT200107-200204

main46420-25350iLY235200107

main46420-25390iKDY22#,LY22#..ST200107-201609

main46420-25400iKDY23#..ST200108-201502

main46420-25430iKDY221,231..GEN200204-202111

main46420-25490iKDY221,231..GEN201109

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-25010iKDY22#,23#,25#,26#,LY220,230200107-202111

main46411-60040iLY225200107-201609

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-25030iLY225200107-201609

main46411-60040iKDY22#,23#,LY220..ST200107-201502

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08017iKDY22#,23#,LY22#..ST200107-201609

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-25030iKDY22#,23#,LY22#..ST200107-201609

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46421-25010iKDY22#,23#,LY22#..ST200107-201609

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46431-25010iKDY22#,23#,LY22#..ST200107-201609

46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)

main46431-25020iKDY22#,23#,LY22#..ST200107-201609

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-25090iKDY22#,LY22#..ST200107-201609

main46430-25100iKDY23#..ST200108-201502

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-25050iKDY22#,23#,25#,LY220,230..RHD200107-202111

main46451-25060iKDY22#,23#,25#,26#..LHD200108-201502

main46451-25070iLY225,235200107

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main33826-37210iKDY22#,23#,25#,LY220,230..RHD200107-202111

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-25040iKDY22#,23#,LY220..ST200107-200709

main46453-25050iLY225200107-201609

main46453-25070iKDY221,231..ST200709-201502

46456BRACKET, CABLE RETAINING

main46456-25020iKDY22#,23#,LY22#..ST200107-201609

NO.1

main46457-25020iKDY22#,23#,LY22#..ST200107-201609

NO.2

46458RETAINER, CABLE

main46458-25010iKDY22#,23#,LY22#..ST200107-201609

8401

9011906315

main90119-06315

9020609001

main90206-09001

9046806068

main90468-06068

9046814033

main90468-14033

9046814039

main90468-14039

9094901167

main90949-01167

91622B1025

main91622-B1025

91622G1014

main91622-G1014

91641K0822

main91641-K0822

91651B0822

main91651-B0822

91651B0825

main91651-B0825

9461210800

main94612-10800

32 parts on this diagram · 8 diagrams in section
