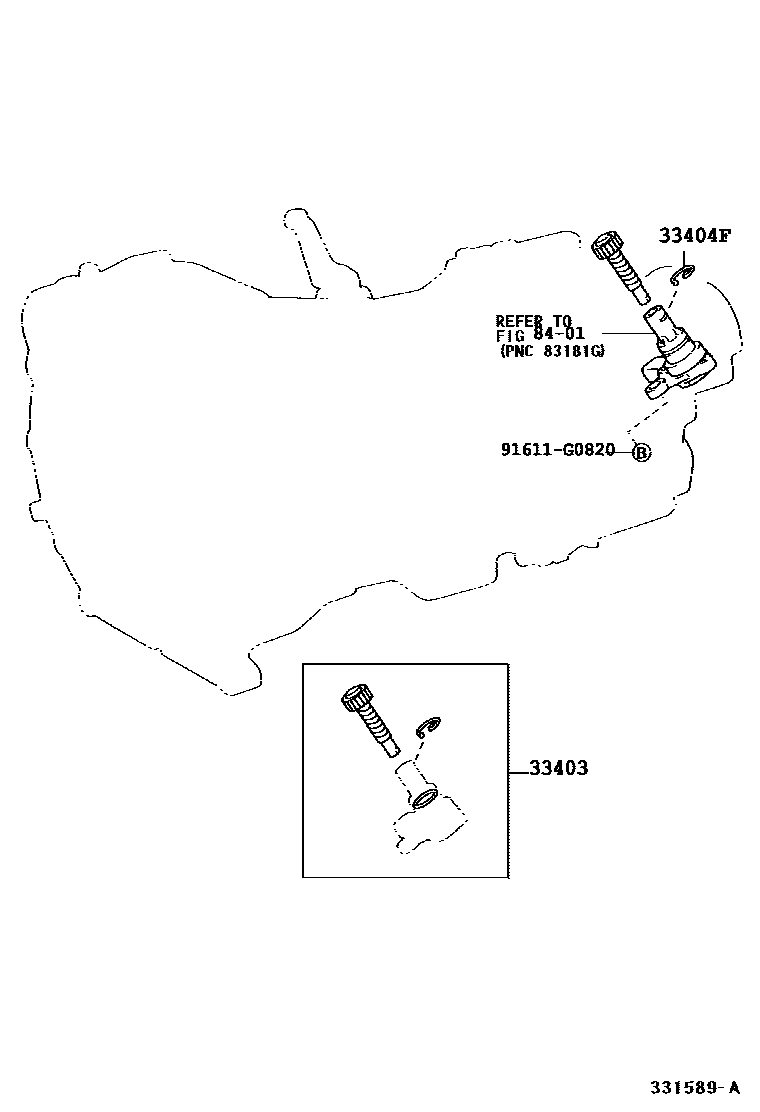

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29315200903-201502

main33403-29325200107-202111

main33403-29595200107-200609

main33403-39305200107-201609

main33403-39355200609-201109

main33403-39375200609-201310

main33403-39425201109-201502

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005200107-202111

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611G0820

main91611-G0820

4 parts on this diagram · 1 diagram in section
