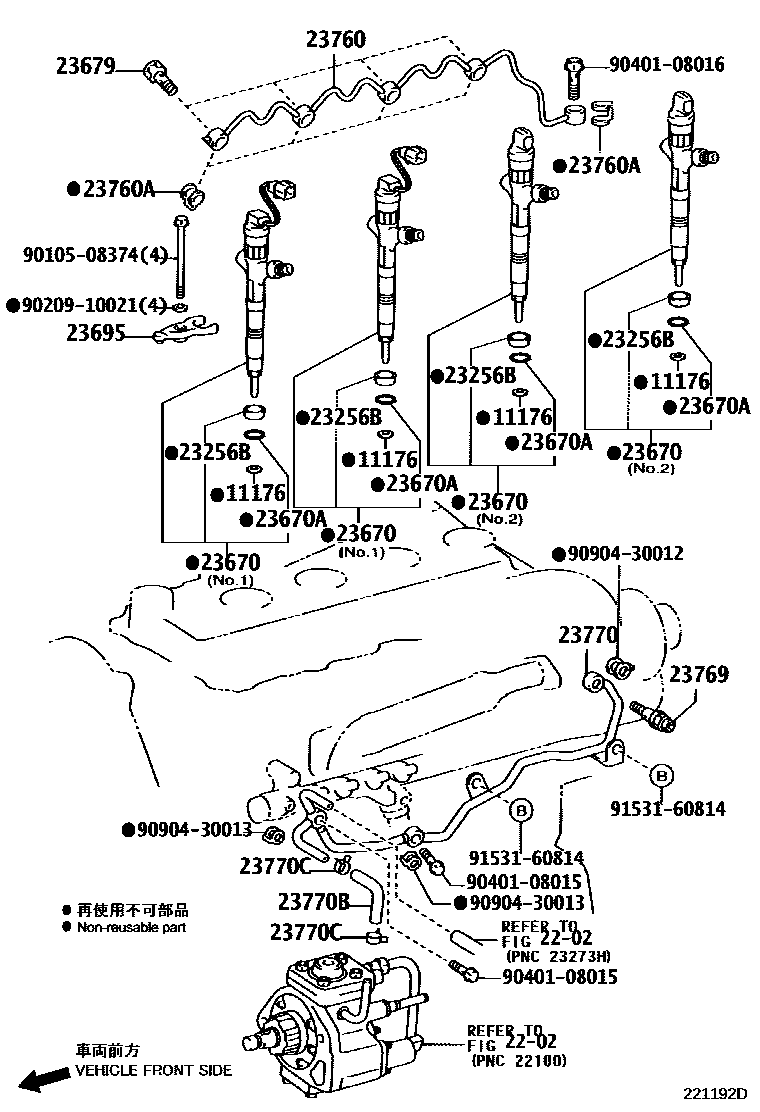

INJECTION NOZZLE

0001 1 0002 1 0004 1 0005 1 0007 1

11176SEAT, INJECTION NOZZLE

main11176-30010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108-200710

sub11176-30011

main11176-30011i1KDFTV..KDY221,231,251,261200710

main11176-64010i5L..LY230..SA200301-202111

2202

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-30010i2KDFTV..KDY220,230,250,260200108-200610

main23256-74010i1KDFTV..KDY221,231,251,261..EUR201109

NO.1

main23257-74010i1KDFTV..KDY221,231..GEN201109

NO.2

main23258-28011i1KDFTV..KDY221,231,251,261..EUR201109

NO.3

23670INJECTOR ASSY

main23670-39035i2KDFTV..KDY220,230,250,260200108-200610

NO.2

sub23670-39036

main23670-39045i2KDFTV..KDY220,230,250,260200108-200610

NO.1

sub23670-39046

main23670-39165i1KDFTV..KDY221,231,251,261200609-200710

NO.1

sub23670-39166

main23670-39166i1KDFTV..KDY221,231,251,261200710-200801

NO.1

main23670-39175i1KDFTV..KDY221,231,251,261200609-200710

NO.2

sub23670-39176

main23670-39176i1KDFTV..KDY221,231,251,261200710-200801

NO.2

main23670-39265i1KDFTV..KDY221,231..GEN200801-201310

NO.1

main23670-39305i1KDFTV..KDY221,231,251,261..EUR200801-201310

NO.2

main23670-39385i1KDFTV..KDY221,231,251,261..EUR200905-201109

NO.1

main23670-39395i1KDFTV..KDY221,231,251,261..EUR200905-201109

NO.2

main23670-39435i1KDFTV..KDY221,231,251,261..EUR201109

23670ARING, O(FOR INJECTOR ASSY)

main96721-19017i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

23679SCREW, INJECTOR FOLLOW

main23679-27020i2KDFTV..KDY220,230,250,260200108-200610

main23679-30020i1KDFTV..KDY221,231,251,261200609-201001

sub23679-30021

main23679-30021i1KDFTV..KDY221,231,251,261201001

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010i1KDFTV..KDY221,231,251,261..EUR200905-201008

sub23695-30011

main23695-30010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108-200809

sub23695-30011

main23695-30011i1KDFTV..KDY221,231..GEN200809-201008

main23695-30020i1KDFTV..KDY221,231,251,261201008

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-05010i5L..LY225,235200402

(L)

main23760-30020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

main23760-54030i5L..LY225,235200107-202111

main23760-54030i5L..LY225,235200402

(J)

23760AGASKET

main90904-30013i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

23769VALVE, FUEL CHECK

main23769-26030i1KDFTV..KDY221,231,251,261..EUR201109

main23769-30010i2KDFTV..KDY220,230,250,260200108-200610

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23764-54080i5L..LY225,235200107

main23764-54090i5L..LY220,230200107-202111

main23770-30020i2KDFTV..KDY220,230,250,260200108-200206

sub23770-30021

main23770-30021i2KDFTV..KDY220,230,250,260200206-200610

main23770-30100i1KDFTV..KDY221,231..GEN200609-201310

main23770-30110i1KDFTV..KDY221,231,251,261..EUR200905-201109

main23770-30130i1KDFTV..KDY221,231,251,261..EUR201109

23770BHOSE, FUEL

main23271-30330i1KDFTV..KDY221,231..GEN201109

main95333-04020i5L..LY230..SA200107-202111

L=200(*H,L=120),ID=4

main95333-06020i2KDFTV..KDY220,230,250,260200108-200610

L=200(*H,L=150)

sub95337-06020

main95337-06010i1KDFTV..KDY221,231..GEN200609-201310

L=100

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-51000i5L..LY230..SA200107-202111

main96135-51100i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

9010508374

main90105-08374

9020910021

main90209-10021

9040108015

main90401-08015

9040108016

main90401-08016

9090430012

main90904-30012

9090430013

main90904-30013

9153160814

main91531-60814

20 parts on this diagram · 5 diagrams in section
