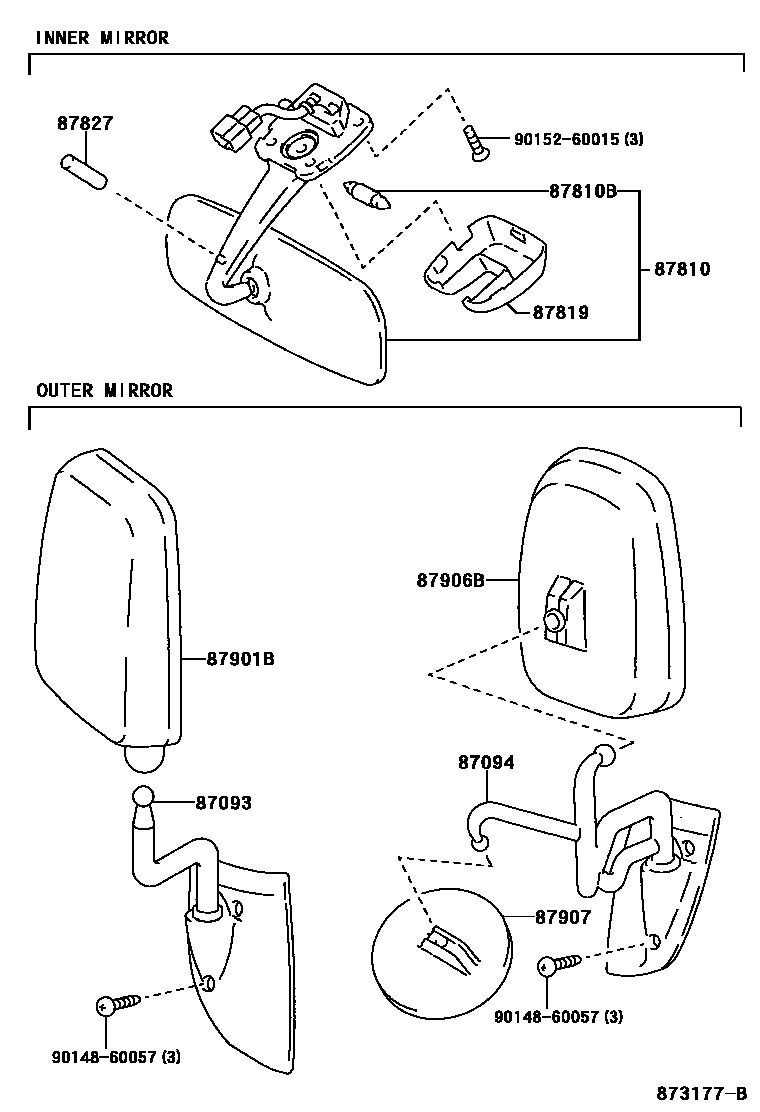

MIRROR
87093STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH
W(FR UNDER MIRROR)
CHINA SPEC
87094STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
W(FR UNDER MIRROR)
W(RETRACTIVE MIRROR & FR UNDER MIRROR)
CHINA SPEC
W(RETRACTIVE MIRROR)
87810MIRROR ASSY, INNER REAR VIEW
BLACK,TRIM1#
BLACK,TRIM1#
87810BBULB, INNER REAR VIEW MIRROR LAMP
12V 10W
87819LENS, INNER RR VIEW MIRROR ROOM LAMP
87827ABSORBER, INNER REAR VIEW MIRROR
L=40.5
L=44.0
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
W(RETRACTIVE MIRROR)
87907MIRROR SUB-ASSY, OUTER UNDER VIEW
9014860057
main90148-60057
9015260015
main90152-60015
11 parts on this diagram · 2 diagrams in section
