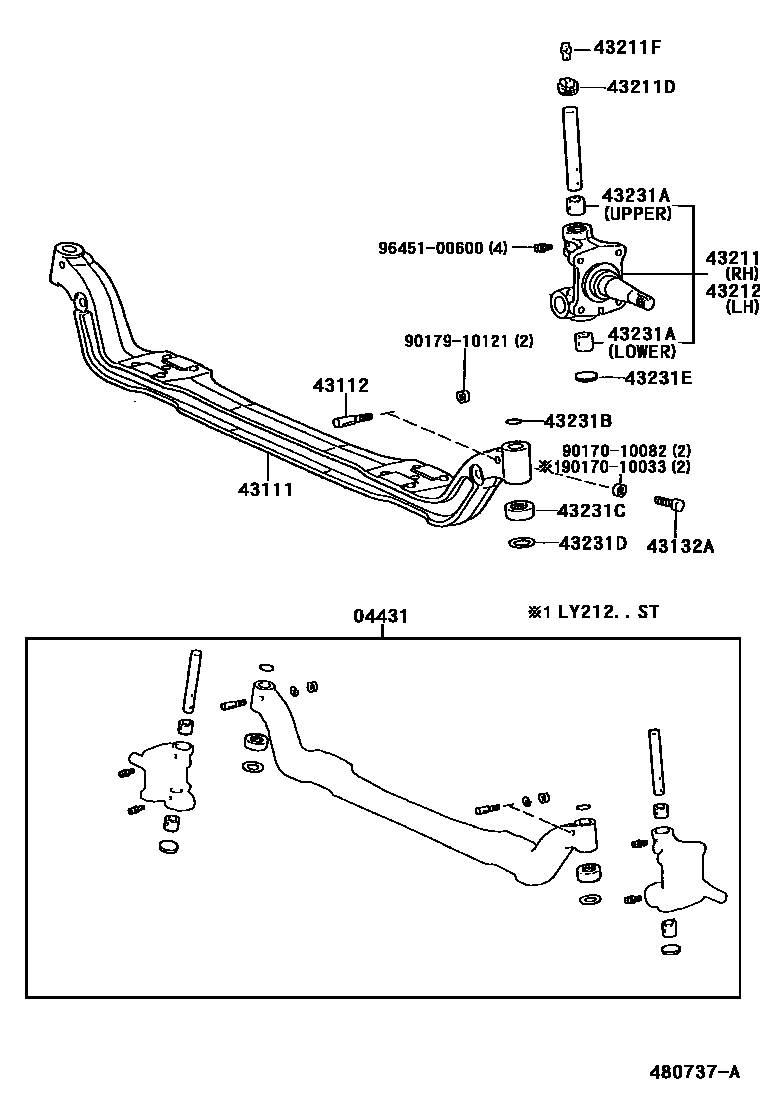

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04431PIN KIT, STEERING KNUCKLE KING

main04431-25010iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main04431-36041iLY21#..WT..EUR199505

43111I BEAM, FRONT AXLE

main43111-25041iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main43111-36090iLY21#..WT..EUR199505

43112PIN, KING PIN LOCK

main43112-25010×2iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main43112-36020×2iLY21#..WT..EUR199505

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-10005×2iLY21#,YY211..ARL,GEN,SA199505

main90106-10007×2iLY21#..ST..EUR199505

main90106-12001×2iLY211..WT..IV199505-199805

L=37

43211KNUCKLE, STEERING, RH

main43201-25070iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main43201-36090iLY21#..WT..EUR199505

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33004×2iLY21#,YY211199505

43211FPLUG, BLEEDER (FOR STEERING KNUCKLE)

main90930-03031×2iLY21#,YY211199505

43212KNUCKLE, STEERING, LH

main43202-25060iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main43202-36080iLY21#..WT..EUR199505

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73084×2iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

LOWER

sub90999-73160

main90999-73085×2iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

UPPER

sub90999-73159

main90999-73086×4iLY21#..WT..EUR199505

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main96711-19025×2iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main96711-19028×2iLY21#..WT..EUR199505

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-25002×2iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main90367-28001×2iLY21#..WT..EUR199505

43231DSHIM (FOR KING PIN)

main90564-25125×2iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

T=0.10

main90564-25126×2iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

T=0.05

main90564-25127×2iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

T=0.25

main90564-28128×2iLY21#..WT..EUR199505

T=0.20

main90564-28129×2iLY21#..WT..EUR199505

T=0.25

main90564-28130×2iLY21#..WT..EUR199505

T=0.30

main90564-28131×2iLY21#..WT..EUR199505

T=0.35

main90564-28144×2iLY21#..WT..EUR199505

T=0.40

main90564-28145×2iLY21#..WT..EUR199505

T=0.45

43231EPLUG (FOR STEERING KNUCKLE)

main90345-33003×2iLY21#,YY211199505

9017010033

main90170-10033

9017010082

main90170-10082

9017910121

main90179-10121

9645100600

main96451-00600

17 parts on this diagram · 2 diagrams in section
