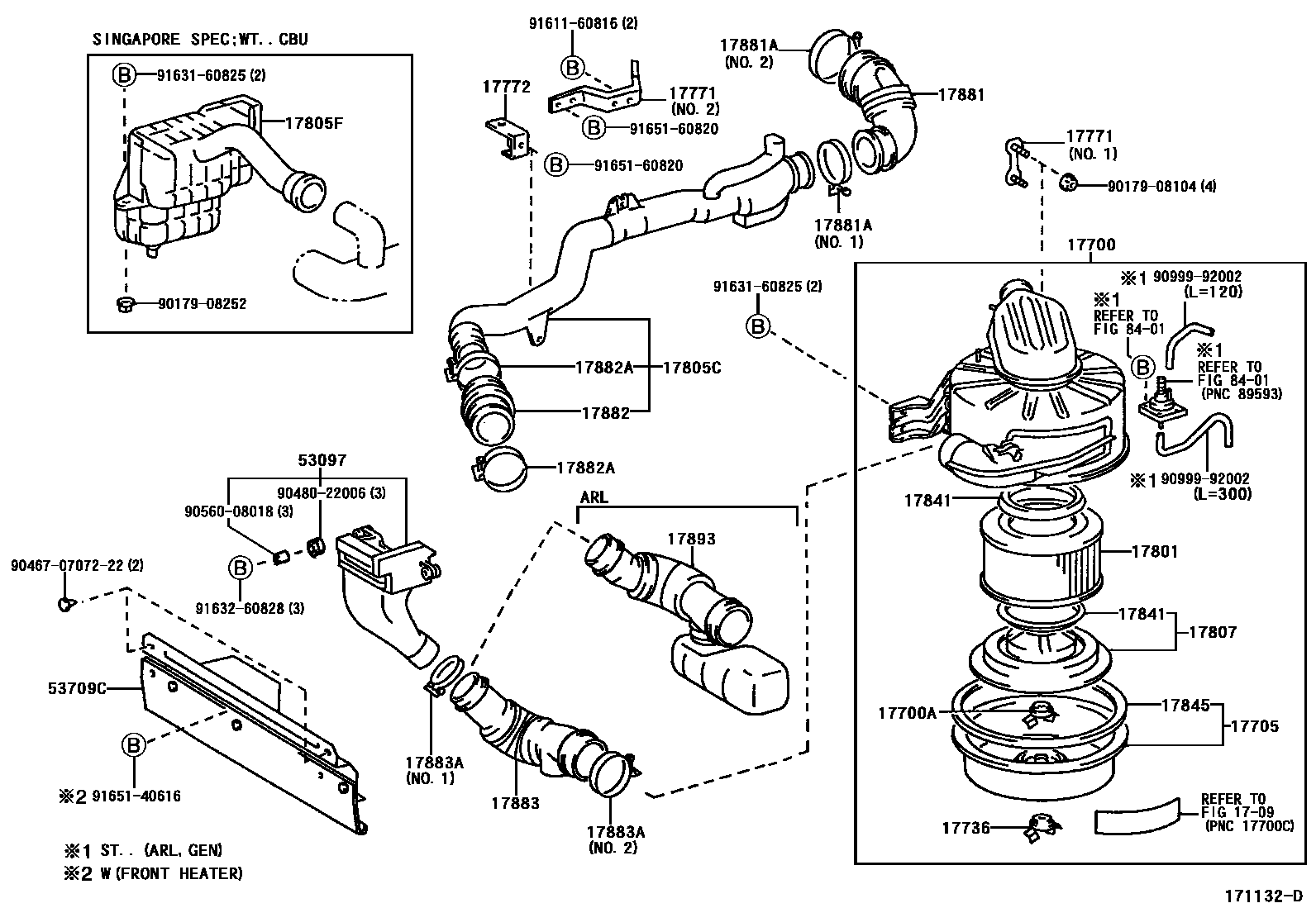

AIR CLEANER

0001 1 0002 1 0003 1 0004 1W/FRONT SCHNOKEL 0005 1 0006 1 0007 1W(FRONT SCHNORKEL)

1709

17700CLEANER ASSY, AIR

main17700-54750i3L..LY211..ST..15T..CBU199505-199508

SINGAPORE SPEC

sub17700-54751

main17700-54750i3L,5L..LY21#..WT..CBU199505-200005

sub17700-54751

main17700-54751i5L..LY212..CBU200005

main17700-54760i5L..LY212..SA;3L..LY211..RHD..ST199505

main17700-54770i3L..LY211..LHD..GEN199505

main17700-54780i3L,5L..LY21#..EUR199505-200005

sub17700-54781

main17700-54781i5L..LY212..EUR200005

main17700-73300i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC

sub17700-73301

main17700-73300i3Y..YY211..WT199505-199511

sub17700-73301

main17700-73310i3Y..YY211..RHD..ST199505-200002

main17700-73320i3Y..YY211..LHD199505

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i3L,5L..LY21#199505

17705CAP SUB-ASSY, AIR CLEANER

main17705-54260i3L,5L..LY21#199505

17736NUT, AIR CLEANER CASE

main90175-06003i3L,5L..LY21#199505

17771BRACKET, AIR CLEANER INLET DUCT

main17771-54010i3L,5L..LY21#199505

NO.2

main17771-71010i3L,5L..LY21#199505

NO.1

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-54010i3Y..YY211..LHD199505

main17772-54031i3Y..YY211..RHD199505-200002

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-35030i3Y..YY211199505-199511

main17801-54070i3Y..YY211..WT199505-199511

main17801-54070i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC

main17801-56020i3L..LY211..ST..15T..CBU199505-199508

SINGAPORE SPEC

main17801-56020i3L..LY211..WT;5L..LY212..EUR,GEN;3L..LY211..ST..EUR199505

main17801-58010i5L..LY212..SA;3L..LY211..ST..(ARL,GEN)199505

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-71020i3Y..YY211..ST199505

main17805-72030i3Y..YY211..WT199505-200002

17805CPIPE SUB-ASSY, AIR CLEANER, NO.1

main17805-54153i3L,5L..LY21#..RHD199505

main17805-73220i3Y..YY211..RHD..ST199505-200002

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-54270i3L,5L..LY21#..WT..CBU199505

main17805-54270i3L..LY211..ST..15T..CBU199505-199508

SINGAPORE SPEC

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-58010i3L,5L..LY21#199505

main17807-73010i3Y..YY211199505

17841GASKET, FILTER ELEMENT

main17841-44030i3L,5L..LY21#199505

main17841-54010i3Y..YY211199505

17845GASKET, AIR CLEANER CAP

main17845-56020i3L,5L..LY21#199505

17881HOSE, AIR CLEANER, NO.1

main17881-54400i3L,5L..LY21#..LHD199505

main17881-54530i5L..LY212..SA;3L..LY211..RHD199505

main17881-54620i5L..LY212..CBU200002

main17881-71080i3Y..YY211199505

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i3L,5L..LY21#..RHD199505

CONNECTOR SIDE

main96111-10690i3Y..YY211199505

NO.1

main96111-10750i3Y..YY211199505

CARBURETOR SIDE

main96111-10830i3L,5L..LY21#..RHD199505

NO.2

17882HOSE, AIR CLEANER, NO.2

main17882-54220i3Y..YY211..RHD199505-200002

main17882-54330i3L,5L..LY21#..LHD199505

main17882-54450i3Y..YY211..LHD199505

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10750i3Y..YY211..WT199505-200002

main96111-10750i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC

main96111-10750i3L..LY211..LHD199505

NO.1

main96111-10830i3L..LY211..LHD199505

NO.2

main96111-10830i5L..LY212..EUR199805

17883HOSE, AIR CLEANER, NO.3

main17805-54290i3L..LY211..LHD..GEN..IV199702

PARAGUAY SPEC

main17883-54170i3Y..YY211..LHD199505

main17883-73030i3L,5L..LY21#..RHD..(GEN,SA)199505-200002

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main96111-10690i3Y..YY211..RHD199505-200002

INLET SIDE

main96111-10690i3L,5L..LY21#..RHD199505

NO.1

main96111-10750i3Y..YY211199505

NO.2

main96111-10750i3L,5L..LY21#199505

AIR CLEANER SIDE

main96111-10800i3Y..YY211..LHD199505

NO.1

main96111-10800i3L..LY211..EUR199505-199805

main96111-10800i3Y..YY211..LHD199505

INLET SIDE

17893RESONATOR, INTAKE AIR

main17805-54280i3L..LY211..ARL199505

main17805-54290i3L,5L..LY21#..LHD..IV199505

53097INLET SUB-ASSY

main53097-25080iYY211..RHD199505-200002

main53097-37100iLY21#..LHD199505

53709CCOVER SUB-ASSY, AIR CLEANER INLET

main53709-37010iYY211..RHD199505-200002

W(FRONT HEATER)

main53709-37020iYY211..LHD199505

W(FRONT HEATER)

main53709-37040iYY211..RHD199505-200002

main53709-37050iLY211..EUR199505-199708

W/O(FRONT HEATER)

main53709-37050iLY211..LHD..GEN199505

8401

9017908104

main90179-08104

9017908252

main90179-08252

904670707222

main90467-0707222

9048022006

main90480-22006

9056008018

main90560-08018

9099992002

main90999-92002

9161160816

main91611-60816

9163160825

main91631-60825

9163260828

main91632-60828

9165140616

main91651-40616

9165160820

main91651-60820

35 parts on this diagram · 7 diagrams in section
