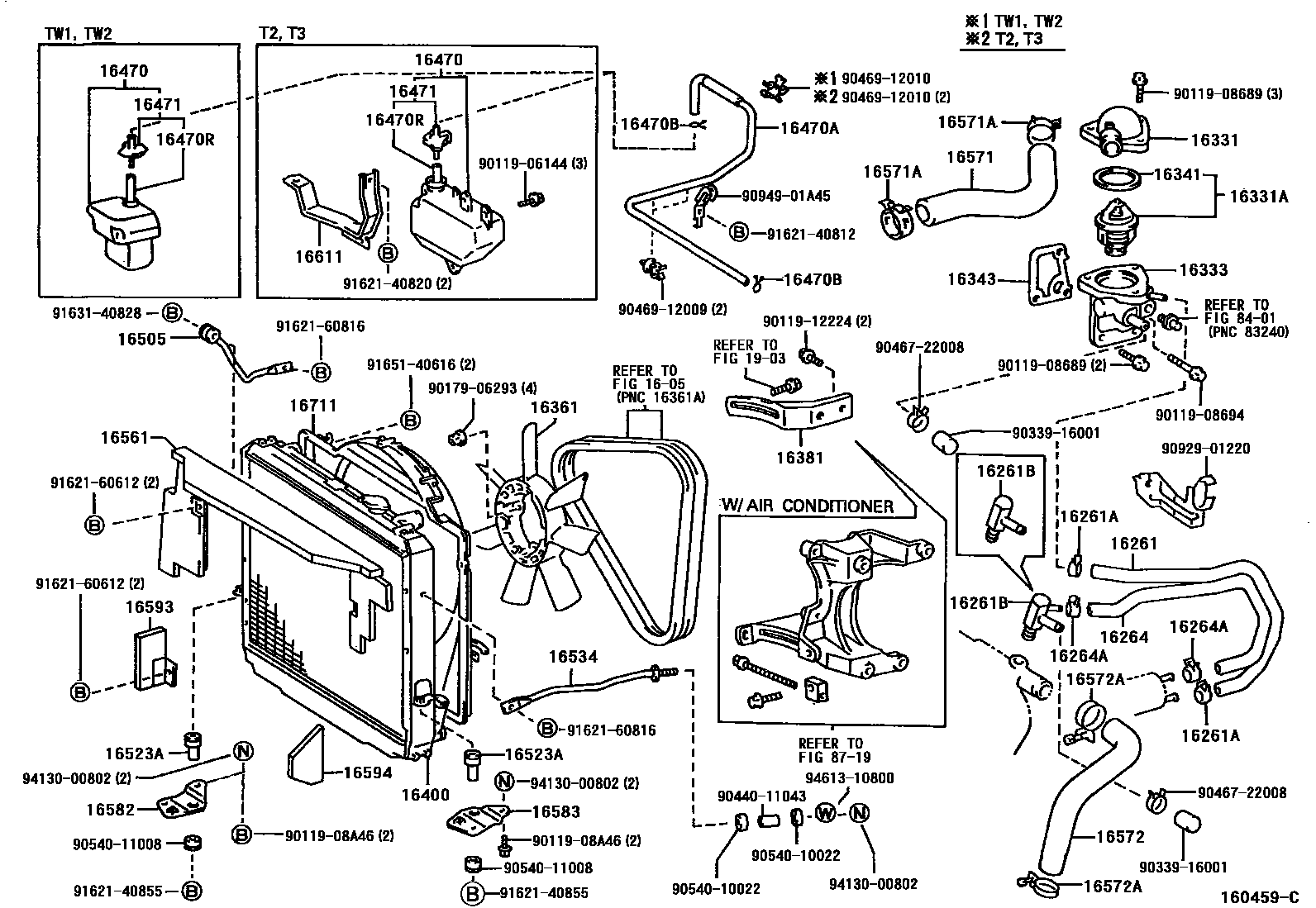

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1605

16261HOSE, WATER BY-PASS

main16261-54090i3L..LY211..EUR199505-199610

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022i3L..LY211..WT;5L..LY212..EUR,GEN;3L..LY211..ST..EUR199505-199610

16261BUNION(FOR WATER BY-PASS HOSE)

main87251-89113i3L..LY211..ST..GEN199505-199610

main90404-54037i3L..LY211..EUR199505-199610

16264HOSE, WATER BY-PASS, NO.2

main16264-54080i3L..LY211..WT;5L..LY212..EUR,GEN;3L..LY211..ST..EUR199505-199610

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15022i3L..LY211..EUR199505-199610

16331OUTLET, WATER

main16331-54090i3L,5L..LY21#199505

main16331-71010i3Y..YY211199505

16331ATHERMOSTAT

main16340-54010i3L..LY211..ARL,GEN199605-200002

*WAX 88-100,MARK KUZEH

main16340-54010i3L..LY211199505-199605

*WAX 88-100

main16340-54010i3L..LY211..ARL,GEN199605-199610

*WAX 88-100,KUZEH

main90916-03046i3Y..YY211199505

*WAX 82-95

16333HOUSING, WATER OUTLET

main16333-54113i3L..LY211..EUR199505-199610

main16333-54123i5L..LY212..SA;3L..LY211..ST..(ARL,GEN)199505-199610

16341GASKET, WATER OUTLET

main16341-35010i3L,5L..LY21#199505

main16341-71011i3Y..YY211199505-199707

main16341-73010i3Y..YY211199707

16343GASKET, WATER OUTLET HOUSING

main16343-54040i3L,5L..LY21#199505

16361FAN

main16361-38010i3Y..YY211..LHD199505

CHINA SPEC

main16361-38010i3Y..YY211..WT199505-200002

main16361-44032i3Y..YY211..ST199505

main16361-54040i3L,5L..LY21#..GEN199505

main16361-54070i3L,5L..LY21#..ARL,EUR,SA199505

16381BAR, FAN BELT ADJUSTING

main16381-54060i3L,5L..LY21#199505-199809

T=3.2

sub16381-54061

main16381-54061i3L,5L..LY21#199809-199905

T=4.5

main16381-54121i3L,5L..LY21#199905

main16381-73011i3Y..YY211199505

16400RADIATOR ASSY

main16400-5B260i3L..LY211..RHD199505-199708

FIN PITCH=3.5

sub16400-5B261

main16400-5B261i3L,5L..LY21#..RHD199708

FIN PITCH=4.0

main16400-5B270i3L..LY211..LHD..GEN199505-199708

FIN PITCH=3.5

sub16400-5B271

main16400-5B271i3L..LY211..LHD..GEN199708

FIN PITCH=4.0

main16400-5B280i5L..LY212..WT..15T199805-199905

PORTUGAL SPEC;FIN PITCH=3.5

sub16400-5B281

main16400-5B280i3L..LY211..WT..IV199708-199805

PORTUGAL SPEC

sub16400-5B281

main16400-5B280i5L..LY212;3L..LY211..ST..EUR199505-199905

FIN PITCH=3.5

sub16400-5B281

main16400-5B281i3L,5L..LY21#..WT..15T..IV199708-199905

FIN PITCH=4.5

main16400-73480i3Y..YY211..RHD199505-199708

main16400-73481i3Y..YY211..RHD199708-200002

main16400-73500i3Y..YY211..LHD199505-199708

sub16400-73501

main16400-73501i3Y..YY211..LHD199708-200107

16470TANK ASSY, RADIATOR RESERVE

main16470-54280i3Y..YY211..15T199505-200002

main16470-58080i3L,5L..LY21#..125199505

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16567-54130i3Y..YY211..WT..125199505-199905

L=1550

main16567-58010i3Y..YY211..RHD..15T199505-200002

L=1670

main16567-58020i3L,5L..LY21#..LHD..15T199505-199905

L=1470

main16567-58030i3Y..YY211..ST..125199505

L=1370

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3L,5L..LY21#199505

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i3Y..YY211..15T199505-199511

L=600(*H,L=120)

main90445-12078i3Y..YY211..15T199505-199511

L=600(*H,L=135)

main90445-12078i3Y..YY211..15T199511-200002

16471CAP SUB-ASSY, RESERVE TANK

main16405-54250i3Y..YY211..15T199505-200002

main16405-58050i3Y..YY211..125199511

main16405-58060i3L..LY211..125199505-199511

sub16405-58050

16505SUPPORT SUB-ASSY, RADIATOR, RH

main16505-54040i3Y..YY211199505

16523ACUSHION, RADIATOR SUPPORT

main16523-54050i3L,5L..LY21#199505

16534SUPPORT, RADIATOR, NO.2

main16534-54030i3L,5L..LY21#199505

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-71010i3L,5L..LY21#199505

16571HOSE, RADIATOR, INLET

main16571-54390i3L,5L..LY21#199505

main16571-73130i3Y..YY211199505

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i3L,5L..LY21#199505

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-54450i3L,5L..LY21#199505

main16572-73110i3Y..YY211199505

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002i3Y..YY211199505

sub90467-37005

main90467-37002i3L,5L..LY21#199708

RADIATOR SIDE

sub90467-37005

main90467-41005i3L,5L..LY21#199708

ENGINE SIDE

main96111-10460i3L..LY211199505-199708

RADIATOR SIDE

main96111-10500i3L..LY211199505-199708

ENGINE SIDE

16582BRACKET, RADIATOR, NO.1

main16582-54020i3Y..YY211199505

16583BRACKET, RADIATOR, NO.2

main16583-54020i3L,5L..LY21#199505

16593GUIDE, RADIATOR AIR, NO.1

main16593-54060i3L,5L..LY21#199505

16594GUIDE, RADIATOR AIR, NO.2

main16594-54080i3L,5L..LY21#199505

16611BRACKET, RADIATOR RESERVE TANK

main16611-54130i3Y..YY211..15T199505-200002

16711SHROUD, FAN

main16711-54490i3L,5L..LY21#199505

1903

8401

8719

9011906144

main90119-06144

9011908689

main90119-08689

9011908694

main90119-08694

9011908A46

main90119-08A46

9011912224

main90119-12224

9017906293

main90179-06293

9033916001

main90339-16001

9044011043

main90440-11043

9046722008

main90467-22008

9046912009

main90469-12009

9046912010

main90469-12010

9054010022

main90540-10022

9054011008

main90540-11008

9092901220

main90929-01220

9094901A45

main90949-01A45

9162140812

main91621-40812

9162140820

main91621-40820

9162140855

main91621-40855

9162160612

main91621-60612

9162160816

main91621-60816

9163140828

main91631-40828

9165140616

main91651-40616

9413000802

main94130-00802

9461310800

main94613-10800

60 parts on this diagram · 4 diagrams in section
