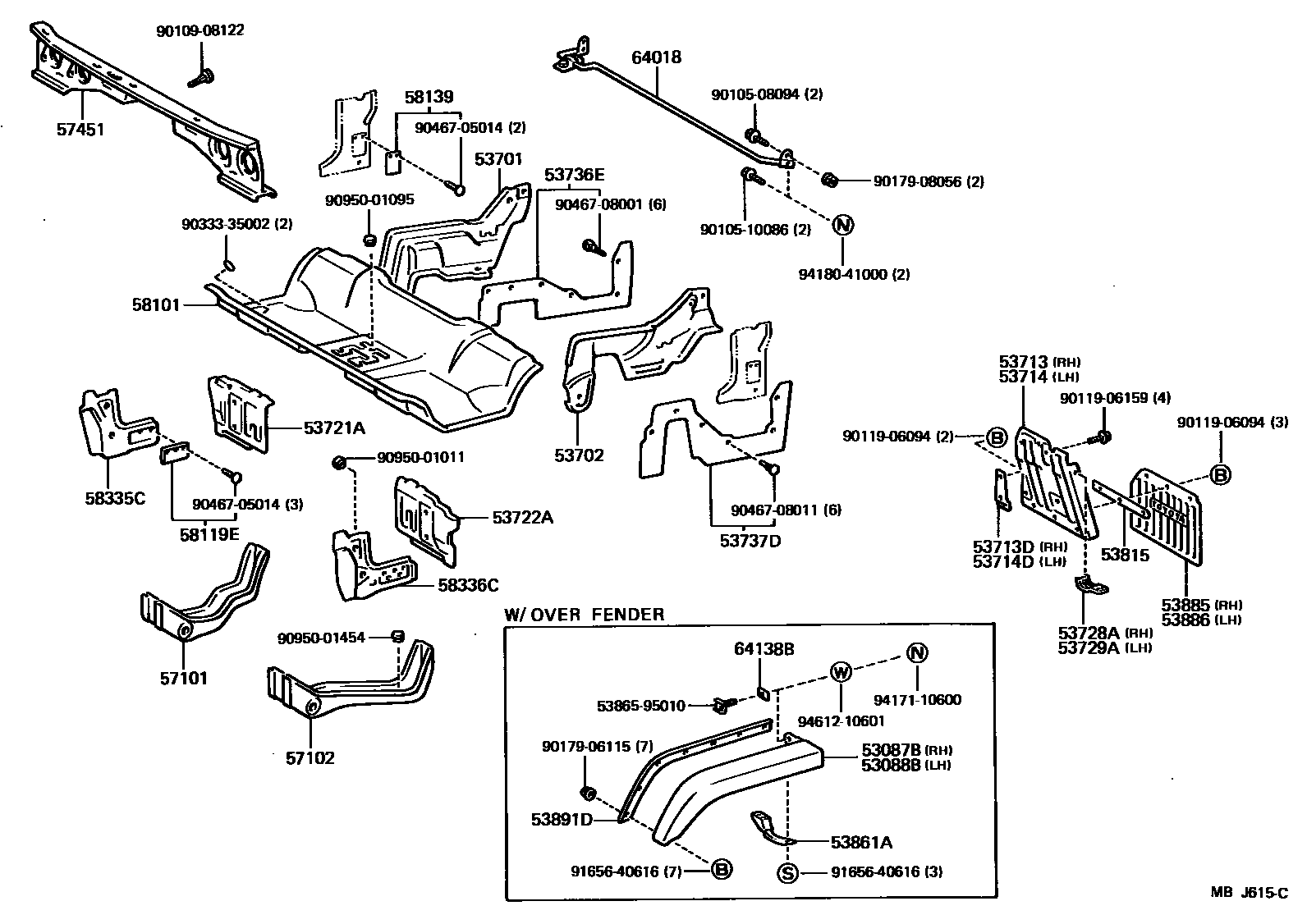

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

53087BEXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH

main53087-95400iLY60..EUR198609-198708

SWITZERLAND SPEC

main53087-95400iYY61..EUR198608-198610

53088BEXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH

main53088-95010iYY61..EUR198608-198610

main53088-95010iLY60..EUR198609-198708

SWITZERLAND SPEC

53701APRON SUB-ASSY, FRONT FENDER, RH

main53707-95011iYY5#,6#198508-198708

sub53707-95012

main53707-95012iLY60198508-198708

53702APRON SUB-ASSY, FRONT FENDER, LH

main53708-95011iLY60,YY5#,6#198508-198708

53713APRON, FENDER SIDE, RH

main53715-95A01iLY60,YY6#..T2,T3198508-198708

main53715-95A02iLY60,YY5#,60..TW198508-198708

53713DEXTENSION, FRONT FENDER APRON, RH

main53747-95010iLY60,YY6#..T2,T3198508-198708

sub53747-95011

sub90179-06164

53714APRON, FENDER SIDE, LH

main53716-95A02iLY60,YY6#..T2,T3198508-198708

main53716-95A03iLY60,YY5#,60..TW198508-198708

53714DEXTENSION, FRONT FENDER APRON, LH

main53748-95010iLY60,YY6#..T2,T3198508-198708

sub53748-95011

sub90179-06164

53721AAPRON, FRONT FENDER, NO.2 RH

main53721-95402iLY60,YY6#..RHD198508-198708

sub53721-37010

main53721-95403iLY60,YY5#,6#..LHD198508-198708

sub53721-37030

53722AAPRON, FRONT FENDER, NO.2 LH

main53722-95403iLY60,YY6#..RHD198508-198708

sub53722-37020

main53722-95404iLY60,YY5#,6#..LHD198508-198708

sub53722-37010

53728ABRACKET, FENDER APRON, RH

main53728-95014iYY61..EUR198608-198708

53729ABRACKET, FENDER APRON, LH

main53729-95014iYY61..EUR198608-198708

53736ESEAL, FRONT FENDER APRON, RH

main53736-95010iLY60,YY5#,6#198508-198708

53737DSEAL, FRONT FENDER APRON, LH

main53737-95010iLY60,YY5#,6#198508-198708

53815PLATE, MUDGUARD RUBBER SET, FRONT

main53887-95010iLY60,YY60..T2,T3198601-198708

53861ABRACKET, FRONT WHEEL OPENING, NO.1

main53861-95012iLY60..EUR..IV198608-198708

RH

main53861-95012iLY60..EUR198609-198708

SWITZERLAND SPEC,LH

main53862-95011iYY61..EUR198608-198708

LH

main53862-95011iLY60..EUR198609-198708

SWITZERLAND SPEC,RH

53885MUDGUARD, FRONT RH

main53881-95A03iLY60,YY6#..T2,T3198508-198708

main53881-95A04iLY60,YY5#,60..TW198508-198708

53886MUDGUARD, FRONT LH

main53881-95A03iLY60,YY6#..T2,T3198508-198708

main53881-95A04iLY60,YY5#,60..TW198508-198708

53891DPACKING, FRONT WHEEL OPENING TRIM

main53891-95401iYY61..IV198609-198708

SWITZERLAND SPEC,RH

main53891-95401iYY61..EUR198608-198708

RH

main53892-95400iLY60..EUR198609-198708

SWITZERLAND SPEC,LH

main53892-95400iYY61..EUR198608-198708

LH

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57011-95010iLY60,YY5#,6#198508-198708

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57012-95010iLY60,YY5#,6#198508-198708

57451MEMBER, FRONT FLOOR CROSS

main57408-95014iLY60,YY6#..RHD198508-198708

main57408-95016iLY60,YY5#,6#..LHD198508-198708

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95051iLY60,YY6#..RHD198508-198708

sub58101-95055

main58101-95052iLY60,YY5#,6#..LHD198508-198708

sub58101-95056

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400iLY60,YY5#,6#198508-198708

58139COVER, FRONT FLOOR SIDE, REAR

main58139-95400iLY60,YY6#..T2,T3198508-198708

LH

main58139-95401iLY60,YY6#..T2,T3198508-198708

RH

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95401iLY60,YY5#,6#198508-198708

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95401iLY60,YY5#,6#198508-198708

64018BAR SUB-ASSY, BODY

main64018-95404iLY60..WT198508-198708

main64018-95407iYY61..EUR198608-198708

main64018-95A03iLY60..RHD..GEN..IV198508-198708

NEWZEALAND SPEC

64138BSEAL, FRONT WHEEL OPENING

main64138-95400iLY60..EUR..IV198609-198708

SWITZERLAND SPEC

main64138-95400iYY61..EUR198608-198610

5386595010BRACKET, FRONT WHEEL OPENING, NO.3

main53865-95010

9010508094

main90105-08094

9010510086

main90105-10086

9010908122

main90109-08122

9011906094

main90119-06094

9011906159

main90119-06159

9017906115

main90179-06115

9017908056

main90179-08056

9033335002

main90333-35002

9046705014

main90467-05014

9046708001

main90467-08001

9046708011

main90467-08011

9095001011

main90950-01011

9095001095

main90950-01095

9095001454

main90950-01454

9165640616

main91656-40616

9417110600

main94171-10600

9418041000

main94180-41000

9461210601

main94612-10601

48 parts on this diagram · 3 diagrams in section
