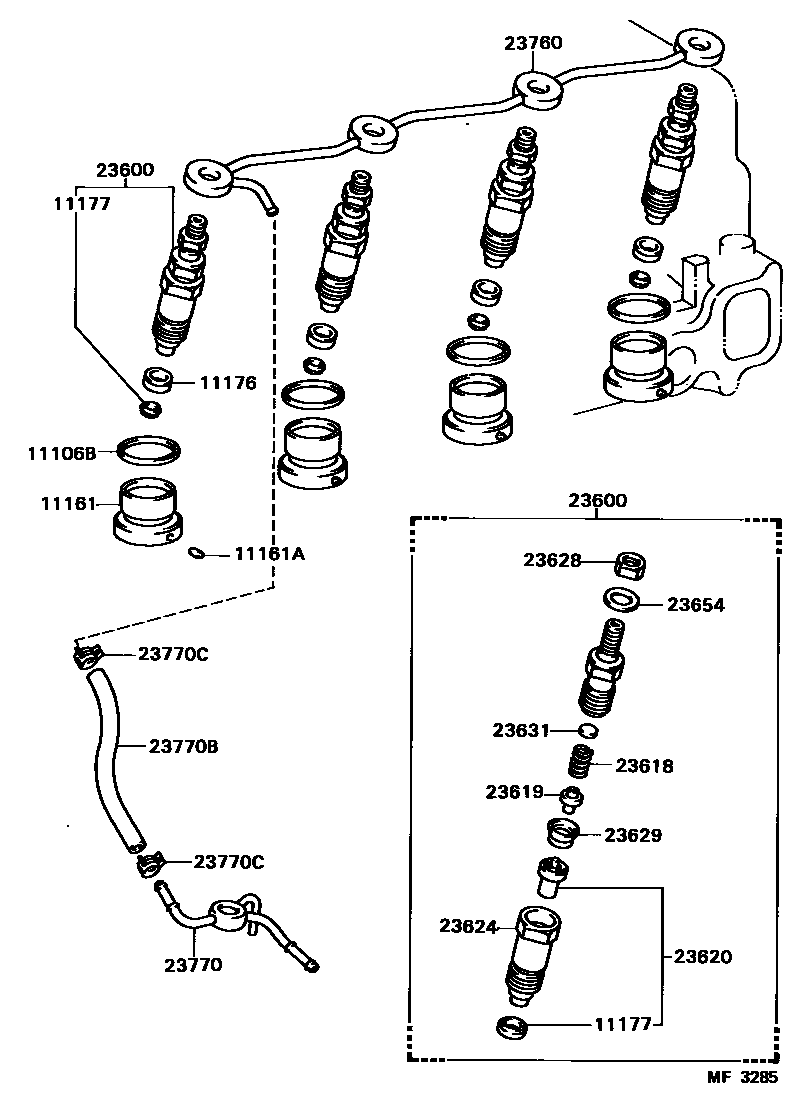

INJECTION NOZZLE
11106BSHIM(FOR COMBUSTION CHAMBER)
T=0.05
T=0.10
T=0.15
T=0.20
11161CHAMBER, COMBUSTION
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11176SEAT, INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23600HOLDER & NOZZLE SET, NOZZLE
SINGAPORE SPEC
23618SPRING, NOZZLE HOLDER PRESSURE
SINGAPORE SPEC
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
SINGAPORE SPEC
23624NUT, NOZZLE RETAINING
SINGAPORE SPEC
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
SWITZERLAND SPEC
23770BHOSE, FUEL
L=200(*H,L=110)
L=200(*H,L=110)
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
sub96132-51000
18 parts on this diagram · 1 diagram in section
