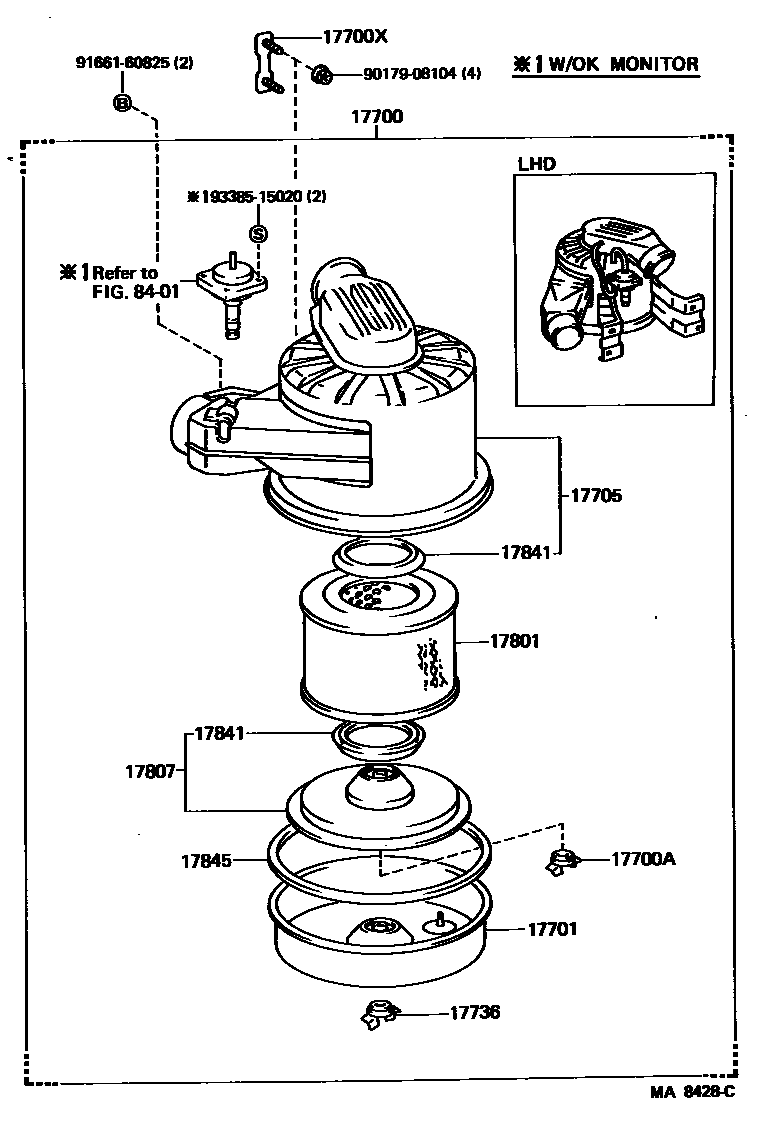

AIR CLEANER

0001 1 0002 1 0003 1 0004 1W/FRONT SCHNORKEL

17700CLEANER ASSY, AIR

main17700-54350i2Y,3Y..YY6#..RHD198508-198708

main17700-54360i2Y,3Y..YY5#,6#..LHD..GEN198508-198708

main17700-54380i2L..LY60..RHD198508-198708

main17700-54390i2L..LY60..LHD198508-198708

W/OK MONITOR

main17700-73160i3Y..YY61..EUR198608-198708

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i2L..LY60198508-198708

17700XBRACKET, AIR CLEANER

main17771-71010i2Y,3Y..YY5#,6#198508-198708

17701CASE SUB-ASSY, AIR CLEANER

main17701-54200i2L..LY60198508-198708

17705CAP SUB-ASSY, AIR CLEANER

main17705-54160i2L..LY60..EUR198508-198708

main17705-54170i2L..LY60..RHD198508-198708

main17705-54180i2L..LY60..LHD198508-198708

W/OK MONITOR

main17705-73070i3Y..YY61..EUR198608-198708

17736NUT, AIR CLEANER CASE

main90175-06003i2L..LY60198508-198708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31060i3Y..YY61..EUR198608-198708

main17801-54070i2Y,3Y..YY51,6#198508-198708

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-54010i2L..LY60198508-198708

17841GASKET, FILTER ELEMENT

main17841-54010i2L..LY60198508-198708

17845GASKET, AIR CLEANER CAP

main17845-54010i2Y,3Y..YY5#,6#198508-198708

8401

9017908104

main90179-08104

9166160825

main91661-60825

9338515020

main93385-15020

14 parts on this diagram · 4 diagrams in section
