METER

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

83100BBULB, COMBINATION METER, NO.1

main90981-11018×2iLY3#198201-198507

12V 1.2W W/O SOCKET,12V 1.4KW

main99132-12034×12iJY30,LY20,30,RY20,3#197903-198201

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-95010iJY30,RY20,3#198201-198507

main83138-95020iLY3#198201-198507

main83138-95030iJY30,RY20,3#197903-198201

main83138-95040iLY20,30197903-198201

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×11iJY30,LY20,3#,RY20,3#197903-198507

12V 3.4W

main83101-22010iLY20,30197903-198201

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-95059iJY30,RY20,3#..GEN198201-198507

main83102-95060iLY3#..GEN198201-198507

main83102-95073iLY3#,RY31..ARL198201-198507

main83247-95010iJY30,RY20,3#197903-198201

main83247-95030iLY20,30197903-198201

83110SPEEDOMETER ASSY

main83110-95012iJY30,RY20,3#..GEN197903-198201

KM

main83110-95013iLY20,30197903-198201

KM

main83110-95016iJY30,RY20,3#..GEN197903-198201

MILE

main83110-95017iLY20,30197903-198109

MILE

main83110-95018iRY31..ARL198005-198201

KM

main83110-95020iJY30,RY20,3#..GEN198201-198507

KM

main83110-95021iLY3#..GEN198201-198507

KM

main83110-95022iRY31..ARL198201-198308

KM

main83110-95023iJY30,RY20,3#..GEN198201-198507

MILE

main83110-95024iLY3#..GEN198201-198507

MILE

main83110-95025iLY20,30198109-198201

MILE

main83110-95026iLY3#..ARL198201-198507

KM

main83110-95027iRY31198308-198507

KM

83111MECHANISM, SPEEDOMETER

main83112-95012iJY30,RY20,3#197903-198201

KM

main83112-95013iLY20,30197903-198201

KM

main83112-95016iJY30,RY20,3#197903-198201

MILE

main83112-95017iLY20,30197903-198201

MILE

83128KNOB, TRIP COUNTER

main83128-95010iJY30,LY3#,RY20,3#198201-198507

83132CASE, COMBINATION METER

main83132-95010iJY30,LY20,3#,RY20,3#..GEN197903-198507

main83132-95A01iLY3#,RY31..ARL198005-198507

83134COVER, COMBINATION METER, NO.1

main83134-95010iJY30,LY20,3#,RY20,3#197903-198507

83135POINTER, SPEEDOMETER

main83135-95A03iJY30,LY20,30,RY20,3#197903-198201

83145LENS, METER, NO.1

main83145-95013iJY30,LY20,3#,RY20,3#197903-198507

83145ALENS, METER, NO.2

main83145-95014iJY30,LY20,30,RY20,3#197903-198201

main83145-95A15iJY30,LY3#,RY20,3#198201-198507

83145BLENS, METER, NO.3

main83145-95015iJY30,LY20,30,RY20,3#197903-198201

main83145-95023iLY3#,RY31..ARL198201-198507

main83145-95026iJY30,LY3#,RY20,3#..GEN198201-198507

83145CLENS, METER, NO.4

main83145-95016iLY3#,RY31..ARL198201-198507

main83145-95027iJY30,LY3#,RY20,3#..GEN198201-198507

83145DLENS, METER, NO.5

main83145-95017iRY20,3#..GEN197903-198507

main83145-95019iJY30,LY20,30197903-198201

main83145-95022iRY31..ARL198005-198201

main83145-95A12iJY30,LY3#..GEN198201-198507

main83145-95A13iLY3#,RY31..ARL198201-198507

83145ELENS, METER, NO.6

main83145-95010iLY20,30197903-198201

main83145-95018iJY30,RY20,3#197903-198507

main83145-95A20iLY3#..GEN198201-198507

main83145-95A29iLY3#..ARL198201-198507

83145GSWITCH ASSY, COMBINATION METER

main83125-95010iLY20,3#197903-198507

83146GROMMET, METER GLASS

main83145-89117iLY20,3#197903-198311

main83145-95J17iLY31198311-198507

83310GAGE ASSY, FUEL RECEIVER

main83243-95010iJY30,LY20,30,RY20,3#197903-198201

main83243-95011iLY3#,RY31..ARL198201-198507

main83243-95012iJY30,LY30,RY20,3#..GEN198201-198507

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-95010iJY30,LY20,30,RY20,3#197903-197912

SENDER GAGE=83420-20011

main83244-95011iLY3#,RY31..ARL198201-198507

main83244-95012iJY30,LY30,RY20,3#..GEN198201-198507

main83244-95020iJY30,LY20,30,RY20,3#197912-198201

SENDER GAGE=83420-20020

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-29595iRY20,3#..RHD197903-198507

main83710-29605iLY20,30197903-198201

main83710-29625iRY20,3#..LHD197903-198507

main83710-95012iJY30..RHD197903-198308

main83710-95014iJY30..LHD197903-198308

main83710-95016iLY3#198201-198507

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316520020MIRROR, COMBINATION METER, NO.2

main83165-20020

8379195011

main83791-95011

8379195012

main83791-95012

9015950020

main90159-50020

9046108183

main90461-08183

9046108202

main90461-08202

9046108535

main90461-08535

9046110418

main90461-10418

9165140816

main91651-40816

9354013016

main93540-13016

9411540400

main94115-40400

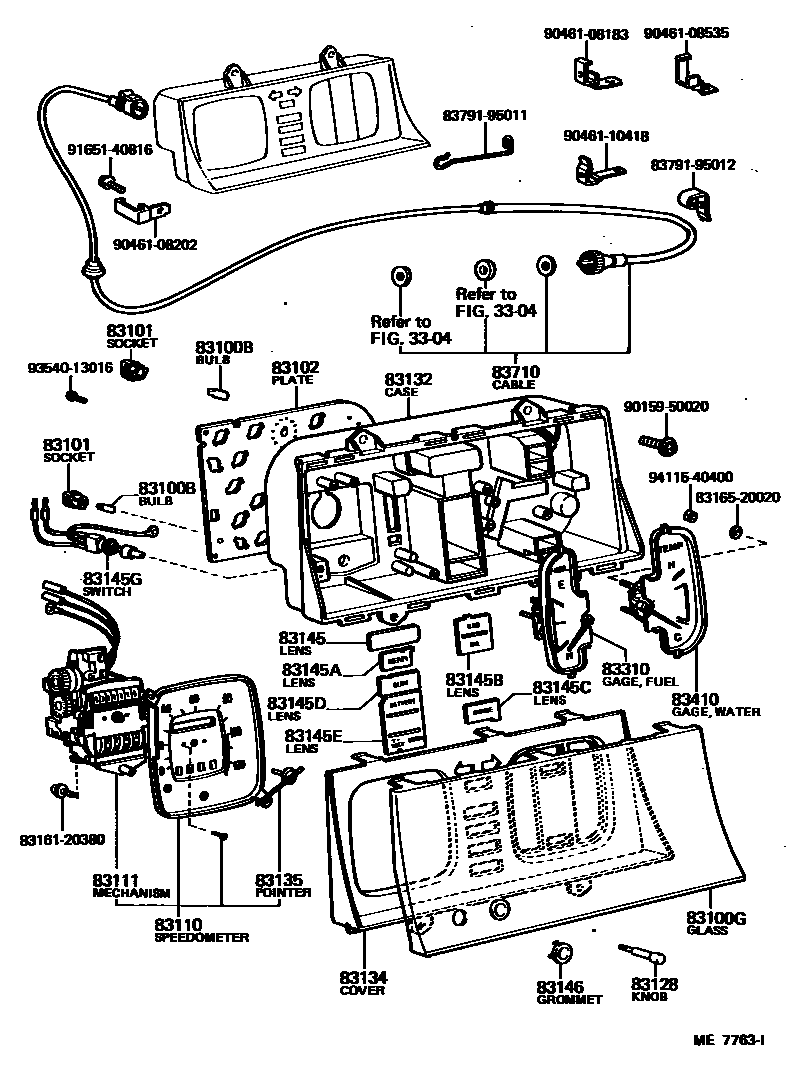

34 parts on this diagram · 1 diagram in section
