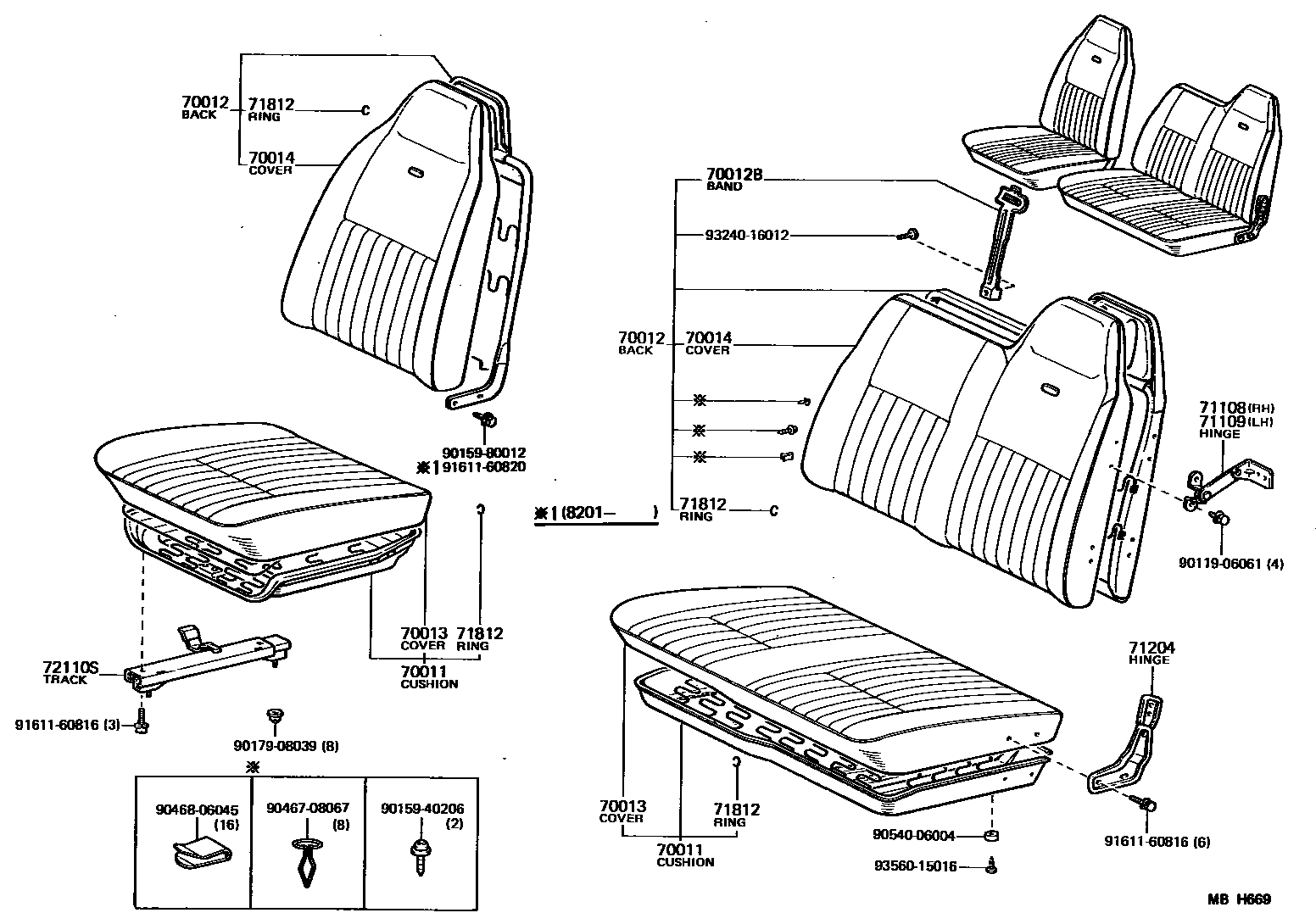

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

70011CUSHION ASSY, NO.1 SEAT

main71110-95011iJY30,RY20,3#..LHD197903-198201

VL,LH

main71110-95012iJY30,LY20,30,RY20,3#..RHD..GEN197903-198201

VL,RH

main71110-95014iRY31..ARL198005-198201

VL,RH

main71110-95015iJY30,LY3#,RY20,30..RHD..GEN198201-198507

VL,RH

main71110-95016iJY30,RY20,3#..LHD198201-198507

VL,LH

main71110-95017iLY3#,RY31..ARL198201-198507

VL,RH

main71210-95010iJY30,LY20,30,RY20,3#..RHD197903-198201

VL,LH

main71210-95011iJY30,RY20,3#..LHD197903-198201

VL,RH

main71210-95015iJY30,LY3#,RY20,3#..RHD198201-198507

VL,LH

main71210-95016iJY30,RY20,3#..LHD198201-198507

VL,RH

70012BACK ASSY, NO.1 SEAT

main71150-95010iJY30,LY20,30,RY20,3#..RHD..(15T,20T)197903-198201

VL,RH HIGH BACK SEAT

main71150-95011iRY30..RHD..125197903-198201

VL,RH HIGH BACK SEAT

main71150-95012iJY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN197903-198201

VL,RH LOW BACK SEAT

main71150-95013iRY30..RHD..125197903-198201

VL,RH LOW BACK SEAT

main71150-95014iJY30,RY20,3#..LHD..(15T,20T)197903-198201

VL,LH HIGH BACK SEAT

main71150-95015iRY30..LHD..125197903-198201

VL,LH HIGH BACK SEAT

main71150-95016iJY30,RY20,3#..LHD..(15T,20T)197903-198201

VL,LH LOW BACK SEAT

main71150-95017iRY30..LHD..125197903-198201

VL,LH LOW BACK SEAT

main71150-95021iJY30,LY3#,RY20,3#..RHD..ST..(15T,20T)198201-198507

VL,RH HIGH BACK SEAT

main71150-95022iJY30,LY3#,RY20,30..RHD..GEN198201-198507

VL,RH LOW BACK SEAT

main71150-95023iJY30,RY20,3#..LHD..(15T,20T)198201-198507

VL,LH HIGH BACK SEAT

main71150-95024iRY30..125198201-198507

VL,LH HIGH BACK SEAT

main71150-95025iJY30,RY20,3#..LHD..(15T,20T)198201-198507

VL,LH LOW BACK SEAT

main71150-95026iRY30..125198201-198507

VL,LH LOW BACK SEAT

main71150-95027iLY3#..CBU..ARL198201-198507

VL,RH

main71250-95010iJY30,LY20,30,RY20,3#..RHD..(15T,20T)197903-198201

VL,LH HIGH BACK SEAT

main71250-95011iRY30..RHD..125197903-198201

VL,LH HIGH BACK SEAT

main71250-95012iJY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN197903-198201

VL,LH LOW BACK SEAT

main71250-95013iRY30..RHD..125197903-198201

VL,LH LOW BACK SEAT

main71250-95014iJY30,RY20,3#..LHD..(15T,20T)197903-198201

VL,RH HIGH BACK SEAT

main71250-95015iRY30..LHD..125197903-198201

VL,RH HIGH BACK SEAT

main71250-95016iJY30,RY20,3#..LHD..(15T,20T)197903-198201

VL,RH LOW BACK SEAT

main71250-95017iRY30..LHD..125197903-198201

VL,RH LOW BACK SEAT

main71250-95020iRY30..125198201-198507

VL,RH HIGH BACK SEAT

main71250-95021iJY30,LY3#,RY20,3#..RHD..ST..(15T,20T)198201-198507

VL,LH HIGH BACK SEAT

main71250-95022iJY30,LY3#,RY20,30..RHD..GEN198201-198507

VL,LH LOW BACK SEAT

main71250-95023iJY30,RY20,3#..LHD..(15T,20T)198201-198507

VL,RH HIGH BACK SEAT

main71250-95025iJY30,RY20,3#..LHD..(15T,20T)198201-198507

VL,RH LOW BACK SEAT

main71250-95026iRY30..125198201-198507

VL,RH LOW BACK SEAT

main71250-95027iLY3#..CBU..ARL198201-198507

VL,LH

70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main58930-95011iJY30,LY20,3#,RY20,3#197903-198507

70013COVER ASSY, NO.1 SEAT CUSHION

main71071-95027iJY30,RY20,3#..LHD197903-198201

VL,LH

main71071-95028iJY30,LY20,30,RY20,3#..RHD197903-198201

VL,RH

main71071-95030iJY30,LY3#,RY20,3#..RHD198201-198507

VL,RH

main71071-95031iJY30,RY20,3#..LHD198201-198507

VL,LH

main71072-95028iJY30,LY20,30,RY20,3#..RHD197903-198201

VL,LH

main71072-95029iJY30,RY20,3#..LHD197903-198201

VL,RH

main71072-95033iJY30,LY3#,RY20,3#..RHD198201-198507

VL,LH

main71072-95034iJY30,RY20,3#..LHD198201-198507

VL,RH

70014COVER ASSY, NO.1 SEATBACK

main71073-95017iJY30,LY20,30,RY20,3#..RHD..(15T,20T)197903-198201

VL,RH HIGH BACK SEAT

main71073-95018iRY30..RHD..125197903-198201

VL,RH HIGH BACK SEAT

main71073-95019iJY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN197903-198201

VL,RH LOW BACK SEAT

main71073-95020iRY30..RHD..125197903-198201

VL,RH LOW BACK SEAT

main71073-95021iJY30,RY20,3#..LHD..(15T,20T)197903-198201

VL,LH HIGH BACK SEAT

main71073-95022iRY30..LHD..125197903-198201

VL,LH HIGH BACK SEAT

main71073-95023iJY30,RY20,3#..LHD..(15T,20T)197903-198201

VL,LH LOW BACK SEAT

main71073-95024iRY30..LHD..125197903-198201

VL,LH LOW BACK SEAT

main71073-95027iJY30,RY20,3#..LHD..(15T,20T)198201-198312

VL,RH HIGH BACK SEAT

main71073-95028iJY30,LY3#,RY20,30..RHD..GEN198201-198507

VL,RH LOW BACK SEAT

main71073-95031iJY30,RY20,3#..LHD..(15T,20T)198201-198507

VL,LH LOW BACK SEAT

main71073-95032iRY30..125198201-198507

VL,LH LOW BACK SEAT

main71073-95033iRY20,30..LHD..15T198312-198507

VL,LH HIGH BACK SEAT

main71074-95014iJY30,LY20,30,RY20,3#..RHD..(15T,20T)197903-198201

VL,LH HIGH BACK SEAT

main71074-95015iRY30..RHD..125197903-198201

VL,LH HIGH BACK SEAT

main71074-95016iJY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN197903-198201

VL,LH LOW BACK SEAT

main71074-95017iRY30..RHD..125197903-198201

VL,LH LOW BACK SEAT

main71074-95018iJY30,RY20,3#..LHD..(15T,20T)197903-198201

VL,RH HIGH BACK SEAT

main71074-95019iRY30..LHD..125197903-198201

VL,RH HIGH BACK SEAT

main71074-95020iJY30,RY20,3#..LHD..(15T,20T)197903-198201

VL,RH LOW BACK SEAT

main71074-95021iRY30..LHD..125197903-198201

VL,RH LOW BACK SEAT

main71074-95023iJY30,LY3#,RY20,3#..RHD..(15T,20T)198201-198312

VL,LH HIGH BACK SEAT

main71074-95024iLY31,RY20,31..RHD..T3198312-198507

VL,LH HIGH BACK SEAT

main71074-95025iJY30,LY3#,RY20,30..RHD..GEN198201-198507

VL,LH LOW BACK SEAT

main71074-95026iJY30,RY20,3#..LHD..(15T,20T)198201-198507

VL,RH HIGH BACK SEAT

main71074-95027iRY30..125198201-198507

VL,RH HIGH BACK SEAT

main71074-95028iJY30,RY20,3#..LHD..(15T,20T)198201-198312

VL,RH LOW BACK SEAT

main71074-95029iRY30..125198201-198507

VL,RH LOW BACK SEAT

71108HINGE SUB-ASSY, FRONT SEATBACK, UPPER RH

main71207-95011iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main71207-95014iLY3#..CBU..ARL198201-198507

main71207-95015iRY30..RHD..125197903-198201

71109HINGE SUB-ASSY, FRONT SEATBACK, UPPER LH

main71207-95011iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main71207-95014iRY30..RHD..125197903-198201

main71207-95015iLY3#..CBU..ARL198201-198507

main71208-95012iRY30..LHD..125197903-198507

71204HINGE SUB-ASSY, PASSENGER SEAT, LH

main71204-95012iJY30,LY20,3#,RY20,3#..RHD197903-198507

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18056iJY30,LY20,30,RY20,3#197903-198201

main90468-18071iJY30,LY3#,RY20,3#198201-198507

sub90468-18008

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-95012iJY30,LY20,3#,RY20,3#..RHD197903-198507

sub72110-95013

9011906061

main90119-06061

9015940206

main90159-40206

9015980012

main90159-80012

9017908039

main90179-08039

9046708067

main90467-08067

9046806045

main90468-06045

9054006004

main90540-06004

9161160816

main91611-60816

9161160820

main91611-60820

9324016012

main93240-16012

9356015016

main93560-15016

21 parts on this diagram · 4 diagrams in section
