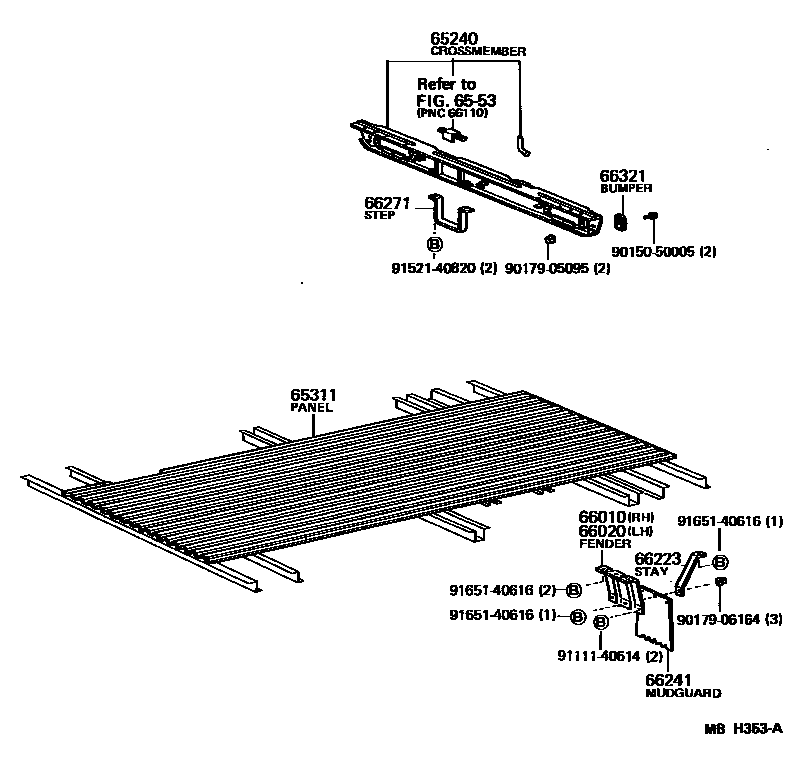

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-95027iJY30,RY31..T1..20T197903-198308

main65240-95028iLY20..CBU;RY20,3#..(T1,TW)..(125,15T)197903-198507

main65240-95030iLY30;LY20..IV;RY20,3#..T3..15T197903-198009

main65240-95031iJY30,RY31..T3..20T197903-198009

main65240-95034iLY30;LY20..IV;RY20,3#..T3..15T198009-198201

main65240-95035iJY30,RY31..T3..20T198009-198201

main65240-95036iRY30..WT198409-198507

main65240-95037iLY3#..CBU..ARL198201-198507

sub65240-25030

main65240-95039iLY3#,RY20,3#..T3..15T198201-198507

main65240-95040iJY30,RY31..T3..20T198201-198308

65311PANEL, FLOOR, CENTER

main65311-95020iJY30,RY3#..T1197903-198507

main65311-95021iRY20..T1;LY20..CBU197903-198308

main65311-95408iLY31,RY30..125197903-198507

6553

66010FENDER ASSY, REAR BODY, REAR RH

main66210-95013iRY30..WT198409-198507

main66225-95014iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

sub66205-95A01

main66233-95011iJY30,LY3#,RY20,3#..T3198210-198507

main66233-95401iLY20..IV;LY30..15T;JY30,RY20,3#..T3197903-198210

66020FENDER ASSY, REAR BODY, REAR LH

main66220-95017iRY30..WT198409-198507

main66225-95014iJY30,LY20,3#,RY20,3#..ST..(15T,20T)197903-198507

sub66205-95A01

main66234-95011iJY30,LY3#,RY20,3#..T3198210-198507

main66234-95401iLY20..IV;LY30..15T;JY30,RY20,3#..T3197903-198210

66223STAY, REAR FENDER REAR PLATE

main66222-95012×2iRY30..WT198409-198507

FR

sub66235-95011

main66223-95012×2iRY30..WT198409-198507

RR

main66223-95013×2iLY3#,RY30..125197903-198507

main66223-95014×2iJY30,RY31..T1..20T197903-198308

66241MUDGUARD, REAR

main66241-95010iRY30..WT198409-198507

RH

main66241-95600×2iJY30,LY20,3#,RY20,3#..ST..CBU197903-198507

main66246-95012iRY30..WT198409-198507

LH

66271STEP, REAR BODY

main66271-95015iJY30,RY31..T3..20T197903-198308

main66271-95017iLY20..CBU;RY20,3#..T1,T2,TW;JY30,LY30..(T1,TW)..(125,20T)197903-198507

sub66271-95A01

main66271-95018iLY20..IV;LY3#..15T;RY20,3#..T3..15T197903-198507

66321BUMPER, GATE RUBBER

main66321-95012×2iLY20..IV;LY30..15T;JY30,LY31,RY20,3#..T2,T3198009-198507

SIDE FR

main66321-95015×4iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

SIDE RR & TAIL

main66321-95406×2iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

TAIL

sub66321-37010

main66331-95010×2iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

SIDE FR

main66331-95011×2iLY30;LY20..IV;JY30,RY20,3#..T3198009-198201

TAIL

main66331-95012×2iJY30,LY3#,RY20,3#..T2,T3198201-198507

TAIL

9015050005

main90150-50005

9017905095

main90179-05095

9017906164

main90179-06164

9111140614

main91111-40614

9152140820

main91521-40820

9165140616

main91651-40616

15 parts on this diagram · 3 diagrams in section
